DETAIL 1
DETAIL 2
DETAIL 3
9 /15
3

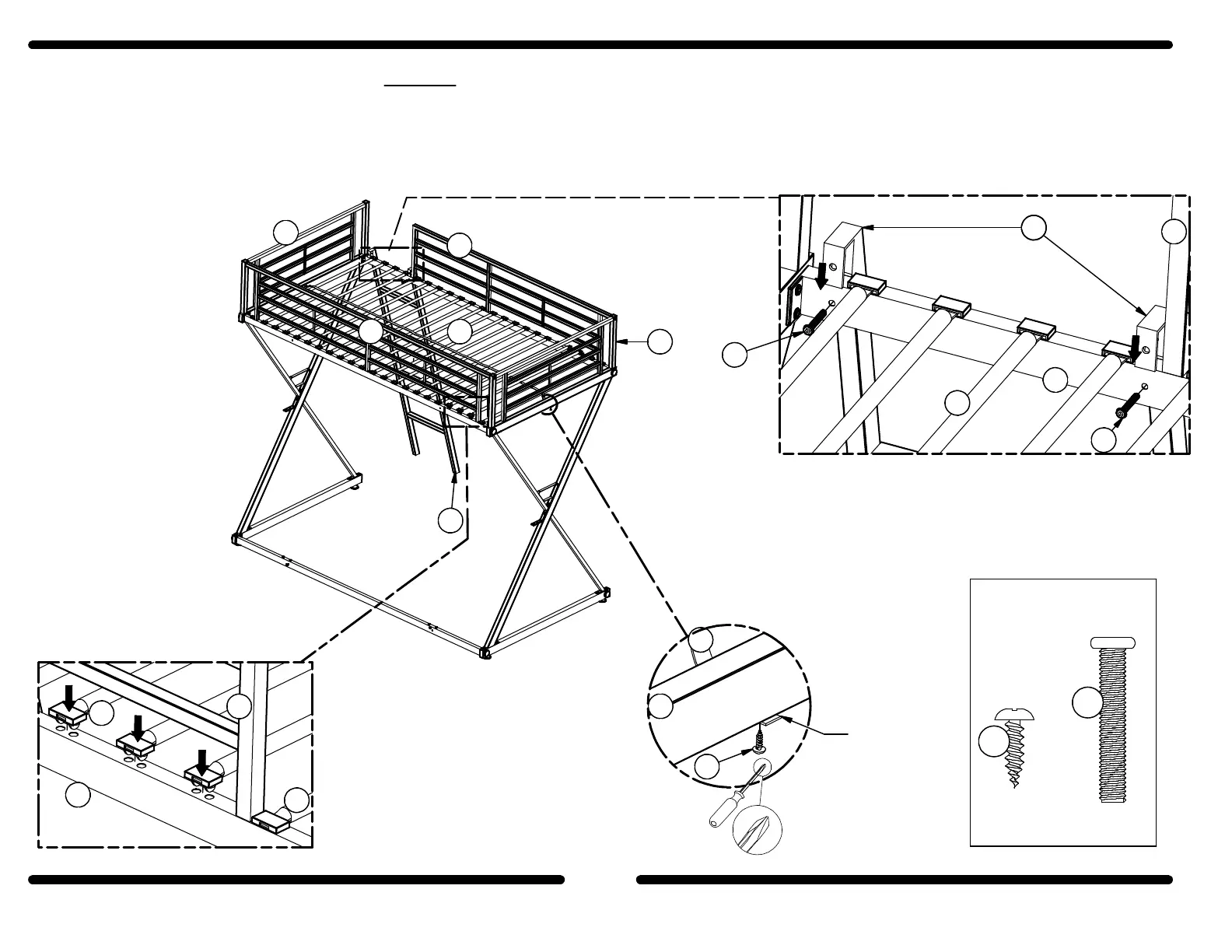

As shown in detail (1), insert, by hand, the slats (M) into the Upper Side Rails (H & G). Attach the ends of the belt (M) to the
Right & Left Guard Rails (E & F) with Screw (7), as shown in detail (2).
As shown in detail (3), attach the Ladder (R) to the Ladder Side Rail (H) with Bolts (4).
H
M
M
K
R
E
F
F
7
M
R
4
4
R
K
L
L
M
G
M
4
7
Hardware Required
x 2
x 2
Belt's End
B34544019600
To Next Page
