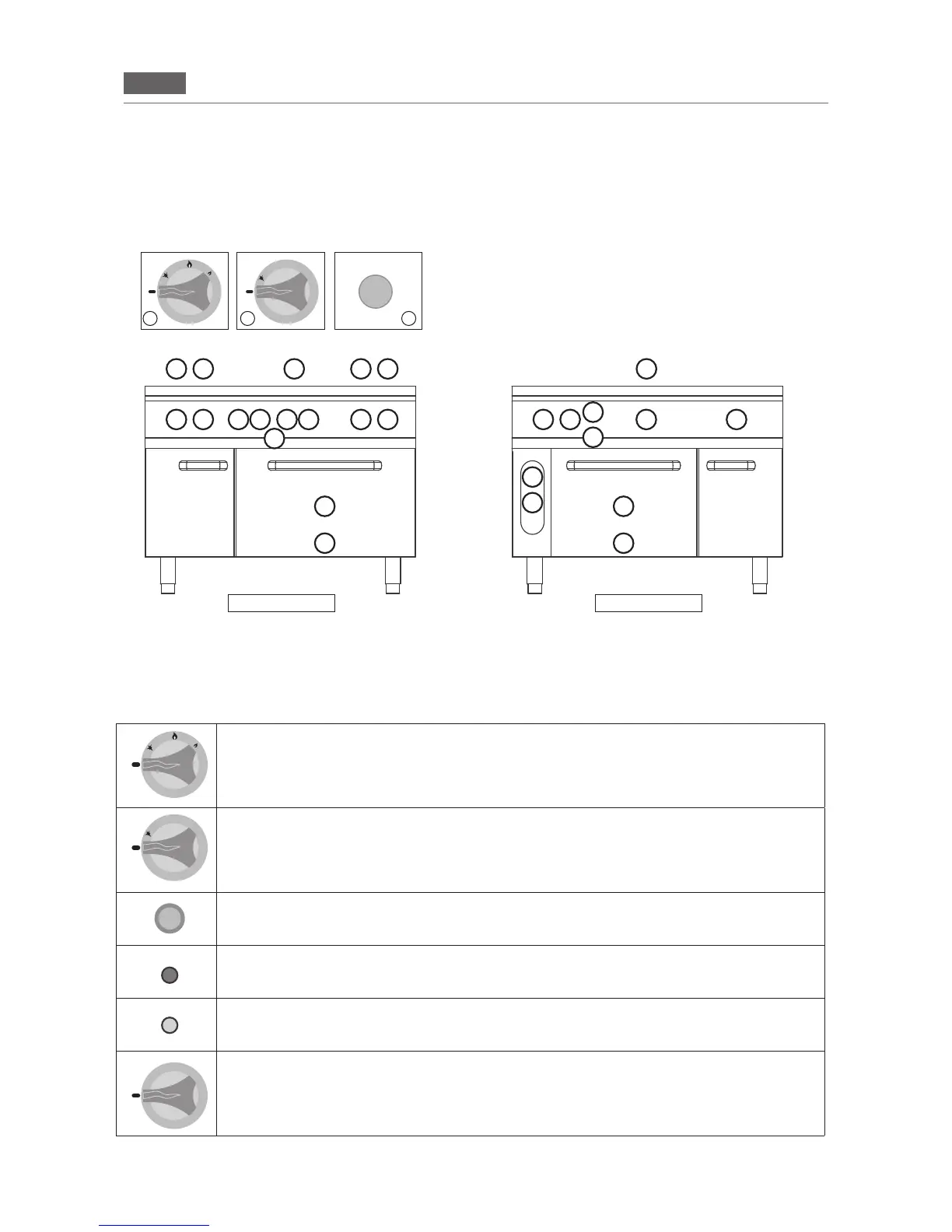

Knobs, keys and indicator light modes and functions
The layout of the keys in the gures is purely indicative and can be subject to variations.
Burner regulation knob (GAS). It performs three different functions:
1. Igniting the pilot light and burner.
2. Adjusting the ame (minimum - maximum).
3. Turning the appliance off.
Thermostat knob (GAS). It performs three different functions:
1. Igniting the pilot light and burner.
2. Temperature regulation.
3. Turning the appliance off.
Piezoelectric button (GAS). It performs one function:
1. When pressed, it produces the spark to ignite pilot light.
Green indicator light (GAS/ELECTRIC): The indicator is subordinated to use of the switch-on knob.
Lighting of the indicator signals the operating phase.
Yellow indicator light (GAS/ELECTRIC): When present, the indicator is subordinated to use of the
thermostat knob. Lighting of the indicator signals the heating phase.
Thermostat knob (ELECTRIC). It performs two different functions:
1. Temperature regulation.
2. Heating phase Start/Stop.
3
0
0
2
7
0
2
5
0
2
3
0
2
1
0
1
9
0
.
1
7
0
3
0
0
2
7
0
2
5
0
2
3
0
2
1
0
1
9
0
.
1
7
0
1 1 1 1
6 6 6 6 6
3 3
2 2
4
4
5
3
1
3
0
0
2
7
0
2
5
0
2
3
0
2
1
0
1
9
0
.
1
7
0
2
1. Open burners adjustment knob.
2. Thermostat adjustment knob.
3. Piezoelectric button.
4. Pilot light control.
5. Cooking compartment (oven).
6. Hob (gas range - hotplates).
7. Container to gather drain material.
Location of main components
The layout of the gures is purely indicative and can undergo variations.
2 3
1
1
6
2
3
4
7
4
5
