Diamond Y2-3 - Operation

Instruction Manual
N.ºMNS00054.00
3.4.2 Prolonged inactivity
If there is a prolonged period of inactivity, we recommend that you make the cleaning and maintenance described above.
4 Operation
4.1 Definitions
The blast chiller and freezer has been designed to blast chill and freeze food products and it was created to work at ISO 4 climate class (30ºC
maximum room temperature and 55% relative humidity).
4.2 Technical file
Model
Y2-3
Y2-5
Y2-7
Y2-10
Y2-14
Exterior dimensions
WxDxH
670x715x500 mm
810x830x850 mm
810x830x1070 mm
810x830x1370 mm
810x830x1750 mm
Weight
55 kg
100 kg
130 kg
150 kg
180 kg
Power supply
220-240V 1~ 50Hz
220-240V 1~ 50Hz
220-240V 1~ 50Hz
400V 3~ 50Hz
400V 3~ 50Hz
Current
3,0 A
5,0 A
6,0 A
3,6 A
4,2 A
Power consumption
0,5 kWh
1,0 kWh
1,3 kWh
2,0 kWh
2,2 kWh
Refrigerant
R404
R404
R404
R404
R404
Cooling capacity
10 kg
20 kg
30 kg
40 kg
50 kg
Freezing capacity
6 kg
14 kg
20 kg
28 kg
35 kg
GN1/1 – EN600x400
Trays capacity
3-3
5-5
7-7
10-10
14-14

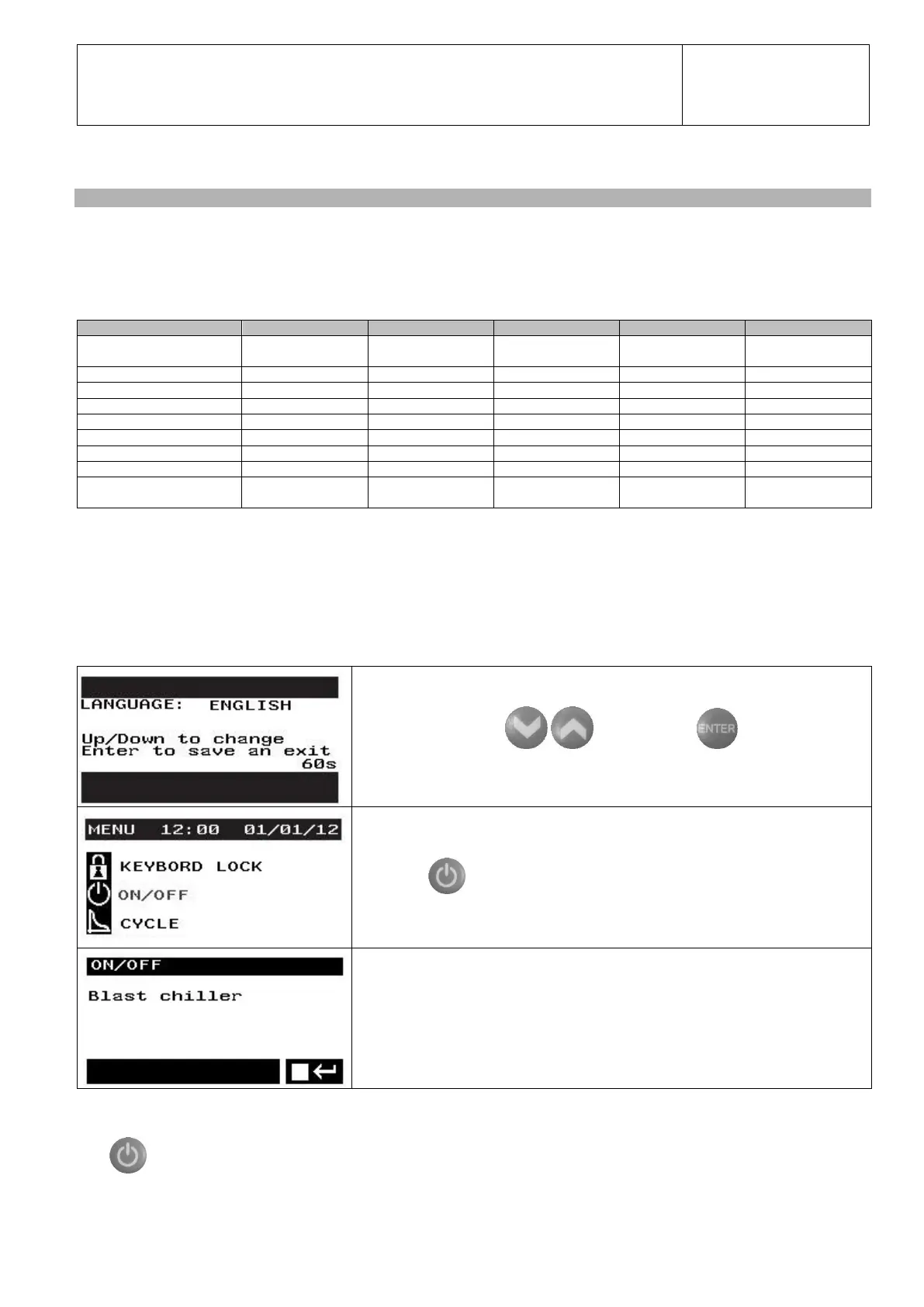

4.3 Setup
Ensure that the plug is correctly inserted into the socket and the circuit breaker is on.
4.3.1 Start-up
This procedure applies only at start-up or in case of a local power supply fault or when it is switched off.
Without pressing any key, after 60 seconds the displays shows the language in which menus are available.
Select the language using and confirm with .
Then, press .
From now on, the equipment is ready to operate. You can select one of the standard cycles
(see 4.4) or program a custom cycle.
4.3.2 Start a new cycle
This procedure applies in the normal operation of the equipment.
Press for 3 seconds;
Then, select a standard cycle (see 4.4), or a custom cycle (see 4.7) (if previously programmed), or enter the programming mode to do it.
The electronic controller allows custom cycles according to specific needs. The respective instructions are in the 4.6 paragraph of the attached
electronic controller manual.
