dicodes Dani Box Mini - Extended Functions: Menu Navigation; Extended Menu Structure (Heater, Mod, Value)

Onlyvisiblewhen
ExpertMode=1
Wraparound
(rolloverorstop
atmin/max)
Changewire
temperature
coefficientof
“Other”wire
(*1)
SetPowerLimit
(80Wmax.)
Selectheater
protectionmode
(1..10)
Selectpower
boosttime
(1..10)
Settheminimumbat
dischargelevel
(2.5..3V)
Setdisplayluminosity
(1lowto5high
brightness)
Selectautopower
offtime(1-2-5-10-15-
20-30-60minutes)
Selectnumberofclicks
togetintothemenu
(1..5).
Speedforbutton
usage(1fast..5slow).
(*2)
Selectstemperature
uniteither°Celsiusor
°Fahrenheit.
Selectdisplay
orientationbetween
LeftandRight(handed)
SelectExpertmodeto
enablepowerboost,
heaterprotectionand
bypassmode.
Switchbackallsettings
tofactorydefaults
Countsthenumberof
puffssincelastcounter
reset.
Displayspurevaping
timeinH:MM:SSsince
lastcounterreset
Energytakenfrom
batteryduringvaping
sincelastcounterreset
Displaysbattery
capcitancesincelast
counterreset(can
showbatteryquality)
Resetthecounters
above.
Totallifetimepuffs
ofmod.
Notresettable.
Totallifetimevaping
timeofmodin
HHHH:MM
Notresettable.
(*2)Setting1(fastest)upto3withoutanimation(visualshifteffect),setting4slowestwithshiftanimation
(*1)Thetemperaturecoefficientselectsthetypeofwirematerialintherange050to650:WhenTC-modeis
selected(MainmenuHCtrl=1),theusermustselectthewiretypetobeNiFe30(320,dicodeswire),Ni200(620),
Titanium(350),SS304(105,V2A),SS316(88),SS316L(92),NiFe48(480)or“Other”.Thevaluefor“Other”is
adjustedhere.Valuetoselect=Literature-value*10E5K.Example:Ni6.2E-3*1/K*10E5*K=>620
Parameterdisplay
duringvape
off/post/cont(*3)
(*3)Whentemperaturecontrolledvapingmodeisselectedandwithdiplaymode=post/cont,thecurrentvaluesof
“Power”,“Temperature”and“Wire-Resistance”canbeobserved4secondsafter/duringthevape.Inpower
mode,thebatteryvoltage,powerandresistanceisdisplayed.InBypassmodethemeasuredpowerisdisplayed.
Withdisplaymode=offnoparametersaredisplayedafterorduringthevape

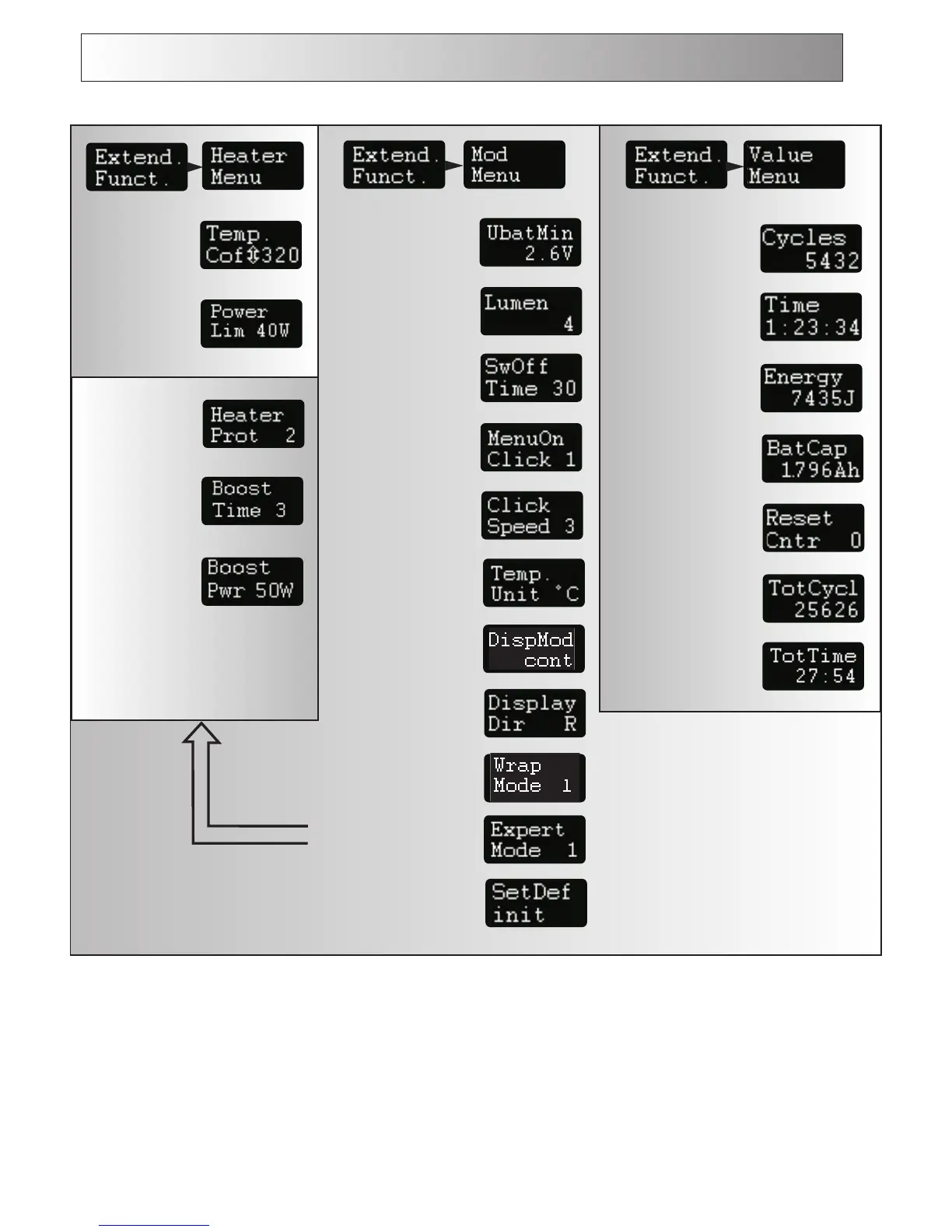

06ExtendedFunctionsMenu(Page1:Overview)
Default320
Default80W
Default6
Default3
Default2.7V
Default4
Default5min.
Default3
Default°C
Defaultcont
DefaultR
Default1
Default0
Default1
Selectpower
boostpower
(1..10)
Default50W
