1.3 Before You Start
There are certain general operating principles and terms that should be understood before continuing to use this manual.
Please read this chapter carefully before proceeding.

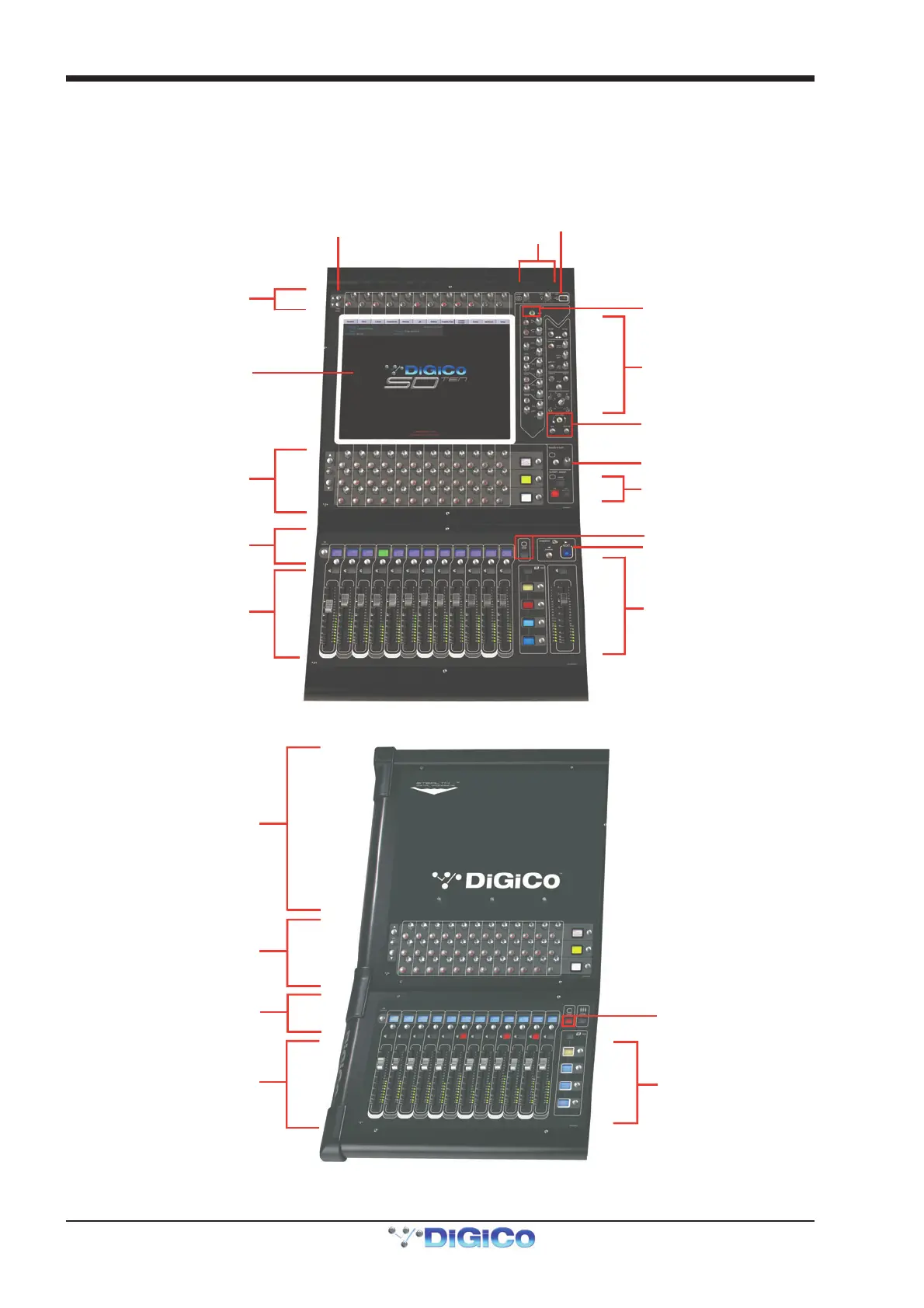

1.3.1 Worksurface Layout..............................................................
Centre Section
Input Gain and Phase
A
ssignable Rotaries and Switches
A
ux / Pan / Dynamics/FX Controls
Mute and Channel Select Buttons
Channel Faders
ALT Input Switch
Undo/Redo
2nd Function Button
Option/All Button
USB Port
Light
Controls
Assignable Rotary Scrollers
Channel Processing:
High and Low Pass Filters
4 Band Dynamic Parametric EQ
Dynamics Thresholds & On / Off
Channel Inserts A & B On/Off
Direct Out On/Off
Joystick Panning
Touch/Turn Controls
Touchscreen
Left/Right/Master Screen Assig
n
Snapshot Previous/Next
Centre Section Screen Assign
Bank Select Buttons
& Master Fader/Mute
Left Section
Laptop Area for Optional
Remote Control
A
ssignable Rotaries and Switches
Aux / Pan / Dynamics Controls
Mute and Channel Select Buttons
Channel Faders
Left Section Screen Assig
n
Bank Select Buttons
