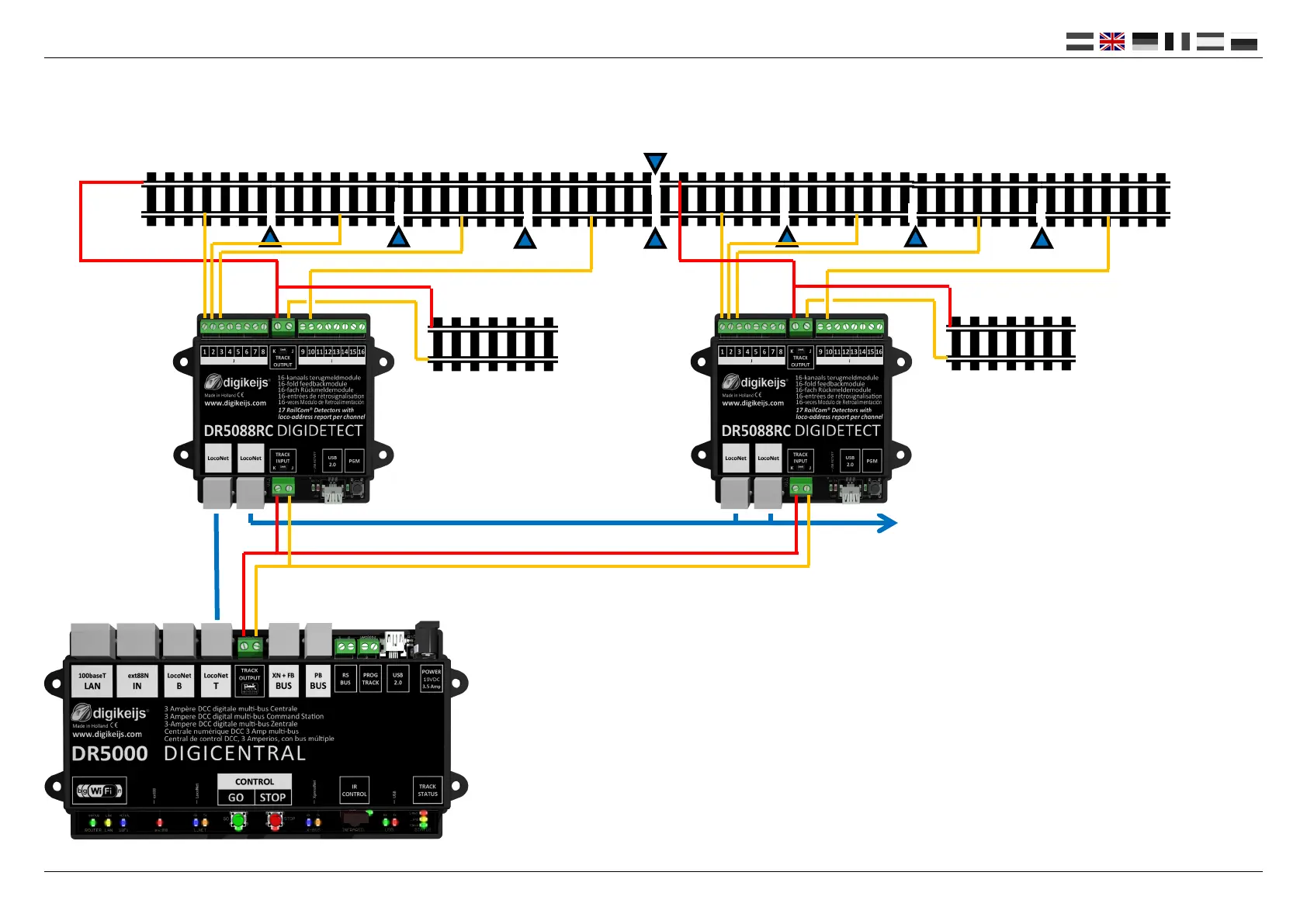

6.1 DR5088RC in combinae met de DR5000
DR5088RC in combinaon with the DR5000 control unit
In this example uses the DR5088RCs Railcom® detectors.
This DR5088RC Railcom detectors are connected via LocoNet® cables and the TRACK INPUT.
You can connect a maximum of 120 DR5088RC Railcom® detectors with 17 inputs to the
DR5000 control unit. There are maximum of 2,048 detecon points in total.
Module 1
Detector address
1 t/m 16
Module 2
Detector address
17 t/m 32
Detecon point 1
Detecon point 2
Detecon point 3 Detecon point Detecon point
Detecon point
Detecon point Detecon point
Detecon point
Detecon point
