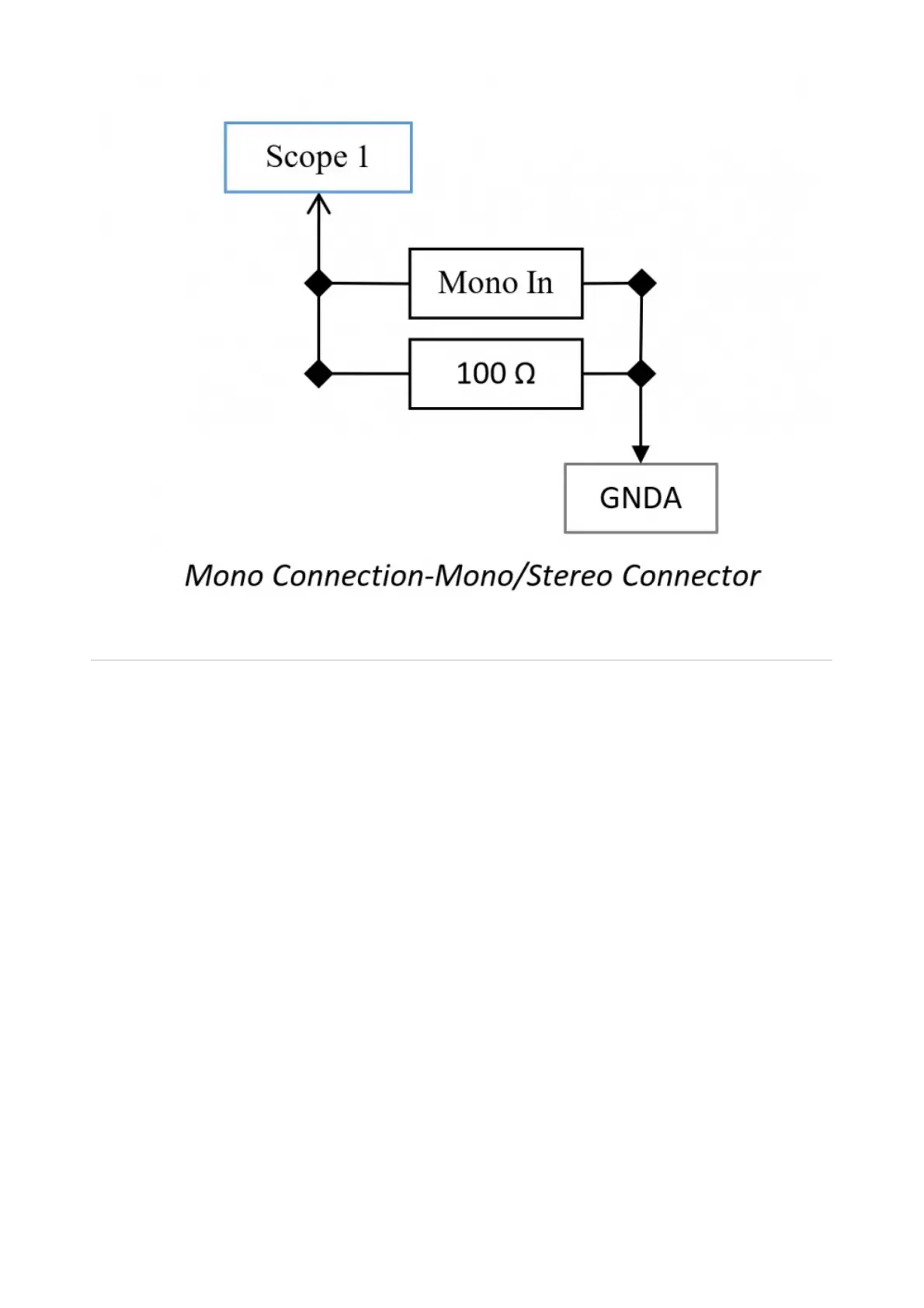

Mono connector (J4) can be used to see mono inputs. Paired with the Mono/Stereo
connector in Mono mode, gives access to two individual mono channels. The audio
channel is routed to Scope2+.
