Digiplex EVO48 - Page 43

EVO Control Panel 39

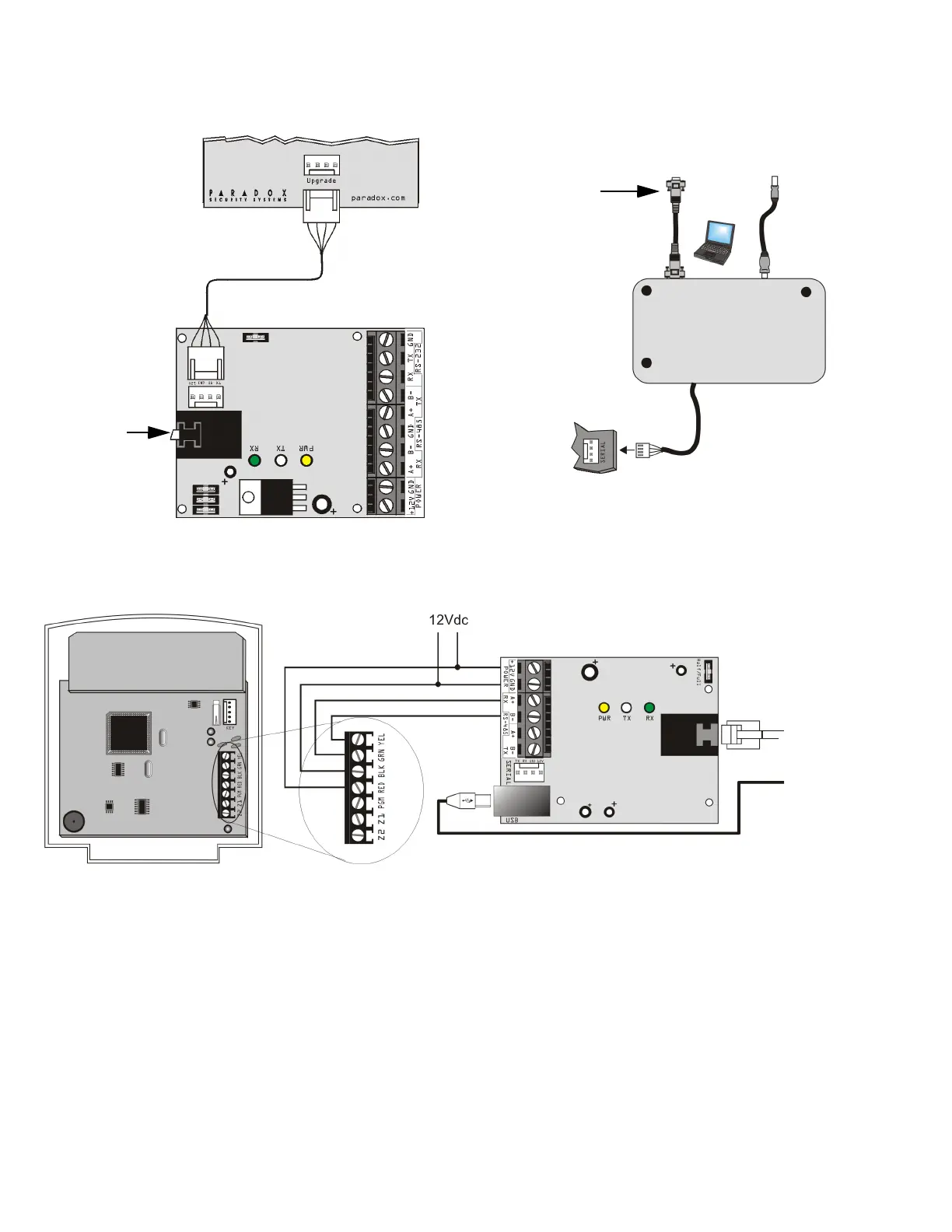

Figure 21: Upgrading Control Panels and Modules
Figure 22: Upgrading EVO641-EVO641R Keypads
To computer’s
9-pin serial
port (DB-9).
or
USB
To computer’s USB
port or 9- pin serial
port
(DB-9).
DB-9
Rx/Tx
PC LINK USB Product Link
307USB
CONV4USB
Battery or control panel AUX
To computer’s
USB port or 9-
PIN serial port
(DB-9)
OR
CONV3USB / CONV4USB
