WARNING: SHOCK HAZARD - DO NOT OPEN
MADE IN CHINA
120Vac 60 Hz 3 0W
IR REMOTE
HD Televison
DVD/VOD
2
11
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

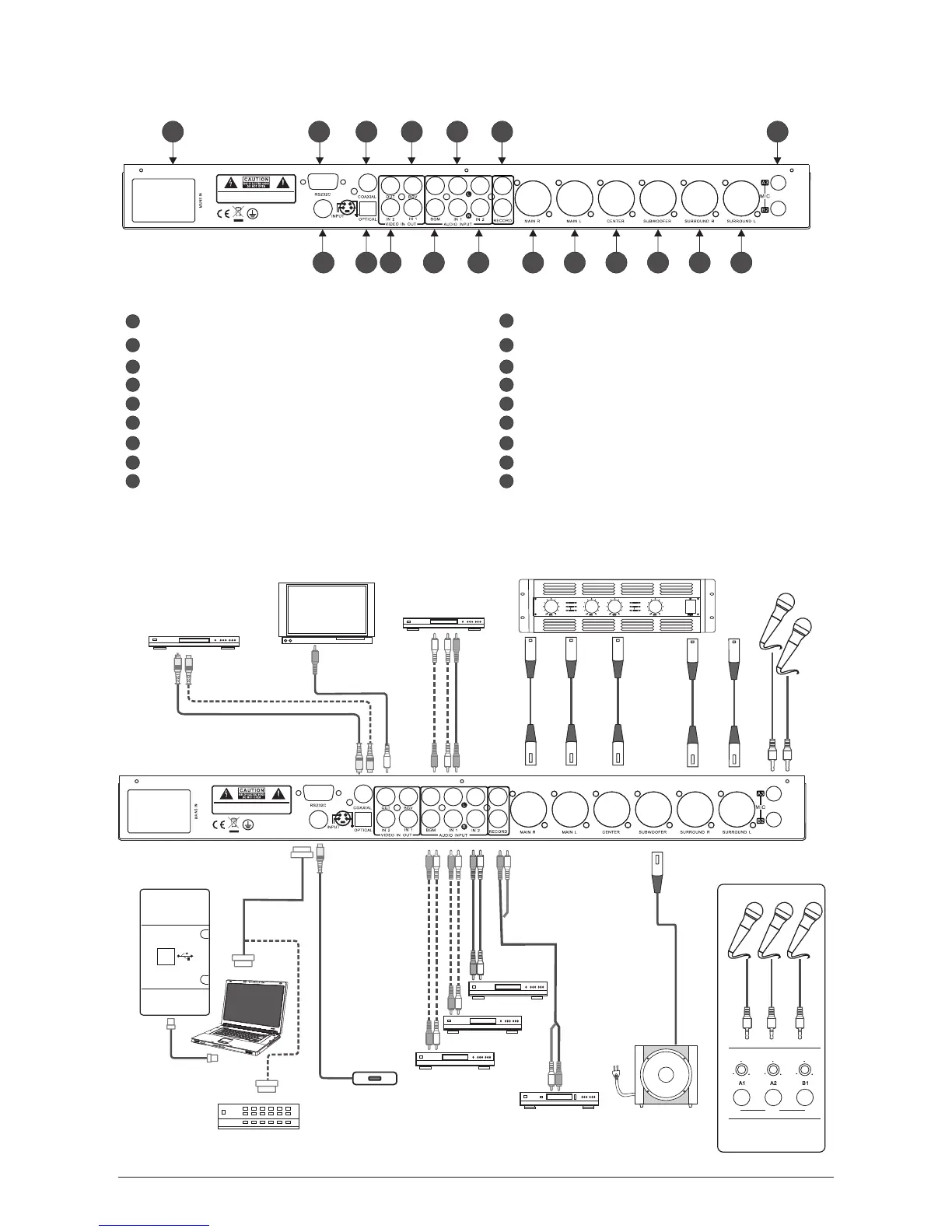

Rear panelprofile
Mains input
RS232C real-time PC control interface
S/PDIF coaxial input interface
Synchronous video output interface
3-way (background / input 1/ input 2) video input interface
Stereo Audio background input
Stereo Audio input 1
Stereo recording output interface
2 microphone input (A3 and B2) Jacks
Infrared remote port
S/PDIF optical input interface
Right channel of main output
Left channel of main output
Center output
Subwoofer output
System connection diagram
Audio source device
Optical
Coaxial
Video output
Input 1
Input 2
Background music
Main right output
Main left output
Center output
Professional power amplifier
Microphone
On-line control
IR Remote port
USB interface
PC
Central control equipment
Infrared receiver
DVD(Input connection)
VCR(Input connection)
LD/CD(Input connection)
Recording equipment
Active Subwoofer
Recording output
Background music
output 1
output 2
Subwoofer output
Microphone
MIC
Front panel
Front panel
17
18
Surround output right
Surround output left
Surround output right
Surround output left
2
9
3
5
7
10
4
86
12
13
15 16
14 17
18
/
WARNING: SHOCK HAZARD - DO NOT OPEN
MADE IN CHINA
120Vac 60 Hz 3 0W
IR REMOTE
Stereo Audio input 2
