Digital Barriers EDGEVIS IP Series - Section 1- Basic Operations of the Unit; Device Connectors

EDGEVIS HD-IP200 HARDWARE INSTALLATION
ISSUED: 17 MARCH 2022 PAGE 4
Section 1- Basic operations of the unit
The EdgeVis HD-IP200 is a small and robust device, ideally suited for use in
fixed installations for the recording and live streaming of video from a
single IP camera.
Device connectors
The HD-IP200 features integral TVI streaming using an internal 4G modem, external Wi-Fi adapter or wired LAN, and
archiving onto external SSD/HDD. The device supports the connection of one IP camera. Connectors for the HD-IP200
are shown below.

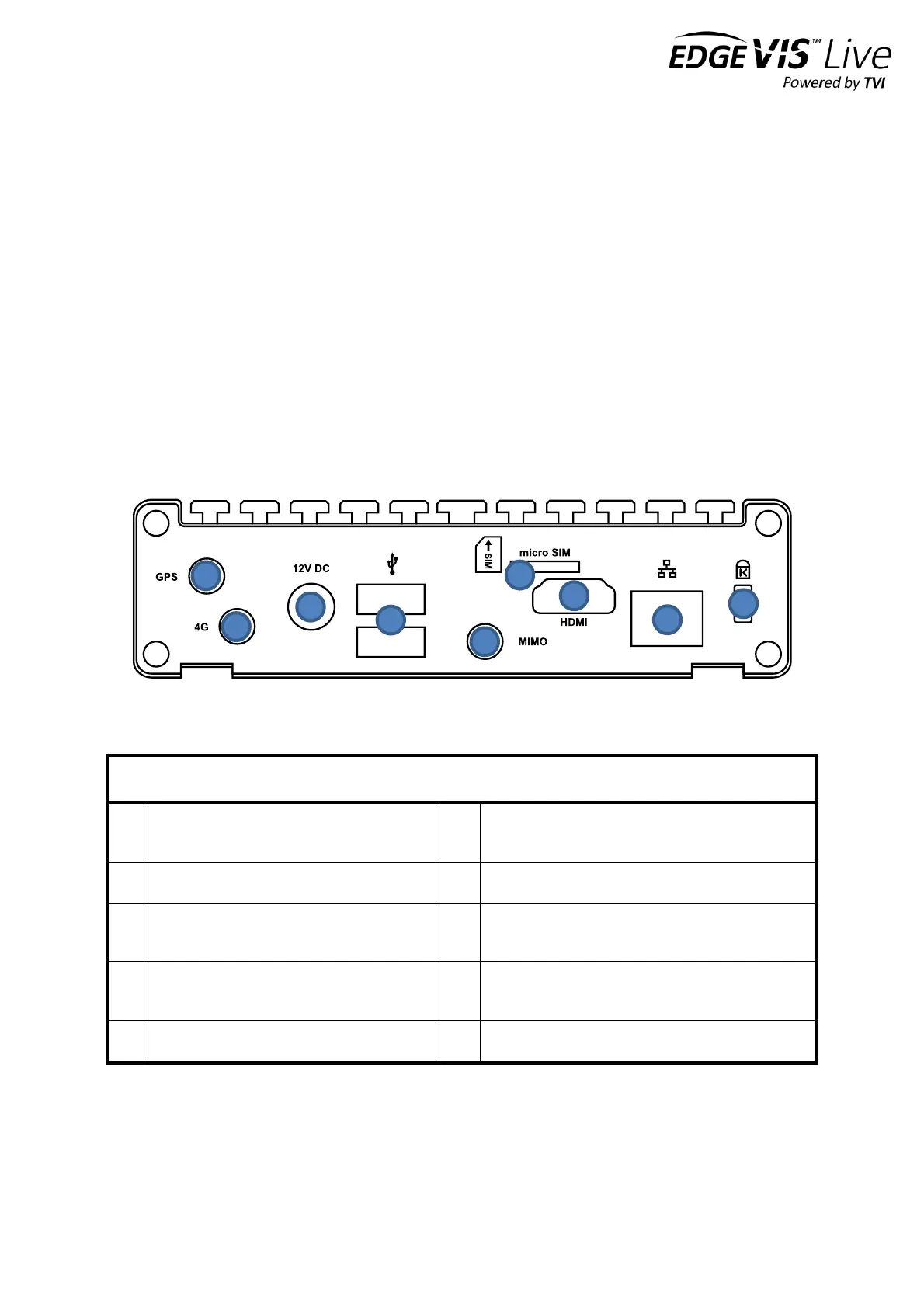

Front Panel Layout
1
GPS antenna connector. Supports active
antenna (not supplied).
6
Cellular Micro-SIM socket.
2
Cellular antenna connector.
7
HDMI video connector – not used.
3
Power input connector (12 DC)
8
LAN port (for configuration, communication and
accessing IP cameras)
4
USB 3.0 ports - for configuration, external USB
storage, Wi-Fi and additional modem support.
9
Anti-theft locking slot.
5
Cellular antenna connector.
1
2
3
4
5
6
7
8
9
