Digitax DBE600 User Manual

DigitAx User Guide
Issue code: dgxu4

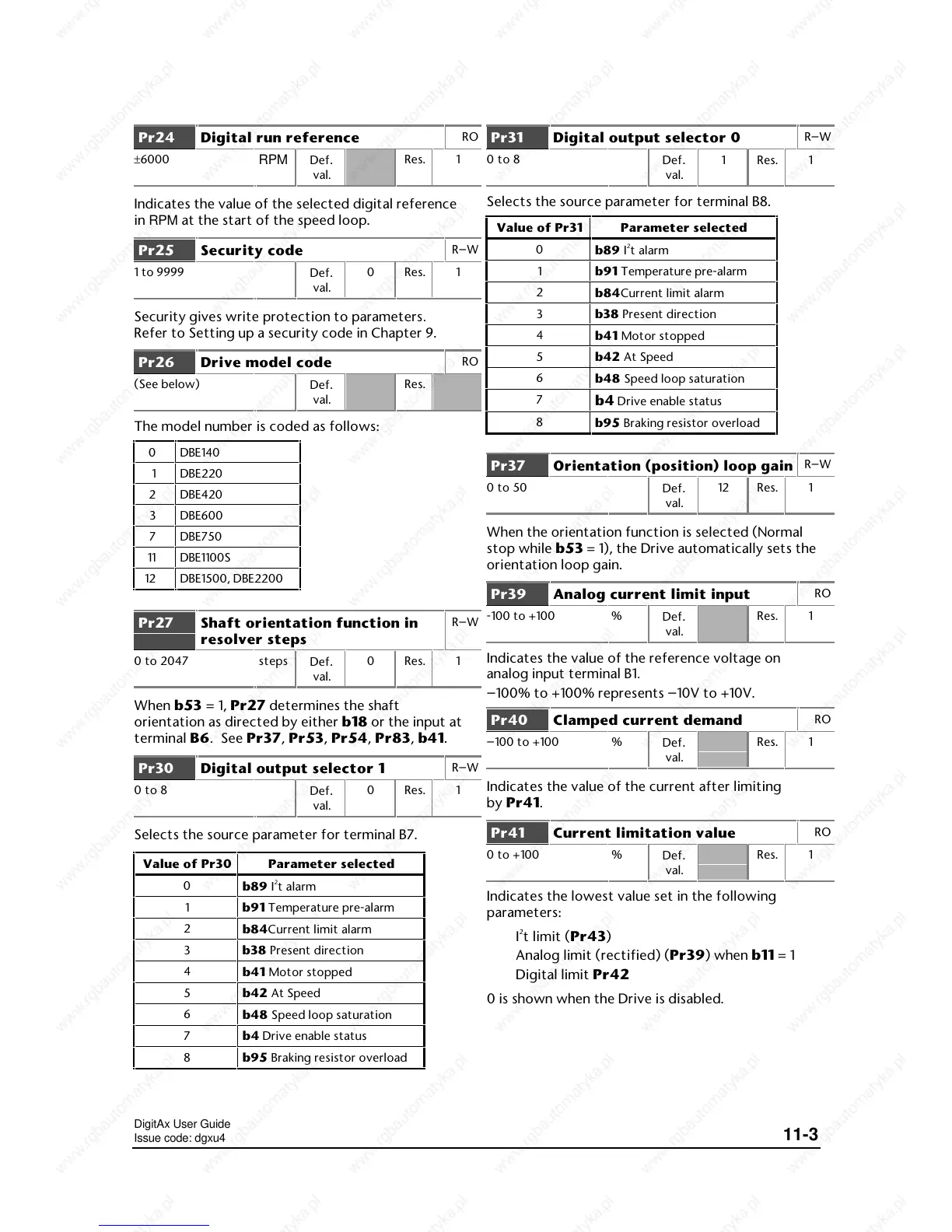

11-3
Pr24 Digital run reference
RO
±6000
RPM Def.
val.
Res. 1
Indicates the value of the selected digital reference
in RPM at the start of the speed loop.
Pr25 Security code
R–W
1 to 9999
Def
.
val.
0 Res. 1
Security gives write protection to parameters.
Refer to Setting up a security code in Chapter 9.
Pr26 Drive model code
RO
(See below)
Def
.
val.
Res.
The model number is coded as follows:
0 DBE140
1 DBE220
2 DBE420
3 DBE600
7 DBE750
11 DBE1100S
12 DBE1500, DBE2200
Pr27 Shaft orientation function in
resolver steps
R–W
0 to 2047 steps
Def
.
val.
0 Res. 1
When b53 = 1, Pr27 determines the shaft
orientation as directed by either b18 or the input at
terminal B6. See Pr37, Pr53, Pr54, Pr83, b41.
Pr30 Digital output selector 1
R–W
0 to 8
Def
.
val.
0 Res. 1
Selects the source parameter for terminal B7.
Value of Pr30 Parameter selected
0
b89 I
2
t alarm
1
b91 Temperature pre-alarm
2
b84Current limit alarm
3
b38 Present direction
4
b41 Motor stopped
5
b42 At Speed
6
b48 Speed loop saturation
7
b4 Drive enable status
8
b95 Braking resistor overload
Pr31 Digital output selector 0
R–W
0 to 8
Def
.
val.
1 Res. 1
Selects the source parameter for terminal B8.
Value of Pr31 Parameter selected
0
b89 I
2
t alarm
1
b91 Temperature pre-alarm
2
b84Current limit alarm
3
b38 Present direction
4
b41 Motor stopped
5
b42 At Speed
6
b48 Speed loop saturation
7
b4 Drive enable status
8
b95 Braking resistor overload
Pr37 Orientation (position) loop gain
R–W
0 to 50
Def
.
val.
12 Res. 1
When the orientation function is selected (Normal
stop while b53 = 1), the Drive automatically sets the
orientation loop gain.
Pr39 Analog current limit input
RO
-100 to +100 %
Def
.
val.
Res. 1
Indicates the value of the reference voltage on
analog input terminal B1.
–100% to +100% represents –10V to +10V.
Pr40 Clamped current demand
RO
–100 to +100 %
Def
.
val.
Res. 1
Indicates the value of the current after limiting
by Pr41.
Pr41 Current limitation value
RO
0 to +100 %
Def
.
val.
Res. 1
Indicates the lowest value set in the following
parameters:
I
2
t limit (Pr43)
Analog limit (rectified) (Pr39) when b11 = 1
Digital limit Pr42
0 is shown when the Drive is disabled.
