6

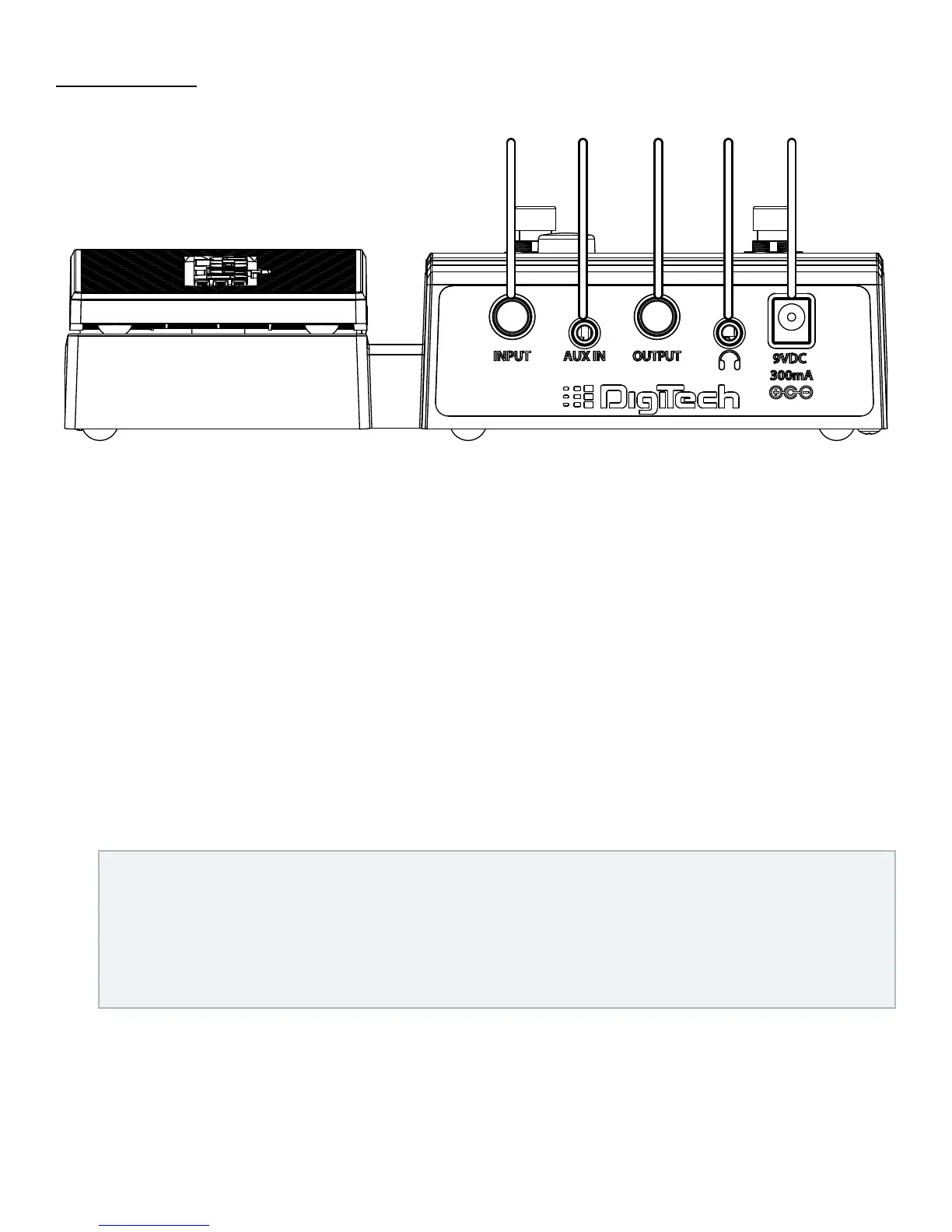

Rear Panel
2 3 4 51
1. INPUT
Connect your guitar to this high impedance 1/4” instrument input.
2. AUX IN
Using a stereo 1/8” cable, connect the headphone output of a portable music or CD player
to this 1/8” TRS jack to play along with all your favorite music. Adjust the output level of
your playback device and the Element/Element XP’s Master Level to achieve the proper mix
balance.
3. MAIN OUTPUT
This 1/4” TRS jack supports mono or stereo operation. Connect this output jack to your
guitar amplifier using a mono instrument cable or connect to stereo inputs of a mixer or
recording device using a stereo Y cable (see "Connection Diagrams" on page 8 for further
information). The Master Level controls the global level of this output.
NOTE: Mono/stereo operation for the Main and Headphone Output jacks is determined by
whether a plug is connected to the Main Output jack. If a plug is connected to this output jack,
all outputs are set to mono for amp use. If no plug is connected to this jack, all outputs default to
stereo for headphone use. This 1/4” Main Output can be forced to operate as a stereo output for
stereo setups, see "Connection Diagrams" on page 8 and "Mono/Stereo Operation" on page
21 for more information.
4. HEADPHONE OUTPUT
Connect your headphones to this 1/8” mini TRS jack. This output is optimized for use with
headphones having an impedance of 60 Ohms or less. The Master Level controls the global
level of this output.
