Digitus DA-70257 - Hardware Installation

7

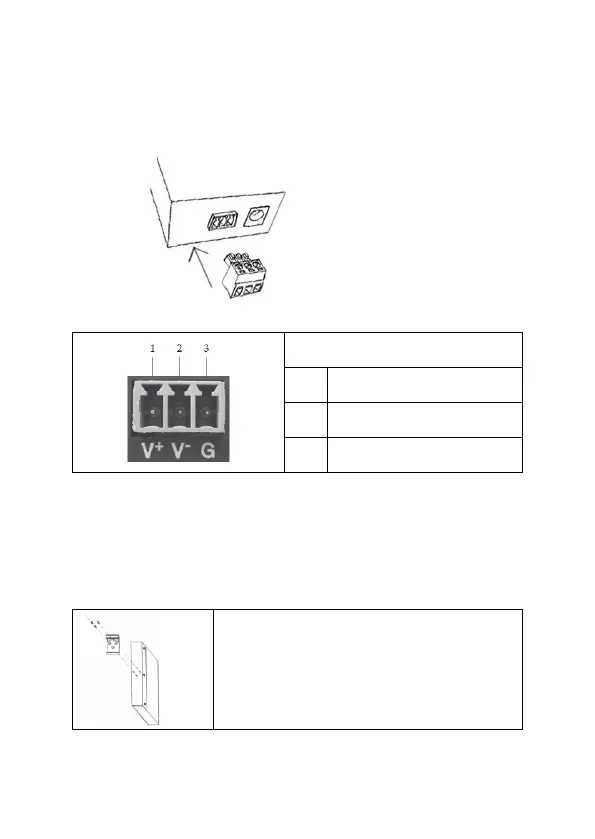

3-Pin Terminal Block
Plug the included terminal block into the hub's terminal block
connector. Refer to Pin Assignment in the next section for wiring the
power adapter (power adapter not included).
Power Terminal
Pin Assignment
Pin
1 9-24 VDC
2 GND
3 CGND
7. Hardware Installation
Mount your hub on the wall or DIN-Rail, if needed.
DIN-Rail Mounting
Use the included screws to install the DIN-
Rail kit to the hub.
