Operation instructions

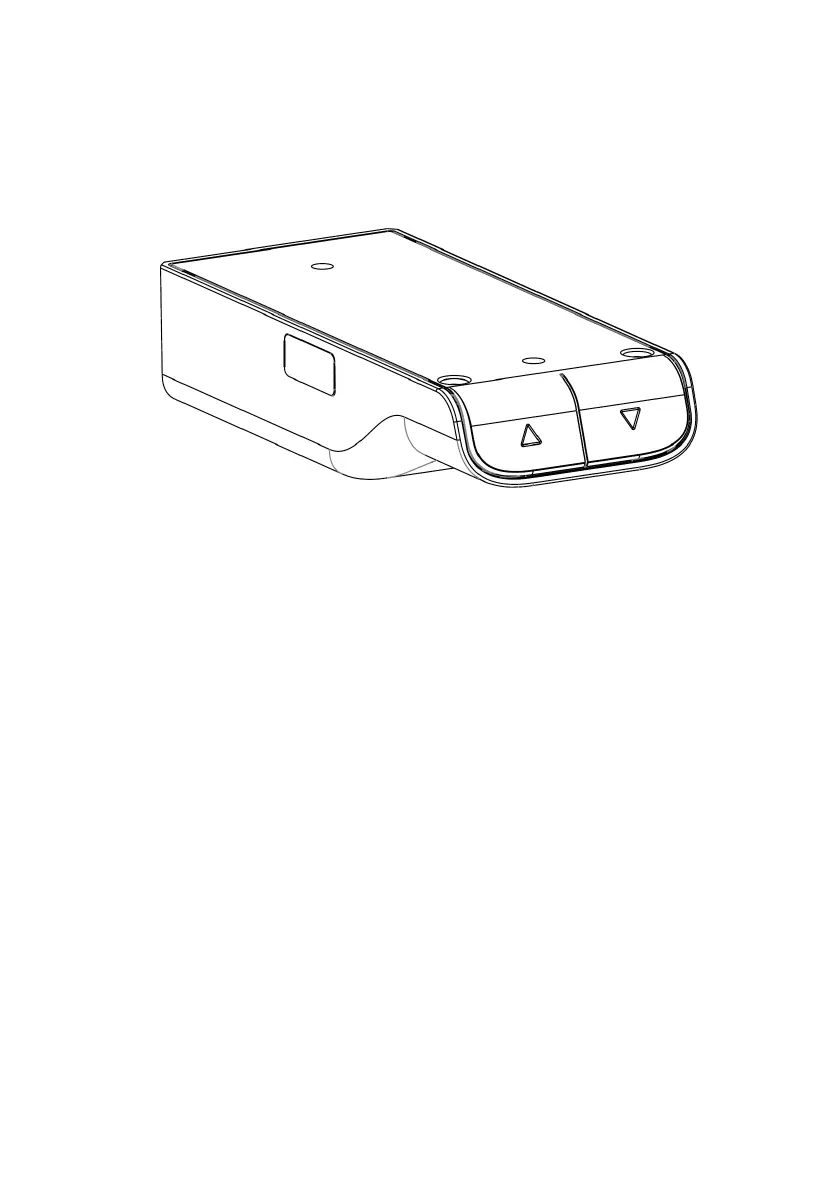

Hand switch
Product specification
• DC input:19-33VDC, 150W
• Output M1:19-33VDC, 4A
• Number of controlled motors:1 PC
• Standby power:<0.5W
• Overload protection
• Overtime protection
• Sensor anti-collision protection (first gear)
• Working frequency: Work 2 minutes, rest 18 minutes
• Hand-switch and controller are combined into one, easy to operate and install
• Two buttons, including “▲”,“▼”
1. "▲" Up button, control the standing desk to move upwards
2. "▼" Down button, control the standing desk to run down
• Related certification: CE-EMC, FCC
• Suitable for Loctek’s single motor lifting column
Lifting function
1. The height of the desk can be adjusted up or down by pressing "▲" or "▼".
2. Long press the "▲" or "▼" button for more than 1.2 seconds to enter the
automatic lifting mode, and then press any button to stop the lifting. (This
function is optional, the default software does not choose this function)
