12
Wait for about 5 minutes for the internal D.C. bus bar capacitors to be
completely discharged.

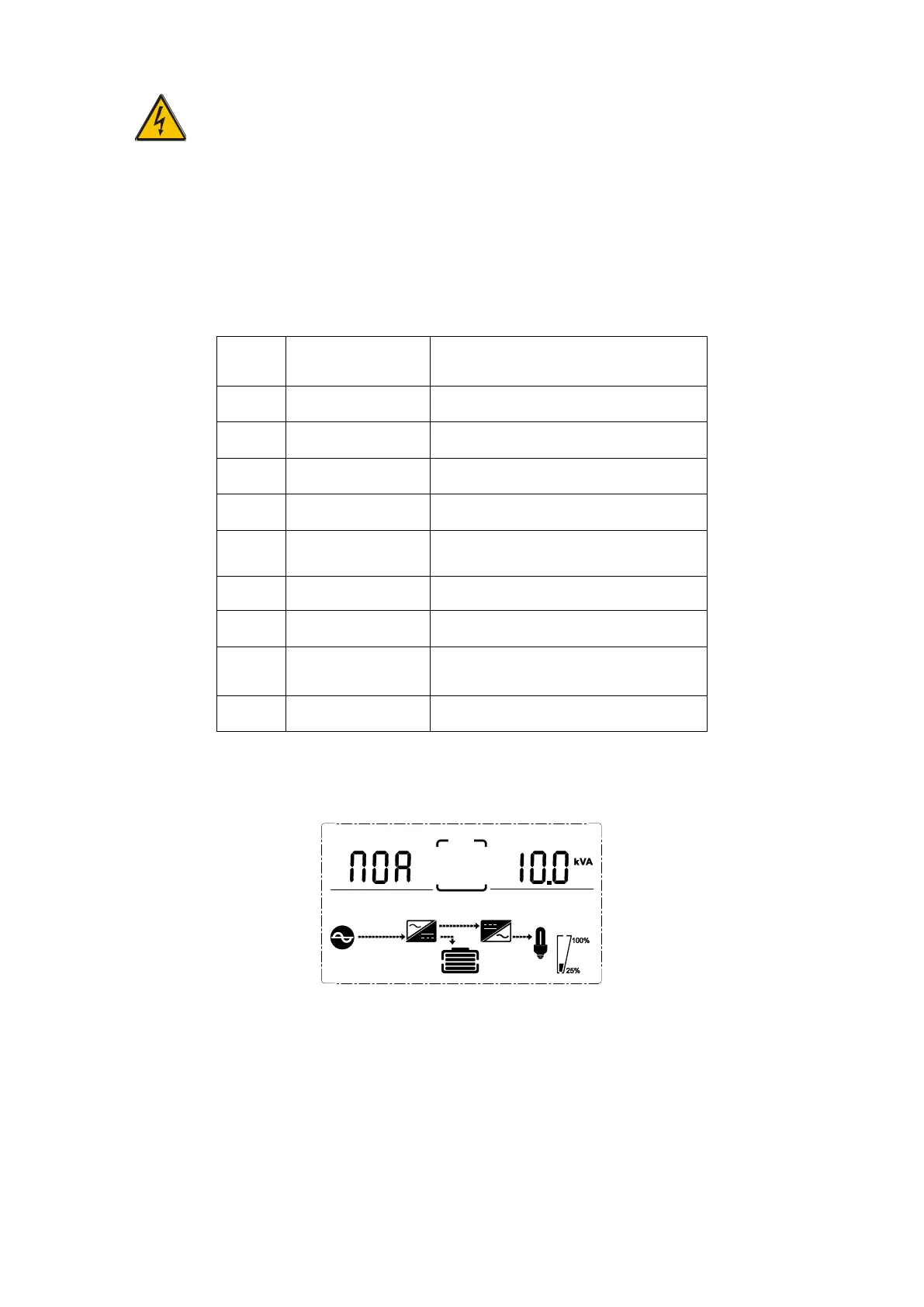

4.3 LCD Display instruction
NOTICE! The display provides more functions than those described in this manual.
There are 10 interfaces available in the LCD display:
ITEM
Content Displayed
01 Input Voltage & Frequency
02 Output Voltage & Frequency
03
Bat.﹢
Voltage & Current
04 Bat. - Voltage & Current
05 Temperature
PFC/ Internal temperature and
ambient temperature
06 Load Load
07 Bus voltage Bus voltage ±
08 Software version
DSP version of inverter software
09 Model Model
1. When the UPS is connecting with the Utility or Battery at cold start mode, it shows
as drawing below:
(1) Operational Status and mode
1) Operational Status and mode
When the UPS at single mode, it shows “NOA” or “ECO” or “CF” or “GEN” or
“SEF”, but If the UPS at parallel mode, it shows “PAL” instead
2) Press “DOWN” button, the UPS goes to next page as shown below.
To Next Page
