5
2. Assembly
2.1 Dismount the cabinet shell
Put the battery pack on a level, take off the panel, remove the battery tray top
covers and battery holder for easier battery installation and connection as
shown in Fig.2 & Fig.3

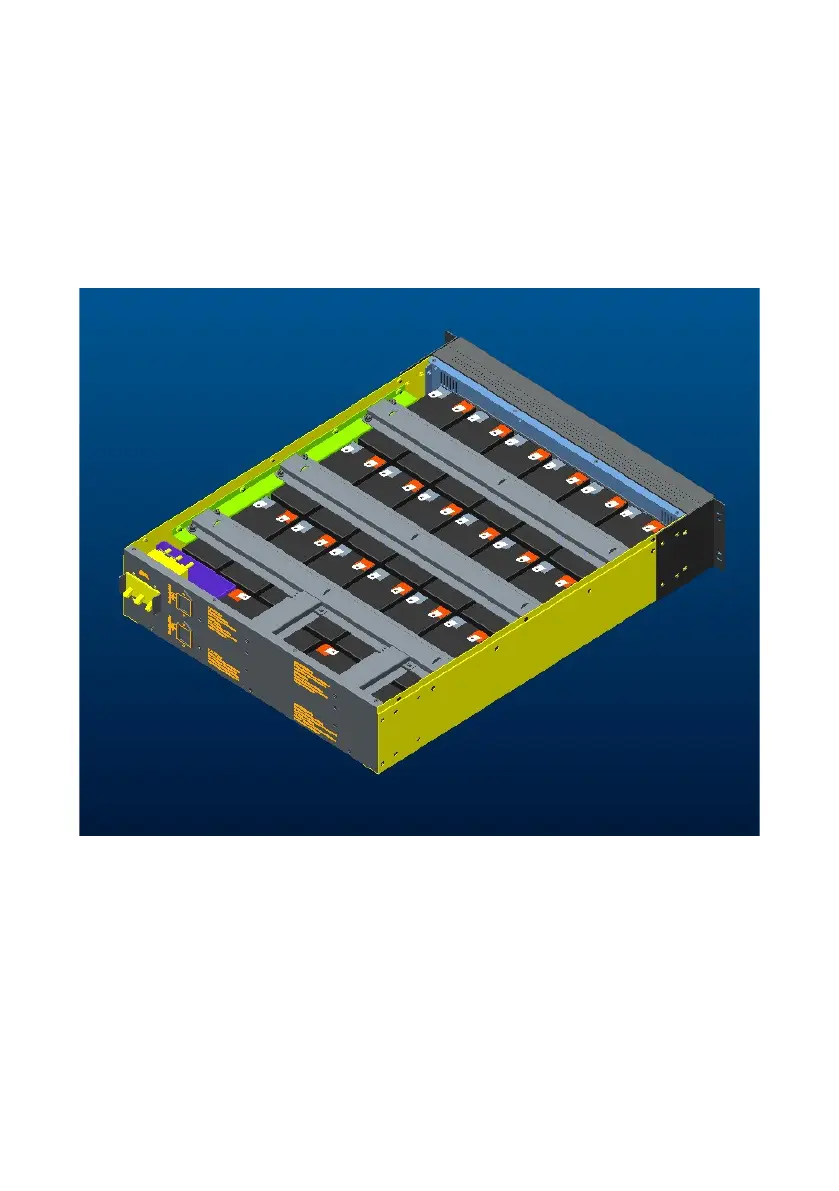

Fig.2
