2.2 Battery installation and connection
Users need 20pcs batteries, divide into 2 groups. Each group has 10pcs
batteries in series, as (BAT+, BATN, BAT-) shown below.
2.2.1 Batteries installation and connection:

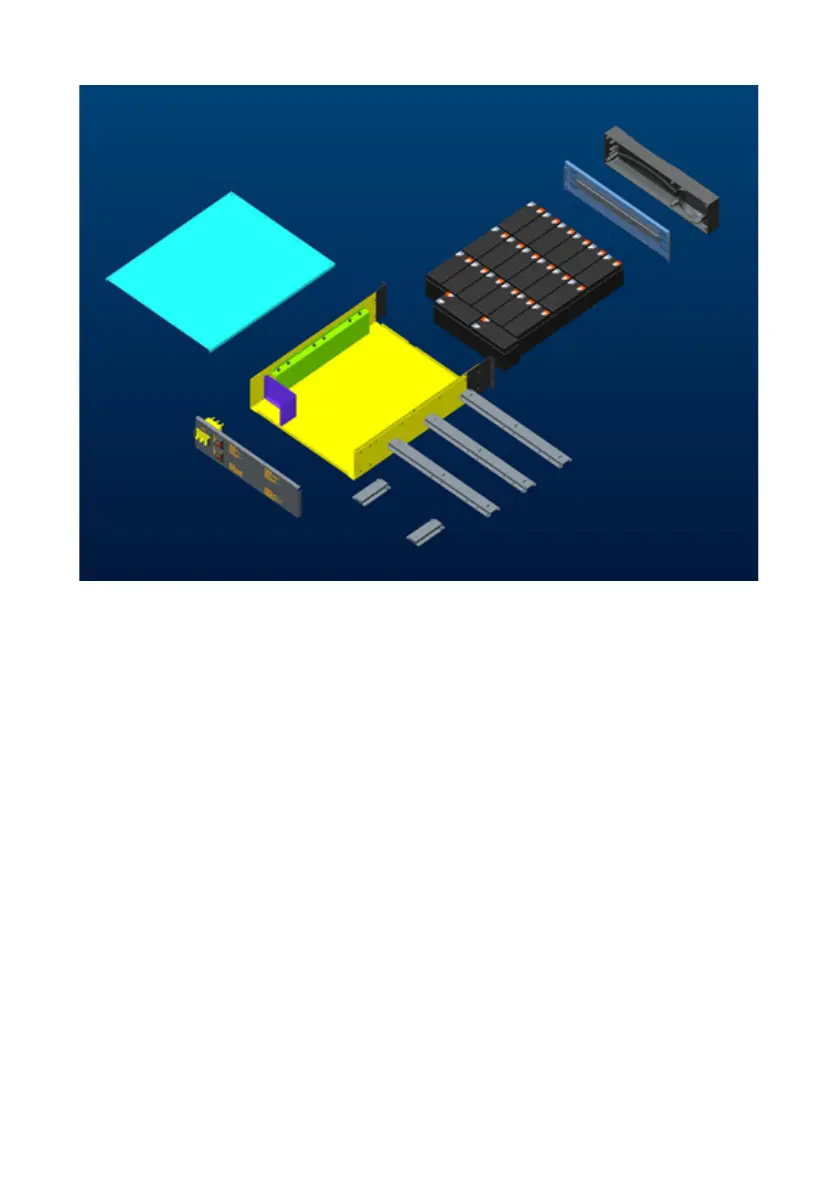

There have 20pcs batteries, then connect the batteries as shown in below
pictures.
