6.2 Rack-mountable Installation

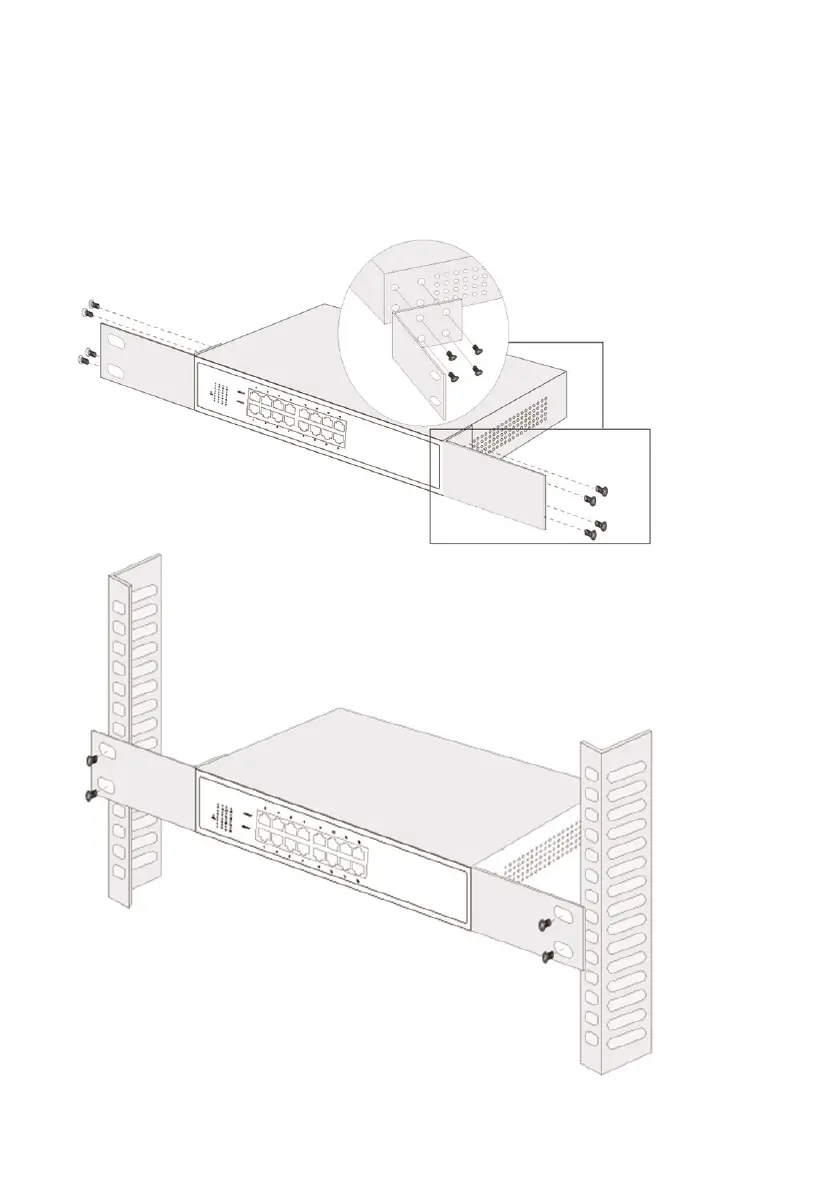

The switch is rack-mountable and can be installed on an EIA-19-inch
equipment rack. To do this, first, please install the mounting brackets on the
switch’s side panels (one on each side), secure them with the included
screws, and then use the screws provided with the equipment rack to mount
the switch on the 19-inch rack as example below.
