Hardware Description
The Front Panel
The front panel consists of LED Indications and 16/24 auto-sensing ports.
LED Indicators
Per Device: Power
Per Port: LINK/ACT (Link/Activity)

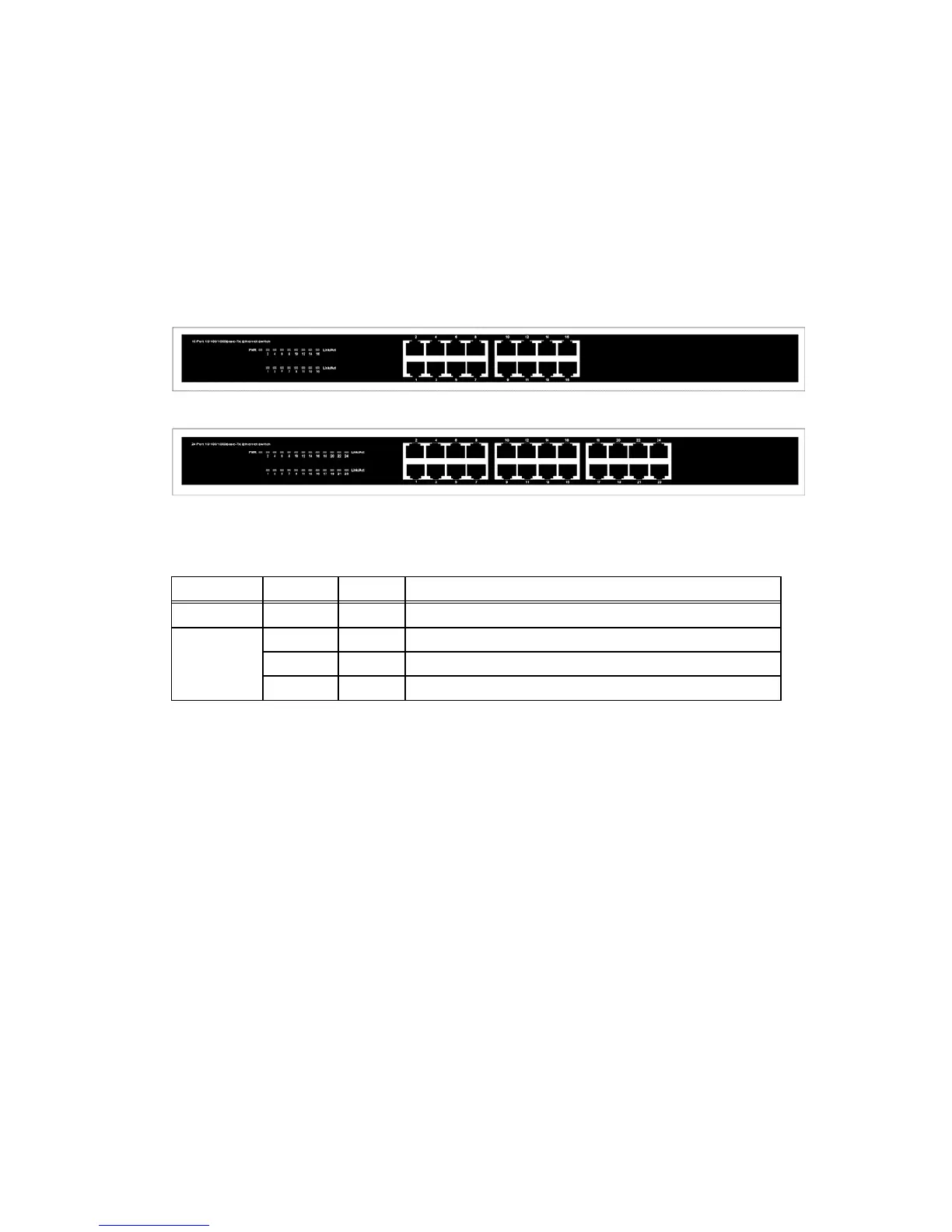

Figure 2. Front panel view of LED indications
LED Status Color Description
Power On Green The switch is supplied with suitable power.
LINK/ACT
On Green The port is connecting.
Blinks - The port is receiving or transmitting data
Off - The port is not linked successfully with the device.
RJ-45 Ports (Auto MDI/MDIX)
Auto-sensing ports of 10/100/1000 N-way for 10/100/1000-TX connections. In
general, MDI means connecting to another Hub or Switch while MDIX means
connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you
can connect to another Switch or workstation without changing pin-to-pin or
crossover cabling.
