EX MODE DIP SWITCH
EX ON Ports 1 & 2 up to 250m PoE distance. When enabled, each port
is isolated, but is linked to the uplink ports.
EX OFF Normal communication for ports 1 ~ 5
EX mode in 802.3af (15.4W):
Camera connection up to 250m@10Mbps via EXPoE ports
EX mode in 802.3at (30W):
Camera connection up to 200m@10Mbps via EXPoE ports
LED Definitions
Power Orange ON Power is on and normal
Orange Off Power is off
Link/Act Green ON Ethernet port is connected
Green Off No connection
Green blinking Data is being transmitted or received
GbE Green ON Link speed at 1000Mbps
Green Off Link speed at 10/100Mbps
PoE Orange ON Port is linked to a powered device
Orange Off No device is connected
Orange blinking Abnormal power supply is detected

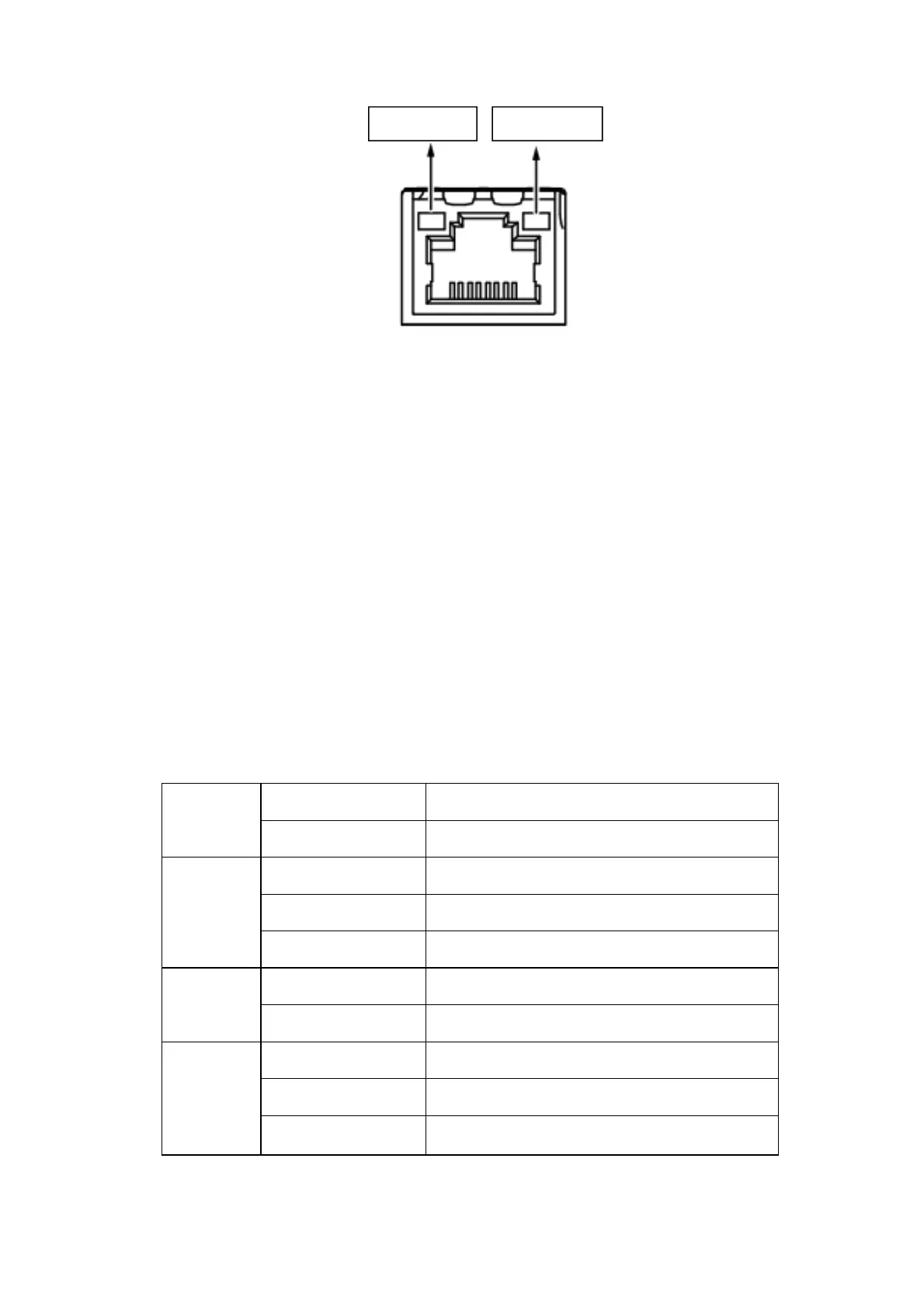

Port LED1 Port LED2
