10
Wall-mounted installation

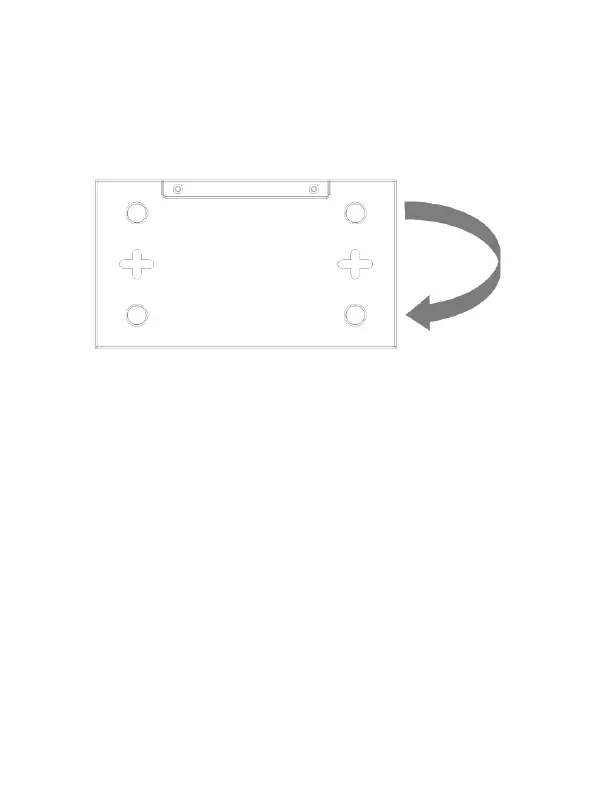

In the first two fixed screw on the wall as shown in the figure below. Aim
at the two fixed hole switches (M4 screw, nut diameter 7mm) and the
machine smoothly on the screw.
Turn on the switch
Please connect the AC power cord into the rear of the switch and to
an electrical outlet (preferably one that is grounded). When the
switch is power on, the LED indicators flash momentarily for one
second, which represents a resetting of the system. The Power LED
indicator turns on green.
Note: Please confirm the voltage is correct before power on,
otherwise the switch will be damaged.
(The power input is: 100V-240Vac, 50/60Hz)
