6
Desktop Installation

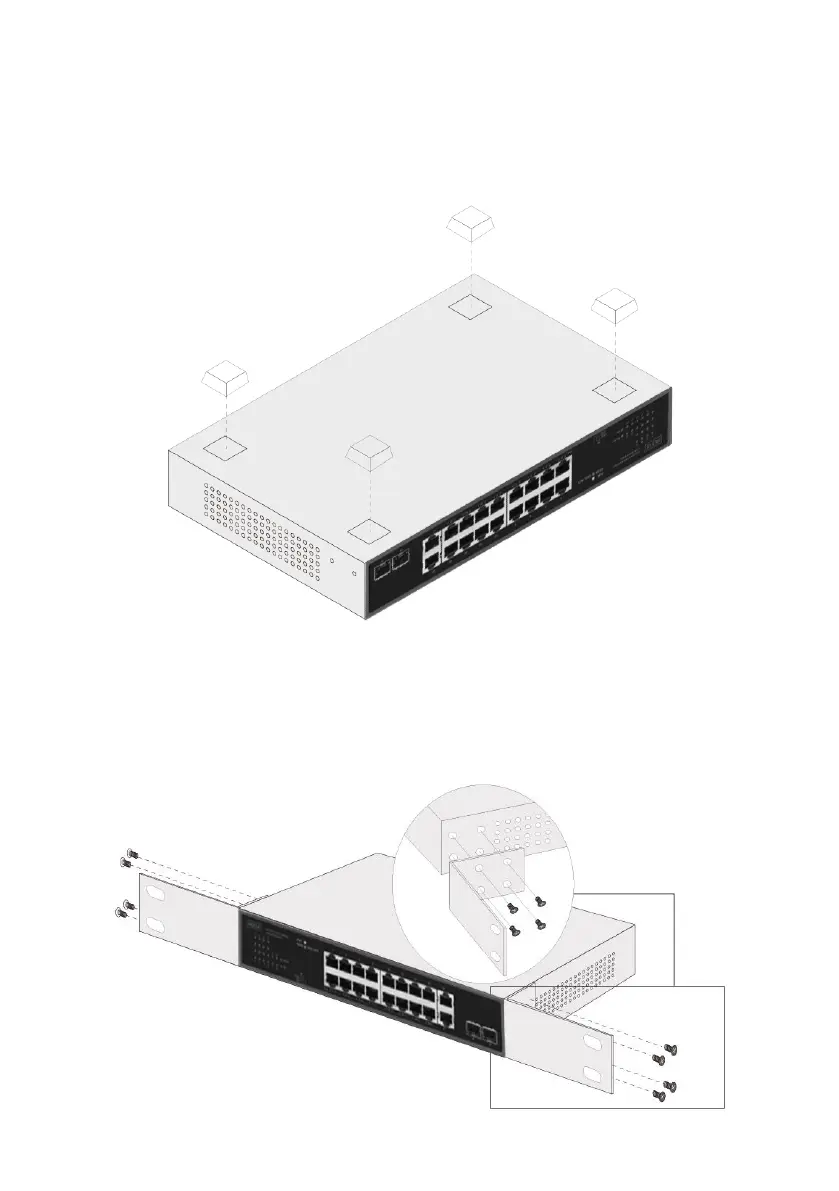

Install the Switch on a desktop, please attach these cushioning rubber feet
provided on the bottom at each corner of the Switch in case of the external
vibration. Allow adequate space for ventilation between the device and the
objects around it. The installation diagram is as follows:
Rack-mountable Installation
The switch is rack-mountable and can be installed on an EIA-11 inch equipment
rack. To do this, first, please install the mounting brackets on the switch’s side
panels (one on each side), secure them with the included screws, and then use
the screws provided with the equipment rack to mount the switch on the 11 inch
rack.
