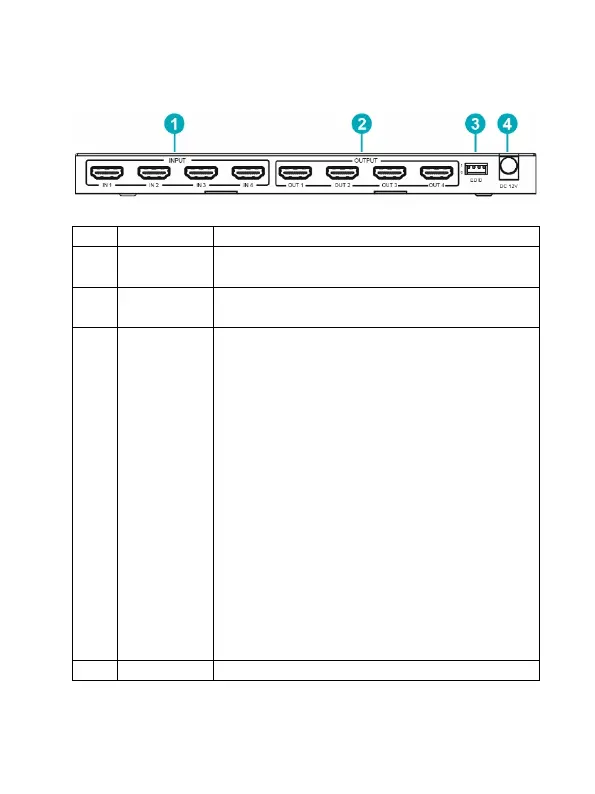

5.2. Rear Panel
No.
Name
Function Description
1
INPUT
Connect to HDMI source device such as DVD
player or PC.
2
OUTPUT
Connect to HDMI display device such as TV or
Projector.
3
EDID
EDID SWITCH control.
0000 1080P, Stereo Audio 2.0
0001 1080P, Dolby/DTS 5.1
0010 1080P, HD Audio 7.1
0011 4K2K30_444, Stereo Audio 2.0
0100 4K2K30_444, Dolby/DTS 5.1
0101 4K2K30_444, HD Audio 7.1
0110 4K2K60_444, Stereo Audio 2.0 SDR
0111 4K2K60_444, Dolby/DTS 5.1 SDR
1000 4K2K60_444, HD Audio 7.1 SDR
1001 4K2K60_444, Stereo Audio 2.0 HDR
1010 4K2K60_444, Dolby/DTS 5.1 HDR
1011 4K2K60_444, HD Audio 7.1 HDR
1100 COPY OUTPUT 1
1101 COPY OUTPUT 2
1110 COPY OUTPUT 3
1111 COPY OUTPUT 4
4
DC 12V
DC 12V power supply interface
