Mounting Instruction for SoHo 19” Wall Mounting Cabinets
DN-19 xx-U-S-1

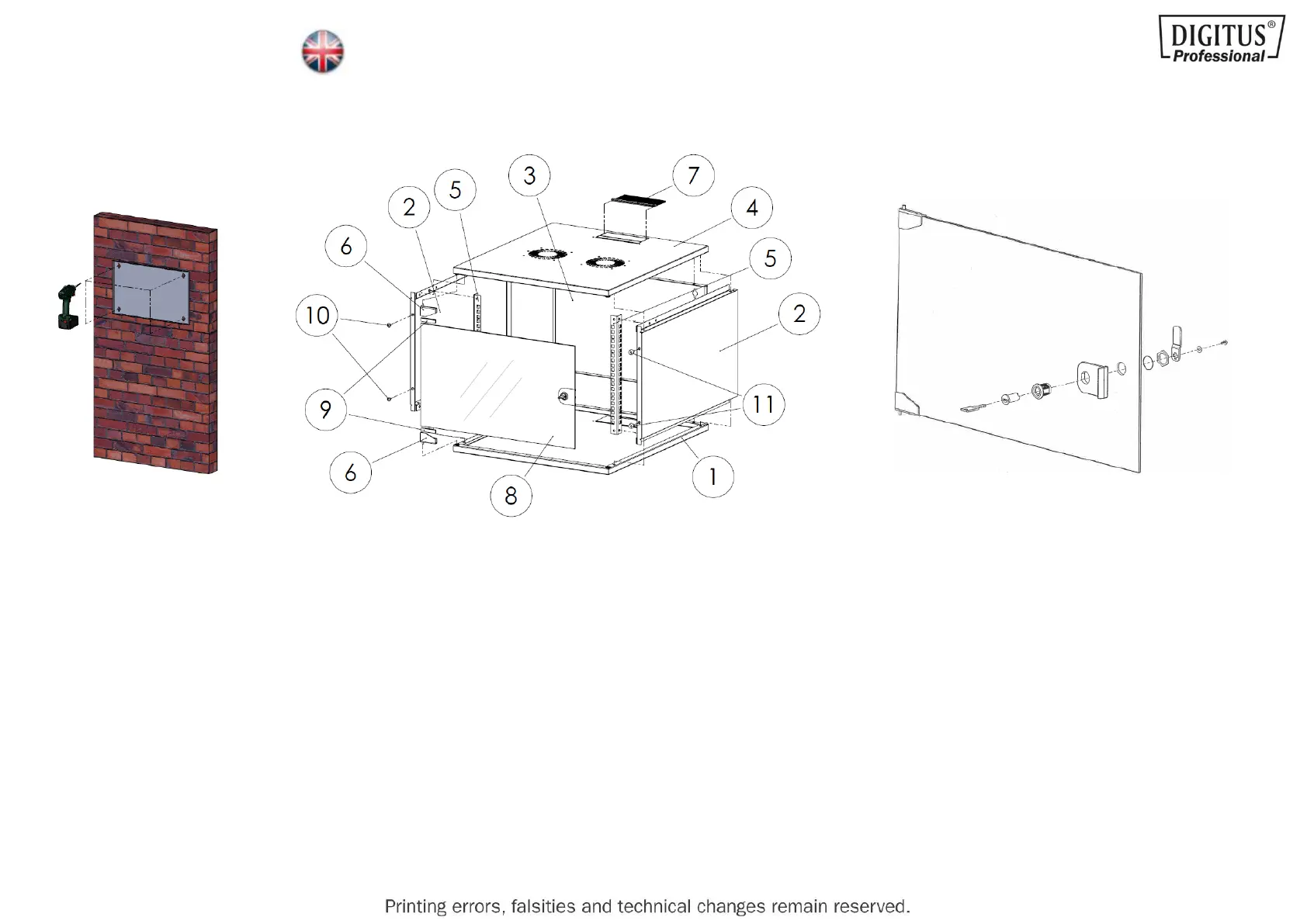

- At first use the rear panel of the cabinet as a template and mark it by putting it on the position where you will attach it to the wall. Drill and mount the dowels.
- Place the lower frame (1) on your assembly table.
- Take the plastic plugs (10) and put them in the holes of the side panel on which side you wish to have the door hinging. Take the rubber plugs (11) and put them in the holes of the side panel
which is on the lock side.
- Mount the side panels (2) on the lower frame with two pieces of M5x10 screws each.
- Mount the rear panel (3) to the lower frame with two pieces of M5x10 screws each.
- Mount the upper frame (4) to the rear and side panels with two pieces of M5x19 screws each.
- Mount the 19” profile rails (5) to the side panels with two pieces of M5x19 screws each.
- Attach the hinges (6) to the glass door (8) in a way so that the gaskets (9) will stand in the middle. Tighten the screws.
- Loosen the upper hinge (6) and place the upper and lower pins to the frame and tighten it again.
- Place the cable brush entry (7) to the upper frame.
