SUPER 1050
Manual
#11011
CALIBER CASEFEED PLATE
WINDOW
POSITION
DEFLECTOR
POSITION
MOTOR
SPEED
CALIBER CASEFEED PLATE
WINDOW
POSITION
DEFLECTOR
POSITION
MOTOR
SPEED
CALIBER CASEFEED PLATE
WINDOW
POSITION
DEFLECTOR
POSITION
MOTOR
SPEED
.30 Luger, .30
Mauser
SMALL PISTOL #3 DOWN HIGH .22 Remington Jet LARGE PISTOL #3 DOWN HIGH 7.62x54 LARGE RIFLE #1 UP LOW
.32 ACP, 7.65MM SMALL PISTOL #3 DOWN HIGH .218 Bee LARGE PISTOL #3 DOWN HIGH .30 AR LARGE RIFLE #6 DOWN HIGH
.32 Short Colt SMALL PISTOL #3 DOWN HIGH .220 Swift LARGE RIFLE #3 DOWN HIGH .30M1 Carbine SMALL RIFLE #6 DOWN HIGH
.32 S&W SMALL PISTOL #3 DOWN HIGH
.222 Remington
Magnum
SMALL RIFLE #3 DOWN HIGH .300 Blackout SMALL RIFLE #6 DOWN HIGH
.32 H&R Magnum SMALL PISTOL #3 DOWN HIGH .22-250 LARGE RIFLE #3 DOWN HIGH
.300 Wby./Win.
Mag.
MAGNUM RIFLE #1 UP LOW
.327 Federal
Magnum
SMALL PISTOL #3 DOWN HIGH .25-20 Winchester SMALL PISTOL #3 DOWN HIGH .300 WSM/RSAUM MAGNUM RIFLE #3 UP LOW
7mm TCU SMALL PISTOL #3 DOWN HIGH
.223
Win./5.56x45mm
SMALL RIFLE #3 DOWN HIGH
.300 Rem. Ultra
Mag.
MAGNUM RIFLE #1 UP LOW
9mm, 9x21, .38
Super
SMALL PISTOL #3 DOWN HIGH .223 WSSM LARGE RIFLE #3 DOWN HIGH
.300H&H/.308
Norma Mag.
MAGNUM RIFLE #1 UP LOW
9x18 Makarov SMALL PISTOL #3 DOWN HIGH .224 Wby. Mag. SMALL RIFLE #3 DOWN HIGH .32-20 Winchester SMALL PISTOL #3 DOWN HIGH
9x25 Dillon SMALL PISTOL #3 DOWN HIGH .243 Win.,6mm Rem. LARGE RIFLE #3 DOWN HIGH .303 British LARGE RIFLE #1 UP LOW
.380 ACP SMALL PISTOL #3 DOWN HIGH .243 WSSM LARGE RIFLE #4 DOWN HIGH .30-30 Winchester LARGE RIFLE #1 UP LOW
.38 Super Comp SMALL PISTOL #3 DOWN HIGH .25-06, .257 Roberts LARGE RIFLE #3 DOWN HIGH .308 Marlin Express LARGE RIFLE #1 UP LOW
.38 Special, LARGE PISTOL #3 DOWN HIGH .25 WSSM LARGE RIFLE #4 DOWN HIGH .308 Win. LARGE RIFLE #1 UP LOW
.357 Magnum LARGE PISTOL* #3 DOWN HIGH .256 Win. Mag. LARGE PISTOL #3 DOWN HIGH .30-06 LARGE RIFLE #1 UP LOW
.357 SIG LARGE PISTOL #3 DOWN HIGH .257 Ack. Imp. LARGE RIFLE #3 DOWN HIGH .30 T/C LARGE RIFLE #1 UP LOW
10mm LARGE PISTOL #3 DOWN HIGH .257 Wby. Mag. LARGE RIFLE #3 DOWN HIGH .325 WSM MAGNUM RIFLE #4 UP LOW
.40 S&W LARGE PISTOL #3 DOWN HIGH 6.5 Creedmoor LARGE RIFLE #5 DOWN HIGH .338 Win., .340 Wby. MAGNUM RIFLE #1 UP LOW
.41 Mag. LARGE PISTOL #3 DOWN HIGH 6.5 Grendel SMALL RIFLE #6 DOWN HIGH
.338 Rem. Ultra
Mag.
MAGNUM RIFLE #1 UP LOW
.44 Special, .44
Magnum
LARGE PISTOL #3 DOWN HIGH 6.5 Rem. Mag. LARGE RIFLE #3 DOWN HIGH .350 Rem. Mag. LARGE RIFLE #1 UP LOW
.45 ACP LARGE PISTOL #3 DOWN HIGH 6.5x55 LARGE RIFLE #3 DOWN HIGH 8x57 Mauser LARGE RIFLE #1 UP LOW
.45 GAP LARGE PISTOL #3 DOWN HIGH .264 Win. Mag. LARGE RIFLE #3 DOWN HIGH .375 H&H Mag. MAGNUM RIFLE #1 UP LOW
.45 Auto Rim LARGE PISTOL #3 DOWN HIGH 6.8mm SPC SMALL RIFLE #6 DOWN HIGH
.375 Rem. Ultra
Mag.
MAGNUM RIFLE #1 UP LOW
.45 Colt/S&W, .454
Casull
LARGE PISTOL #3 DOWN HIGH 7mm TCU SMALL RIFLE #3 DOWN HIGH .38-40 Win. LARGE PISTOL #3 DOWN HIGH
.45 Win. Mag. LARGE PISTOL #3 DOWN HIGH .270 Winchester LARGE RIFLE #1 UP LOW .444 Marlin LARGE RIFLE #1 DOWN HIGH
.460 S&W LARGE PISTOL #3 DOWN HIGH .270 Wby. Mag. LARGE RIFLE #1 UP LOW .44-40 Win. LARGE PISTOL #3 DOWN HIGH
.475 Linebaugh, .480
Ruger
LARGE PISTOL #3 DOWN HIGH 7mm Dakoa MAGNUM RIFLE #1 UP LOW .458 Bushmaster LARGE RIFLE #6 DOWN HIGH
.500 S&W Magnum LARGE RIFLE #6 DOWN HIGH
7mm Rem./Wby.
Mag.
MAGNUM RIFLE #1 UP LOW .458 SOCOM LARGE RIFLE #6 DOWN HIGH
.50 AE LARGE PISTOL #3 DOWN HIGH 7mm. Ult. Mag. MAGNUM RIFLE #1 UP LOW .458 Win. Mag. MAGNUM RIFLE #1 UP HIGH
.17 Remington SMALL RIFLE #3 DOWN HIGH 7mm Rem. SAUM MAGNUM RIFLE #1 UP LOW .45-70 Government MAGNUM RIFLE #1 DOWN HIGH
.204 Ruger SMALL RIFLE #3 DOWN HIGH 7MM STW MAGNUM RIFLE #1 UP LOW
.221 Remington
Fireball
SMALL RIFLE #3 DOWN HIGH
7mm WSM, .270
WSM
MAGNUM RIFLE #1 UP LOW
.22 Hornet SMALL PISTOL #3 DOWN HIGH 7.62x39 LARGE RIFLE #6 DOWN HIGH
ITEMS WITH "*" REQUIRE THE SPACER WASHER (PART# 13703) BETWEEN THE CLUTCH AND PLATE
Casefeed Plate Selection,
Casefeed Window Cuff Position and
Case Deflector Block Adjustment Chart
The chart below outlines the recommended casefeed plate and starting positions
for the casefeed window opening position and case deflector block position.
Adjustment to the window position and case deflector may be necessary dependent
upon the variation of your setup.

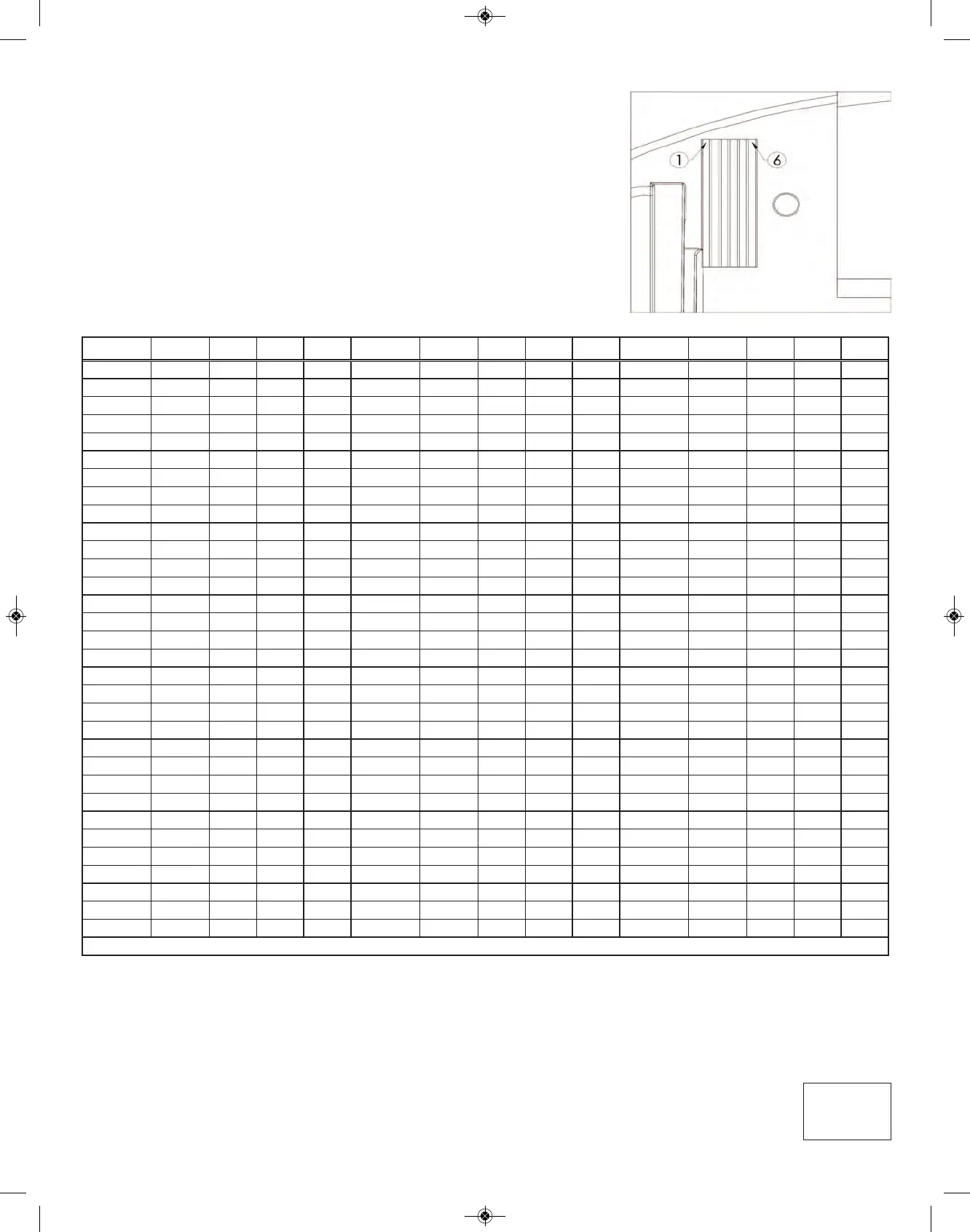

The illustration at right shows the casefeed window opening positions from 1 to 6
as listed below. Please see page 23 for more information about adjusting the casefeed
window opening and case deflector block.
