- 15 -
7. Place the heater in its fi nal position and mark the fi xing holes through the location holes visible through the back
of the heater.

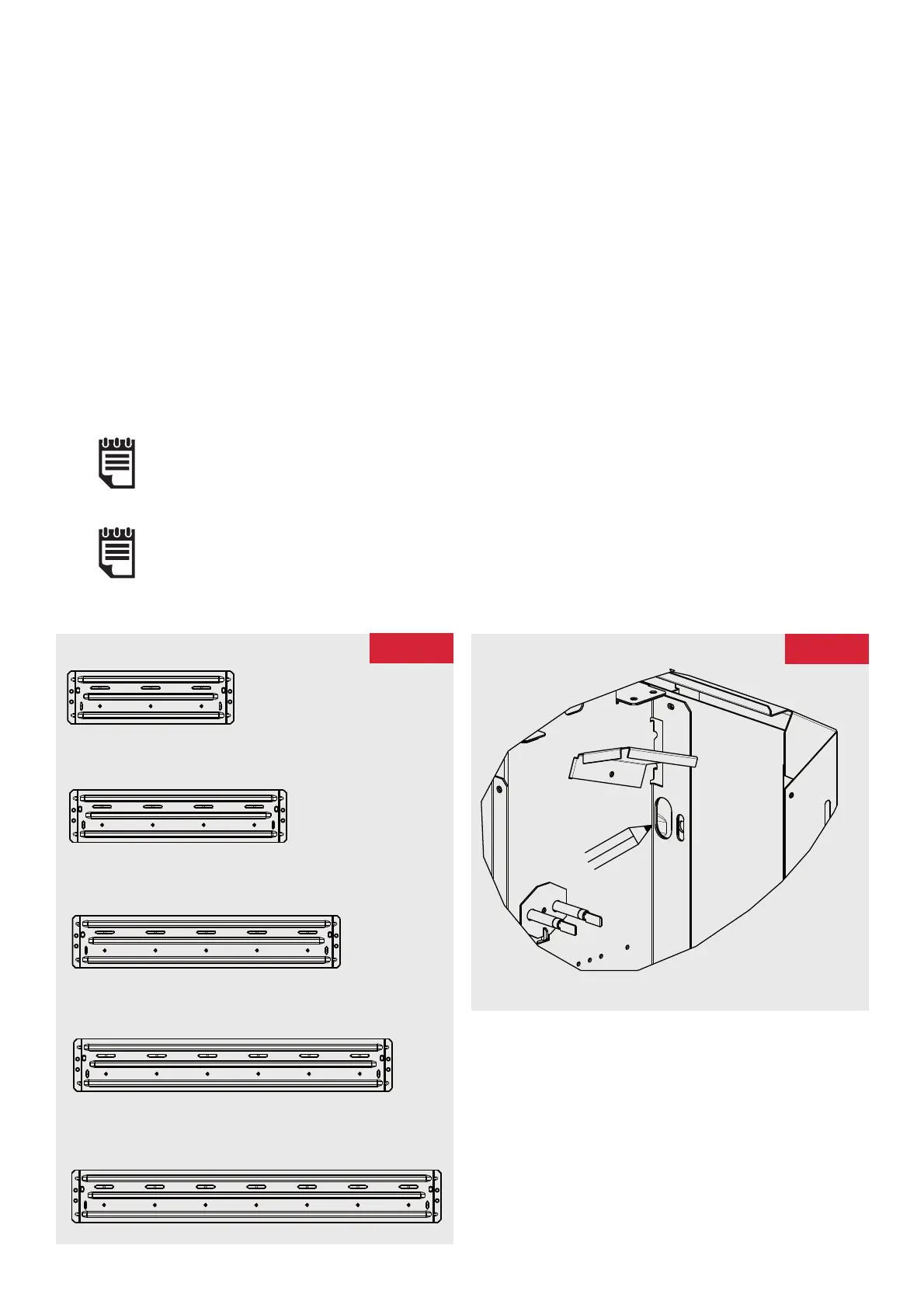

8. Six fi xing positions must be selected for ALL models QM050, QM070, QM100, QM125 and QM150. Fig. 7.
NB: Do not fully tighten screws until energy cells are fully loaded to ensure full weight is on feet and not on the
wall fi xings.
Common fi xing points for all heater sizes are shown.
Mark the positions for the fi xing holes towards the bottom of each slot at the two extreme ends of the slots,
this allows the heater to settle once the energy cells have been fi tted. Fig. 8.
Move the heater away from the wall, drill the holes and fi t the wall fi xings best suited to the application.
Secure the heater to the wall using correct quantity of screws required per model, using the appropriate screw
fi ttings.
Fig. 8
NOTE:
UNDER NO CIRCUMSTANCES SHOULD ANY SCREWS BE REMOVED WITHOUT FIRST REMOVING ALL
ENERGY CELLS FROM THE HEATER
NOTE:
NEVER FREE THE HEATER FROM THE WALL WITH ENERGY CELLS REMAINING INSIDE THE HEATER
CAVITY.
Fig. 7
QM070
QM100
QM125
QM150
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
QM050
x
x
x
x
x
x
