- 24 -
Fig. 6
Fig. 5
NOTE:
Retain these screws for reassembly. If misplaced,
M4 X 10 Tritap screws must be used
.
NOTE:
Read these instructions carefully before proceeding any further with the installation

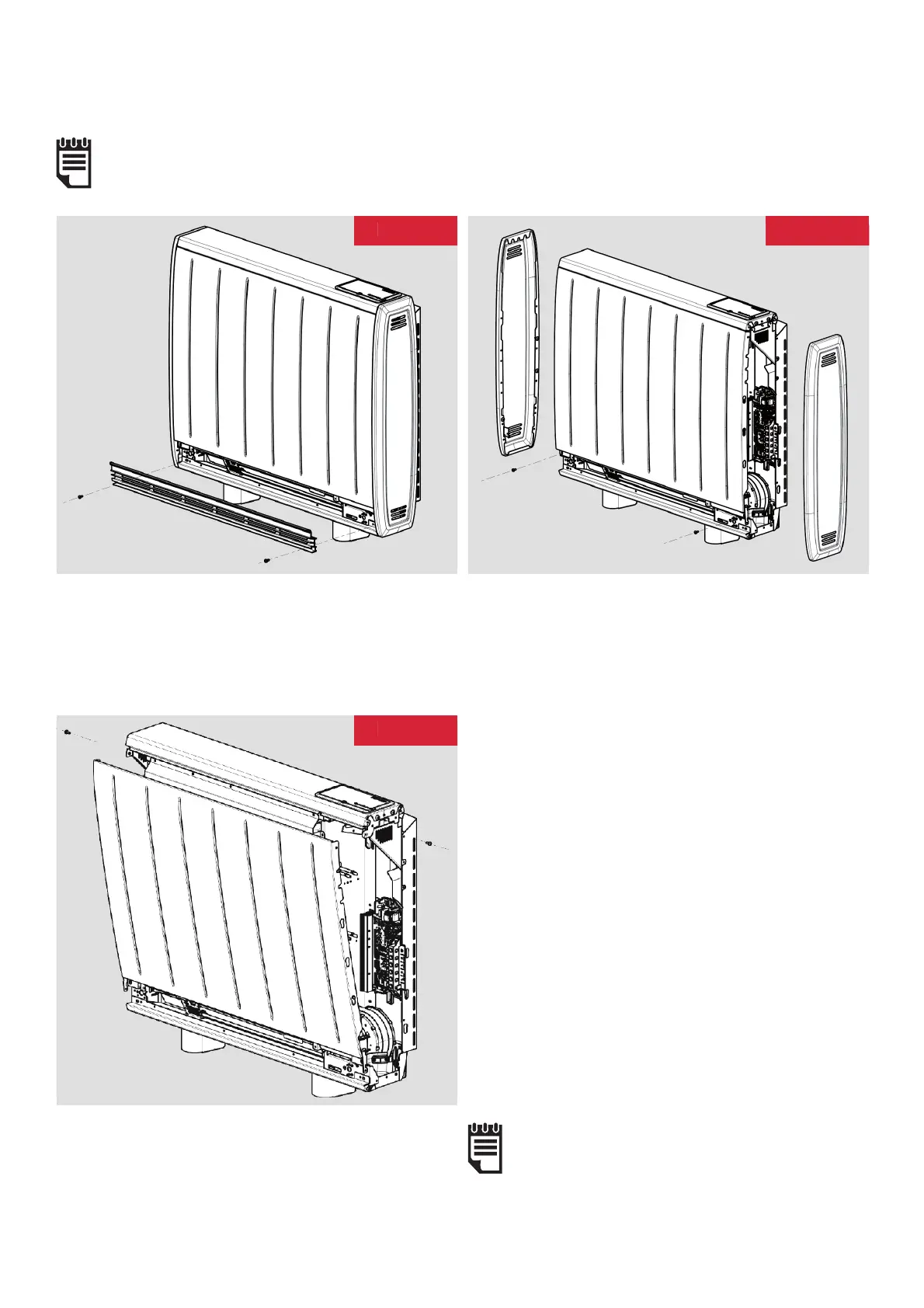

Fig. 4
4. Lay the heater on its back before removing the
screws which hold the grille panel in position.
Set the grille carefully to one side to ensure that it is
not damaged.
5. Remove the two screws located towards to bottom
of either end of the heater, which retain the heater
sides.
Push the left hand and right hand sides towards
the top of the heater to release each side from its
securing points.
6. Remove the two screws securing the front panel,
located at the upper sides of the heater, and swing the
upper edge of the front panel upwards and unhook it
from along the heater base.
F
g.
. 6
