Din Sync RE-909 - Switchboard PCB Connector Pinout Correction

3 - SWITCHBOARD PCB ERROR

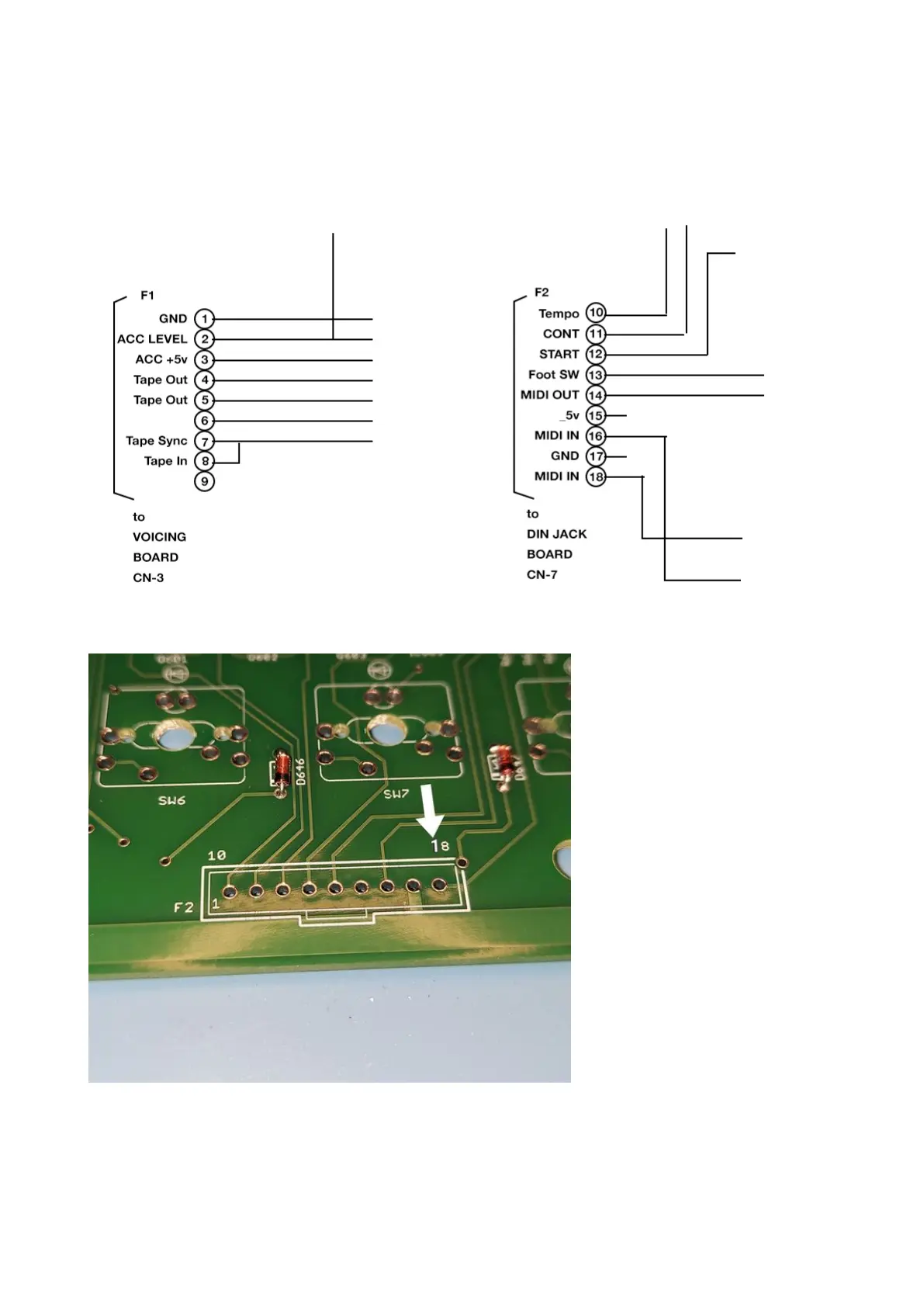

The pin numbers of the switchboard connectors were incorrect on the initial run. See the pin out/
destination diagram from the service notes (above) and be sure of your pins and destinations on
your switch board (below). Check twice, solder once.!
