PROCEDURE FOR REVERSING THE AIR CURTAIN
DOOR SWING

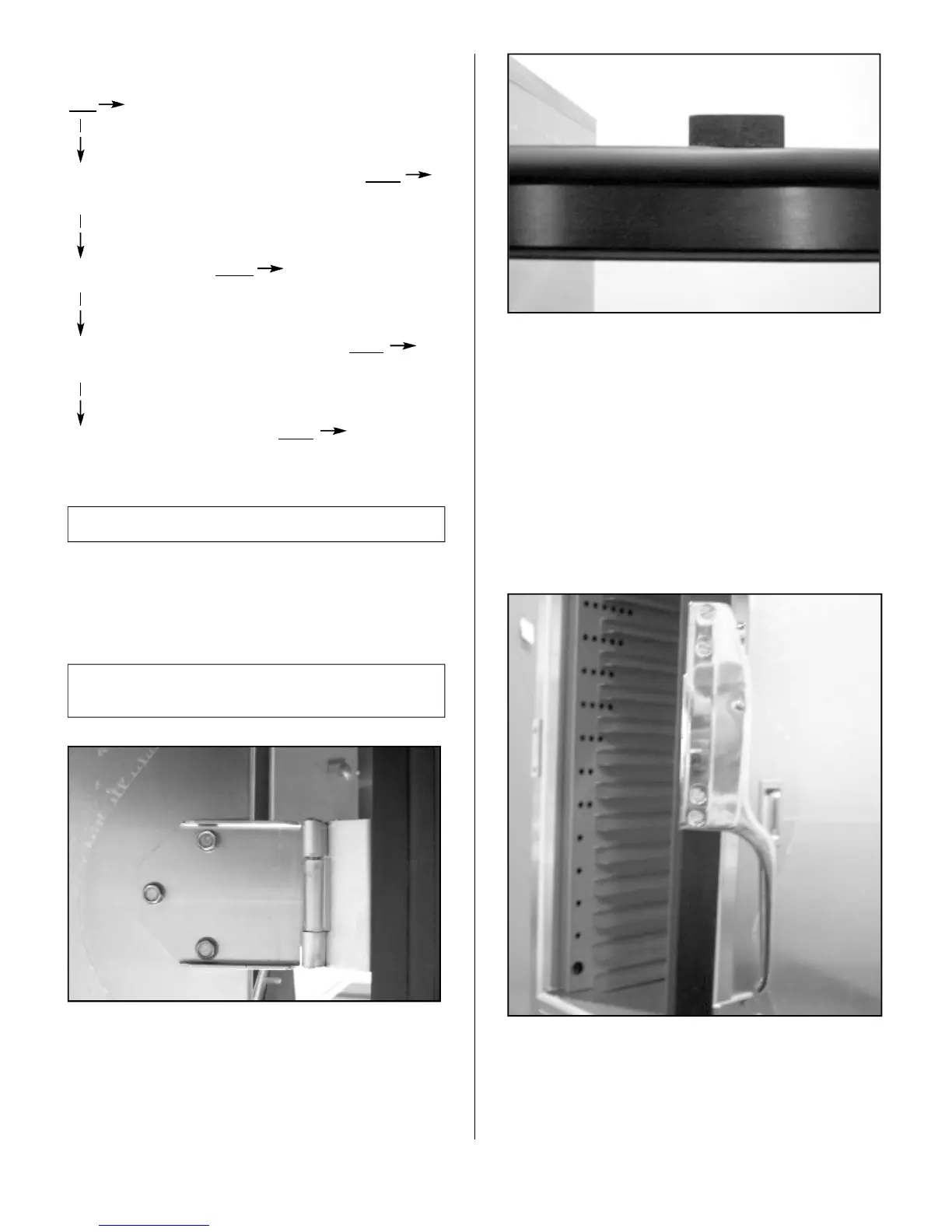

1. Remove door. (See Fig. 1)
NOTE: Remove only the 6 bolts (3 per hinge) that hold the
door to the cabinet. Do not remove the bolts that attach
the hinges to the door.
2. Place door on a table or flat work surface.
3. Remove the switch strike plate (Button activator block)
located at the top of the door. (See Fig. 2) Reorient it to
the opposite end of the door and install.
4. Remove the door latch. (See Fig. 3) Turn it over to
accommodate the new orientation and mount to the
opposite side of the door. Upon reorientation, make sure
that the handle will be in the down position when the
door is reinstalled.
5. Remove the latch strike plate from the cabinet (See
Fig. 4) and relocate it to the opposite side of the cabinet
door opening.
6. Mount door on the opposite side of the cabinet by
removing two (2) plates and utilizing the threaded
fasteners. (See Fig. 5)
!
!
Figure 1
Figure 2
Figure 3
Cart Not Cooling
Is the condensing unit plugged into the receptacle box?
NO Plug condensing unit in.
YES
*Is the RANCO thermostat operating correctly? NO
Correct the problem. (See "RANCO thermostat test proce-
dure")
YES
Is the cart freezing up? YES Correct the problem.
( S ee "air screen re f r i g e r ator tro u b l e s h o oting - ca rt fre ezing up")
NO
*Is the condensing unit operating correctly? NO
Correct the problem. (See "condensing unit test proce-
dure")
YES
*Is the
re f r i g e r a n t
charge correct? NO Correct the
problem. (A refrigerator service technician needs to
measure for one pound charge.)
NOTE: Items prefixed an * may require a service technician.
