ATTACHING BLADES
ATTACHING NYLON CUTTER AND BRACKET ONTO GUARD

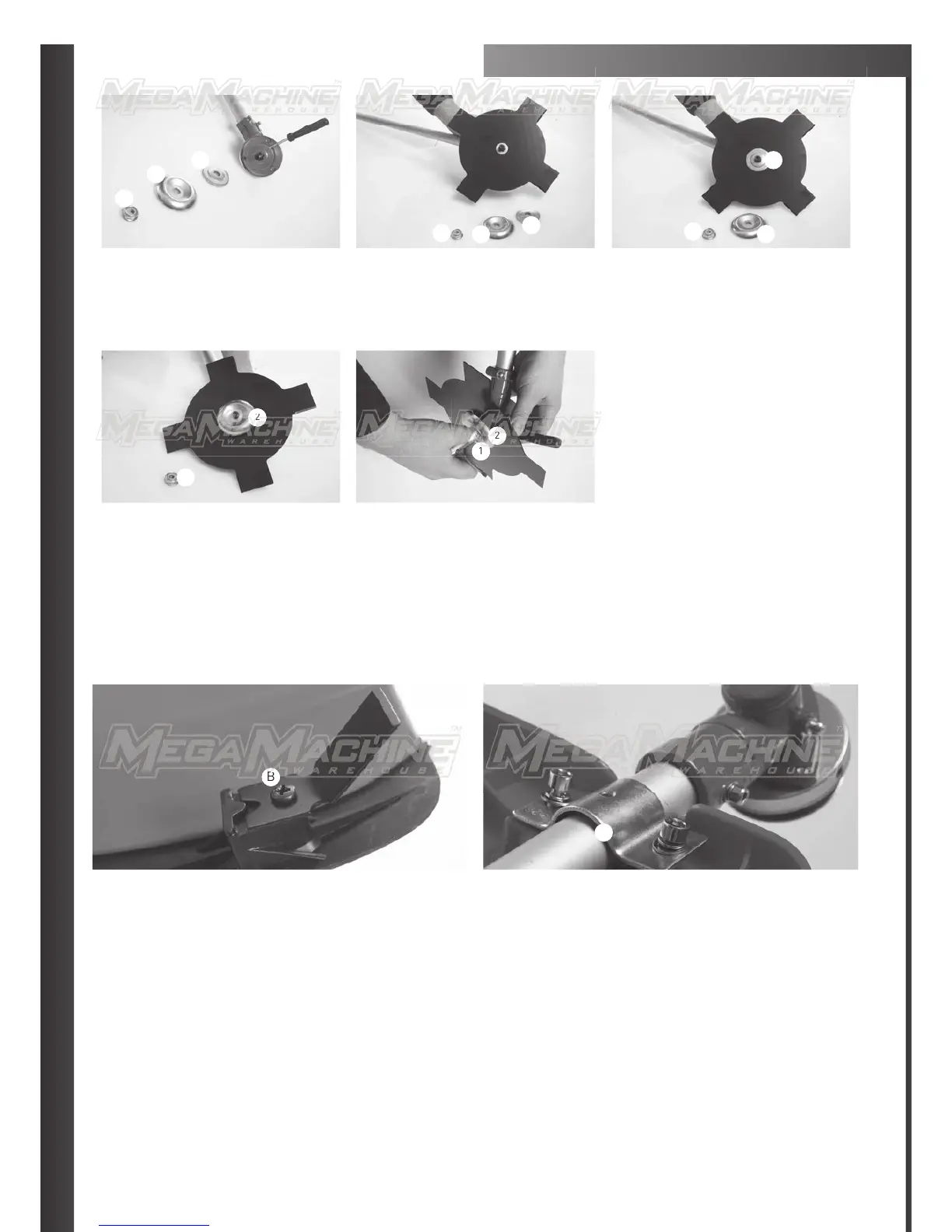

Step 1
Remove top nut, top plate and
resting plate.
Step 2
Position center of blade over raised
circular lip (fi tting into blade.)
Step 3
Position 3 (bottom plate) onto assembly.
Step 4
Position 2 (top plate) onto assembly.
Step 5
Apply 1 (locking nut) and
turn anti-clockwise to lock into position
(whilst holding the screw driver through
outer and inner index hole on head.)
1
1
1
1
1
2
2
2
2
2
3
3
3
STEP 1
Attach screw into nylon cutter and then screw onto splatter
cover which is the lower outer black part of the guard.
STEP 2
Apply hex screws into bracket and fi t bracket and hex screws
around pole into guard. Tighten until fi rm.
