Figure 3-39 provides an overview of connections for both the wireless and
Ethernet networks.

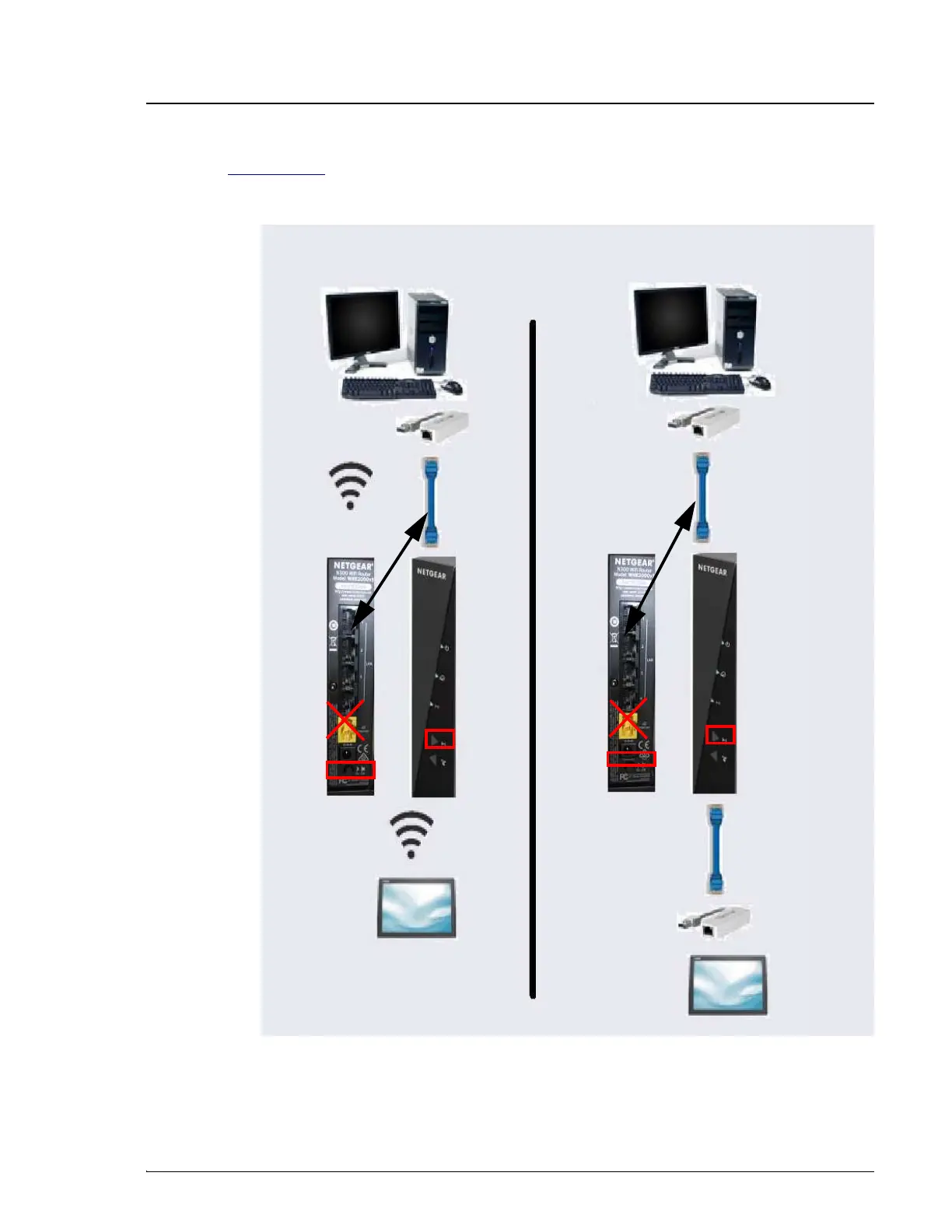

Figure 3-39. Network Connections: Tablet to IPC
Wireless
Ethernet
IPC
IPC
USB-to-LAN
Adapter
Ethernet
Ethernet
USB-to-LAN
Adapter
Wireless
Router
On/Off
Button
Router
Back
Router
Face
Wireless
On/Off
Button
Ethernet
Tablet
Tablet
Wireless
Router
Face
Router
Back
Adapter to USB
Router
On/Off
Button
Wireless
On/Off
Button
