REAR FACING
REAR FACING
INSTALL USING LATCH: 5-35 lbs (2.3-15.8 kg)
Do Not Install by this method for a child weighing
more than 35 lbs (15.8 kg) Reinstall with vehicle belt
for weights between 35-50 lbs (15.8-22.7 kg).

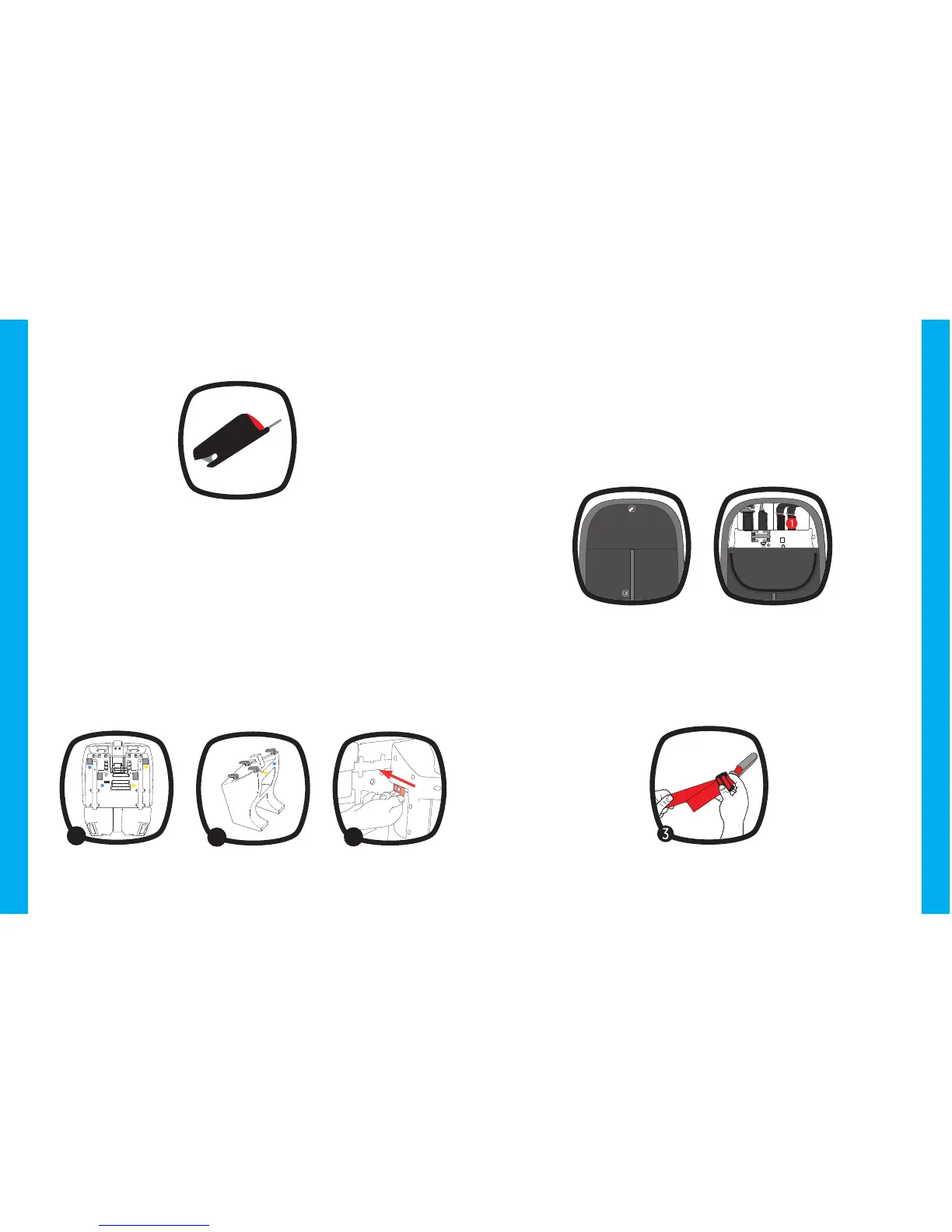

1. Install Detachable Rear Base – Align posts as
shown in gray by aligning the color coded dots. Slide
the base into place to align the dots Blue to Blue,
Yellow to Yellow. Once aligned, press the lever shown
into the seat base to engage. Confirm base is locked
and does not move.
1
2
3
2. Remove LATCH Strap from Storage Location on
back of seat.
Fold down cover on back of car seat. Locate the
LATCH Strap in the belt storage location shown. Push
in on the red buttons on the LATCH connectors and
remove from storage position 1.
3. Extend the LATCH Strap.
For easier installation, extend the LATCH strap to its
maximum length by pressing the grey button and
pulling on the strap.
To Next Page
