PP8 Plus 7 IN50001 Rev. C 04/30/2008
Figure #1.
25. Install the Drive On Ramps.
NOTE: PLEASE LUBRICATE ALL CABLE SHEAVES, BEARINGS, AND
SHAFTS WITH GREASE PRIOR TO OPERATING THE LIFT.

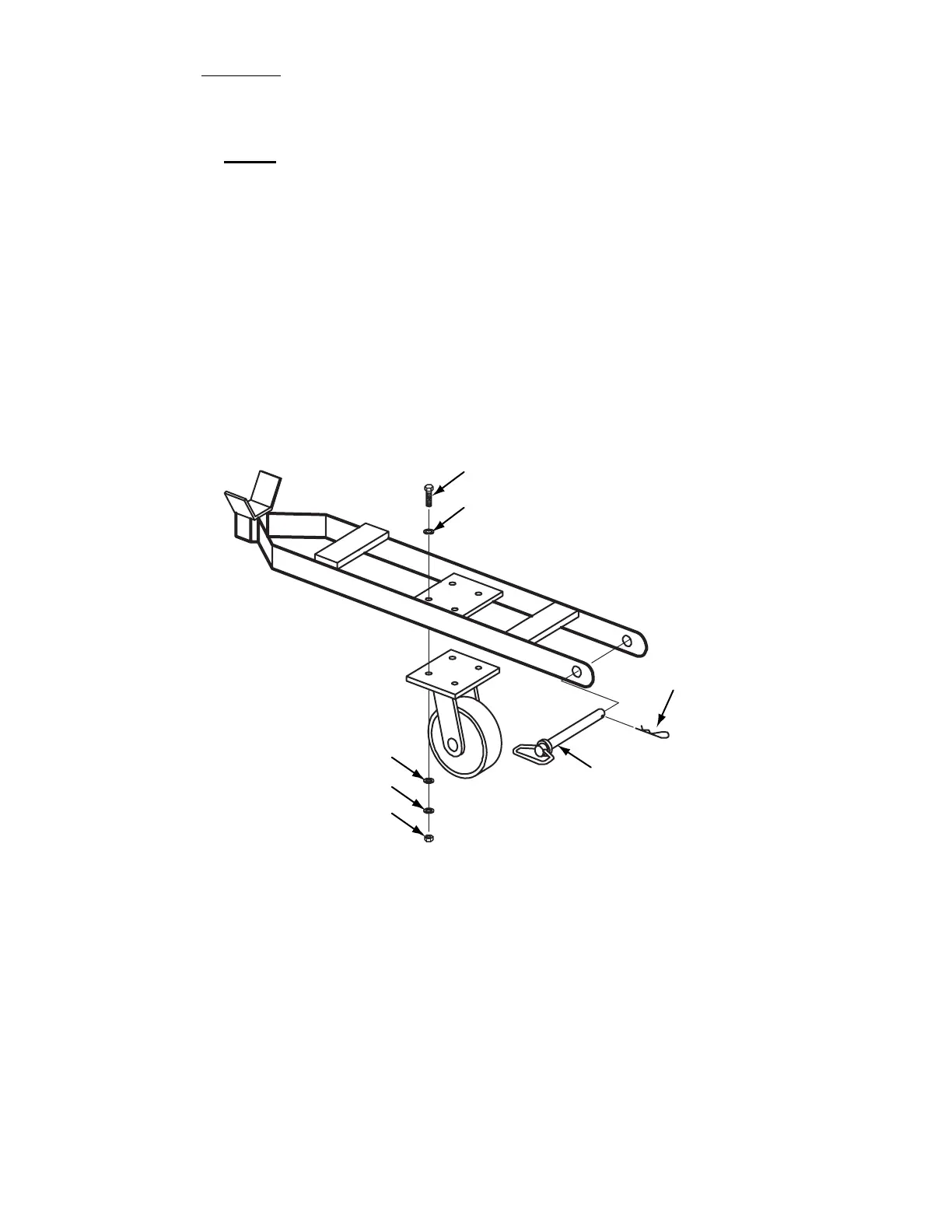

OPTIONAL CASTER KIT
1. Install caster wheels to caster frames as shown.
NOTE: Hitch Pin and Hairpin Clip will be used to attach casters to lift in following steps. DO
NOT Install at this time.
M10 x 1-3/8” Bolt
Ø10 Flat Washer
Hairpin Clip
Hitch Pin
Ø10 Flat Washer
Ø10 Lock Washer
M10 Nut
1. Raise lift 2' - 3' high.
2. Place caster assemblies under crossbeams as shown. Secure with Hitchpin and
Hairpin Clip.
3. Lower lift and the columns will automatically raise off the floor.
