DirectConnect DC4KHIR-1 - Operation Controls and Functions; Transmitter Panel Overview; Transmitter Port Functions

High Speed HDMI 4K 60 Hz
Single Cat5e/Cat6 Extender
DC4KHIR-1 PN: .42002
3
Operation Controls and Functions

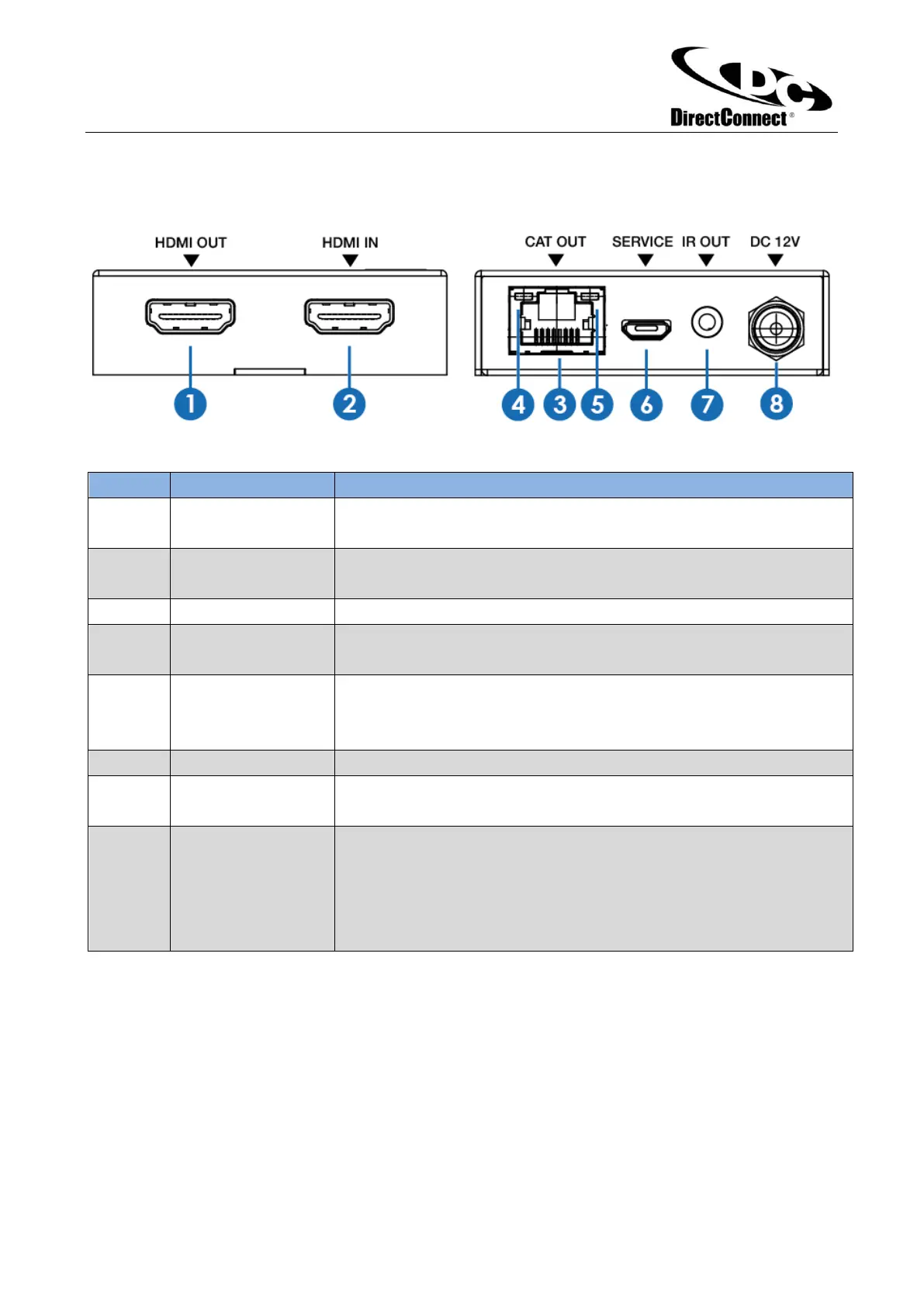

Transmitter Panel
Number
Name
Function description
1
HDMI OUT
HDMI loop output port, connect to HDMI display device such as
TV or Projector with an HDMI cable.
2
HDMI IN
HDMI input port, connect to HDMI source device such as DVD or
PS4 player with an HDMI cable.
3
CAT OUT
Connect to CAT IN port on the receiving end with a CAT6 cable.
4
Power Indicator
Lamp (Green)
The lamp will illuminate when the transmitter is powered on.
5
Data signal
Indicator Lamp
(Orange)
The lamp will illuminate when the transmitter and the receiver
have signal transmission.
6
SERVICE port
For firmware updated use.
7
IR OUT
Connect to wideband IR Blaster cable. The IR signal is from the IR
IN port of the receiver.
8
DC 12V
Plug DC 12V/1A power supply into the unit and connect the
adapter to an AC outlet.
(Note: The extender supports PoC function, it means that either
transmitter or receiver is powered supply by 12V/1A power
adapter, the other doesn’t need power supply.)
