High Speed HDMI 4K 60 Hz
Single Cat5e/Cat6 Extender
DC4KHIR-1 PN: .42002
5

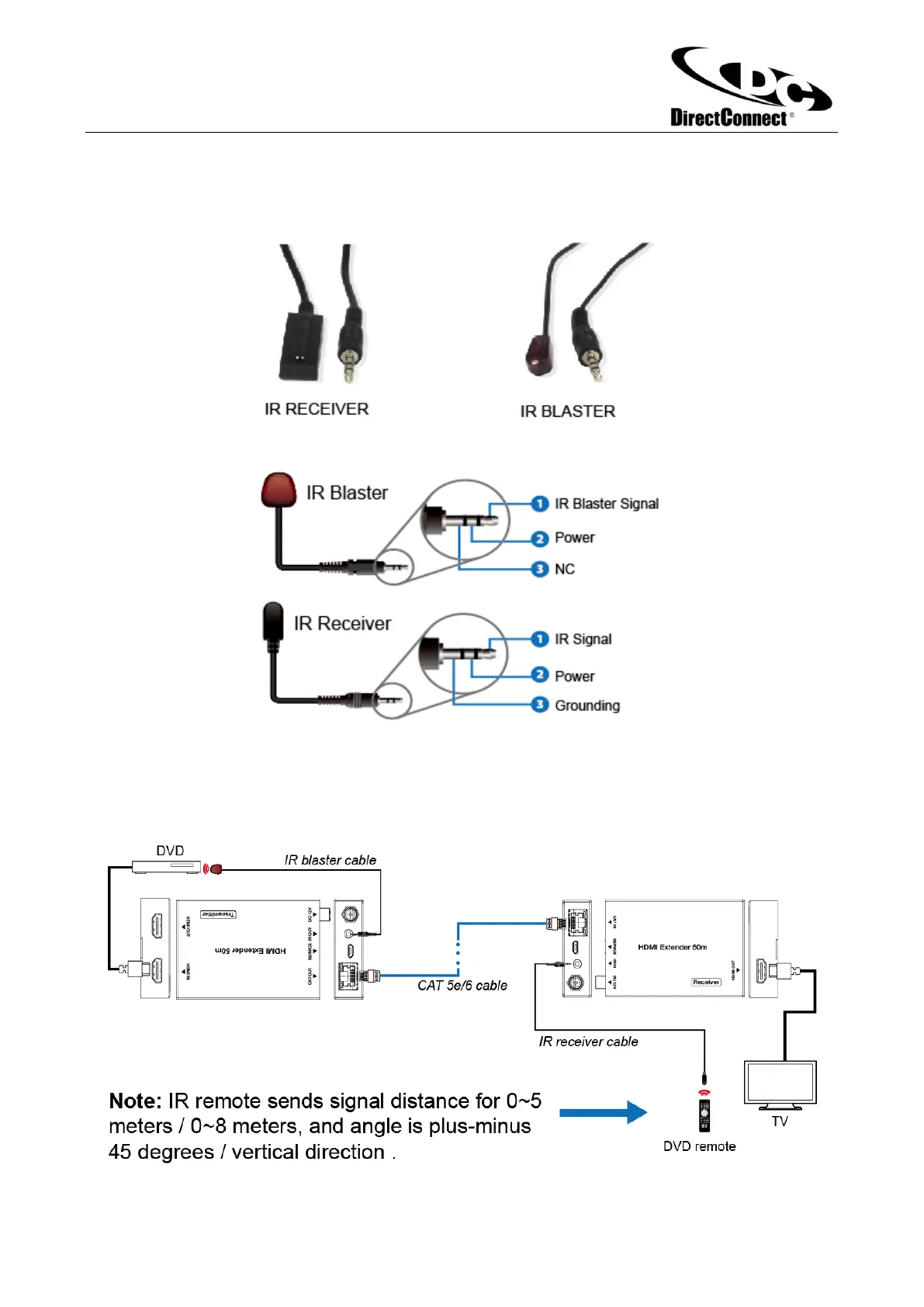

IR Pin Definition
IR Receiver and Blaster pin’s definition as below:
The following is IR system diagram about IR cable use method.
