Directed Audio 1100d - Figure 6-External Sync Bridged 600 d;1100 d

16
© 2002 Directed Electronics, Inc

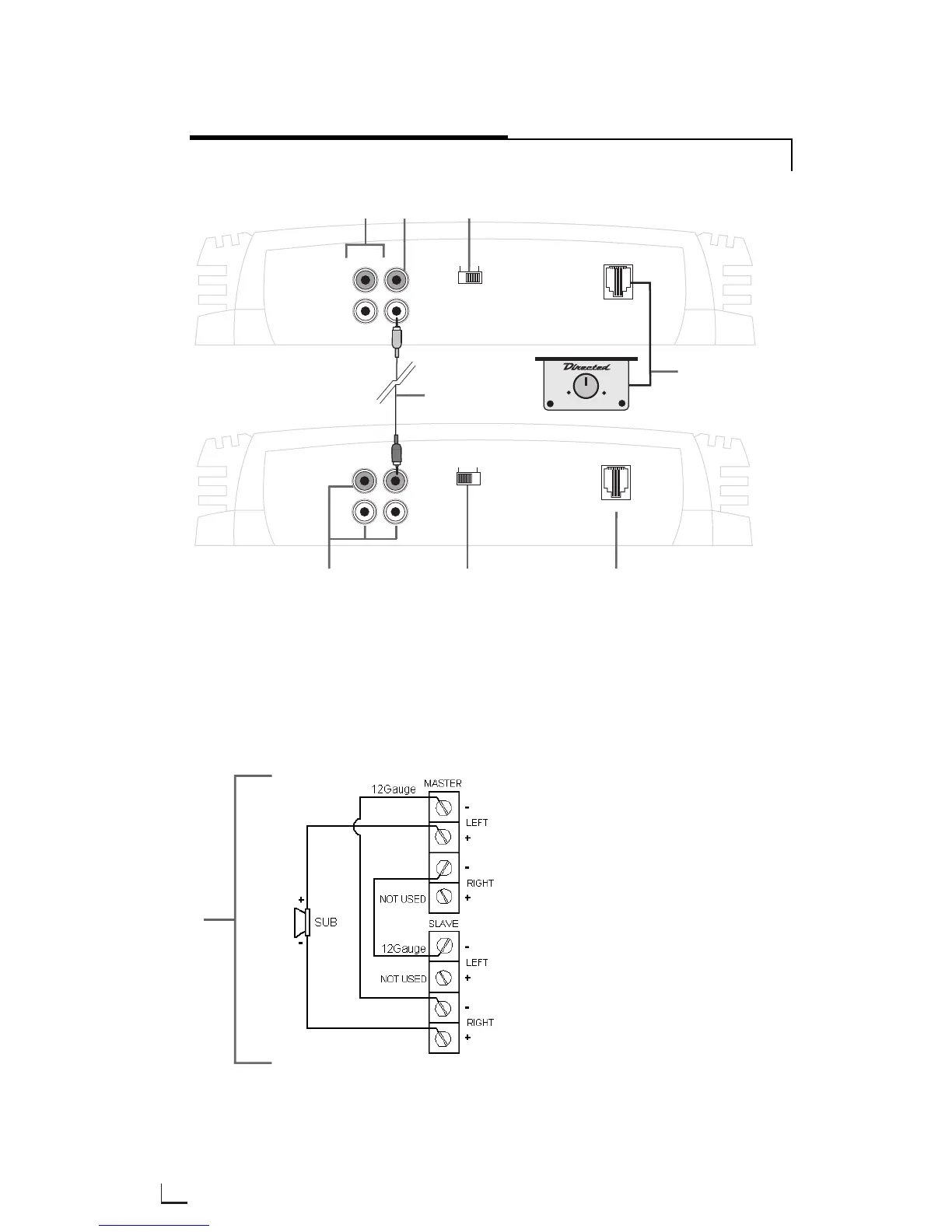

FIGURE 6—EXTERNAL SYNC BRIDGED 600d/1100d
5
Subwoofer Wiring
NNOOTTEE::
The dual + and -- subout terminals of the
600d/1100d are paralleled internally
and the combined load impedance
should be taken into consideration when
connecting multiple subwoofers.
The audio signal to the slave amplifier is
180° out of phase. The subwoofer’s
negative terminal must be connected to
the slave amplifier’s positive terminal.
SUB LEVEL
MIN MAX
INPUT I/O
R
L
SLAVE MASTER
REMOTE
SLAVE IN
SYNC OUT
BRIDGE OUT
INPUT I/O
R
L
SLAVE MASTER
REMOTE
SLAVE IN
SYNC OUT
BRIDGE OUT
2
2
Do Not Use
3
Do Not Use
Master
Slave
4
1
Do Not Use
