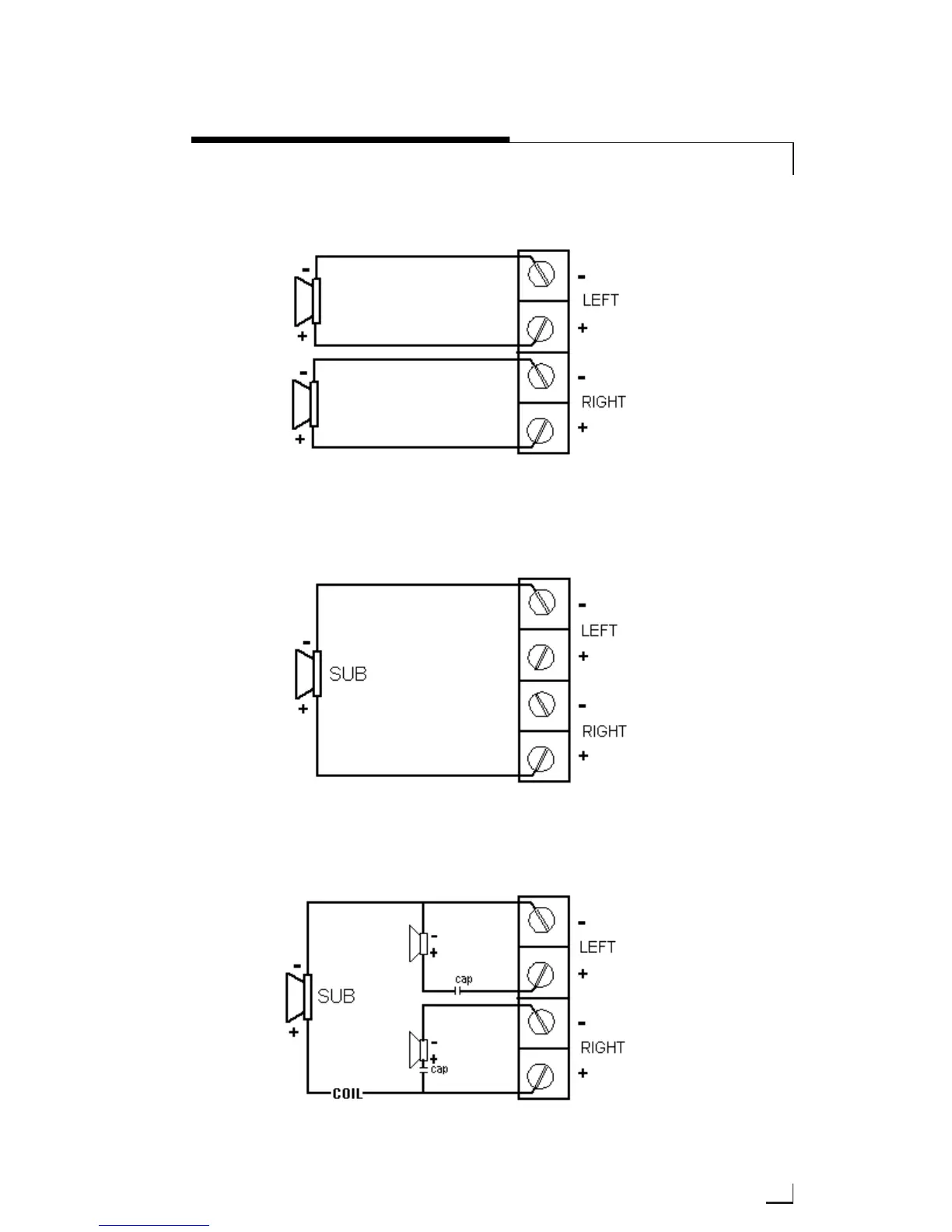

SPEAKER WIRING DIAGRAMS
9
© 2002 Directed Electronics, Inc
Stereo operation (top view)
Mono operation (top view)
Simultaneous stereo/mono operation (top view)
