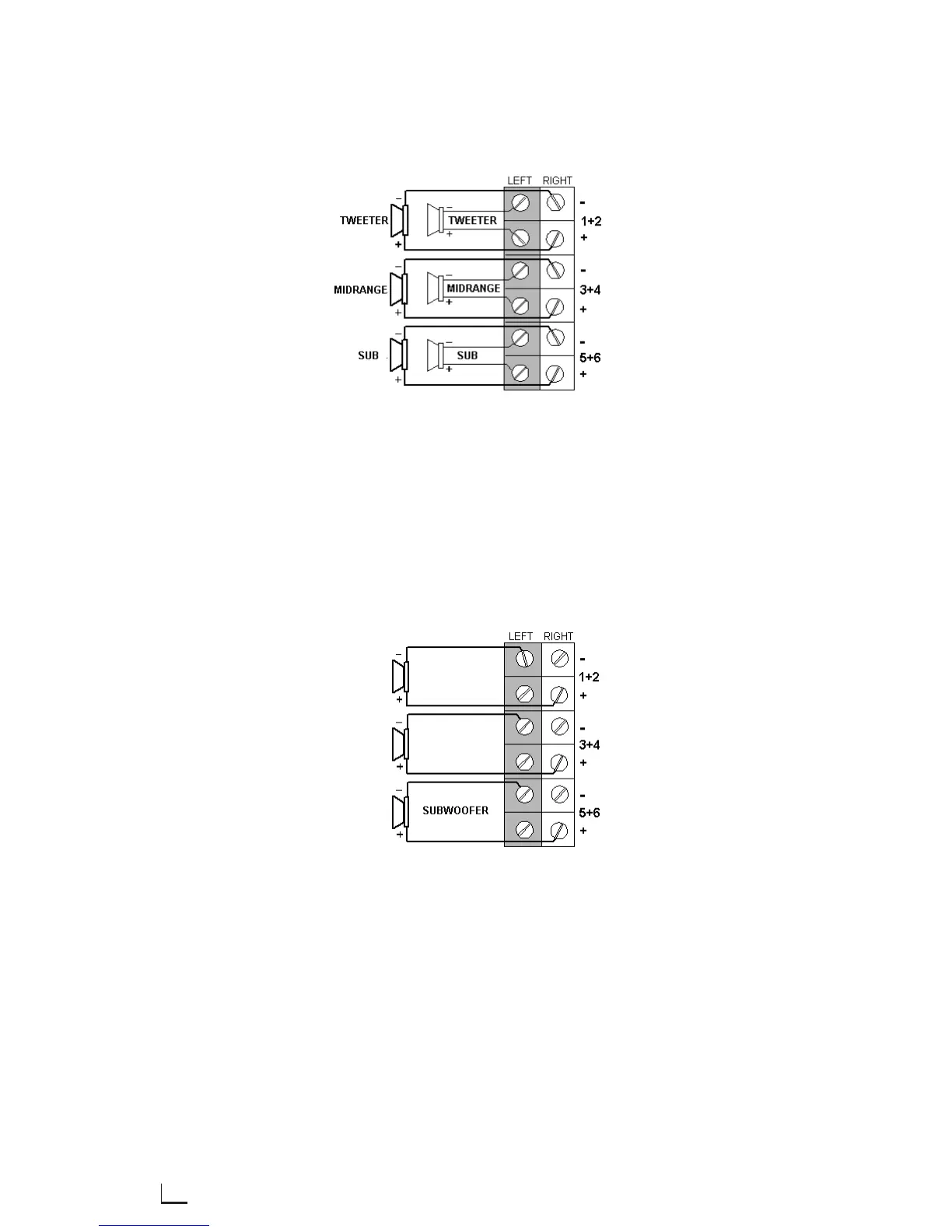

Tri amp operation (top view)
Bridged operation (top view)
Three Channel
NNOOTTEE::
When wiring the 6550 for three channel operation, connect the left audio signal to both channels one and two RCA jacks
and the right audio signal to both channels three and four RCA jacks using RCA Y adapters.
