SPEAKER WIRING DIAGRAMS

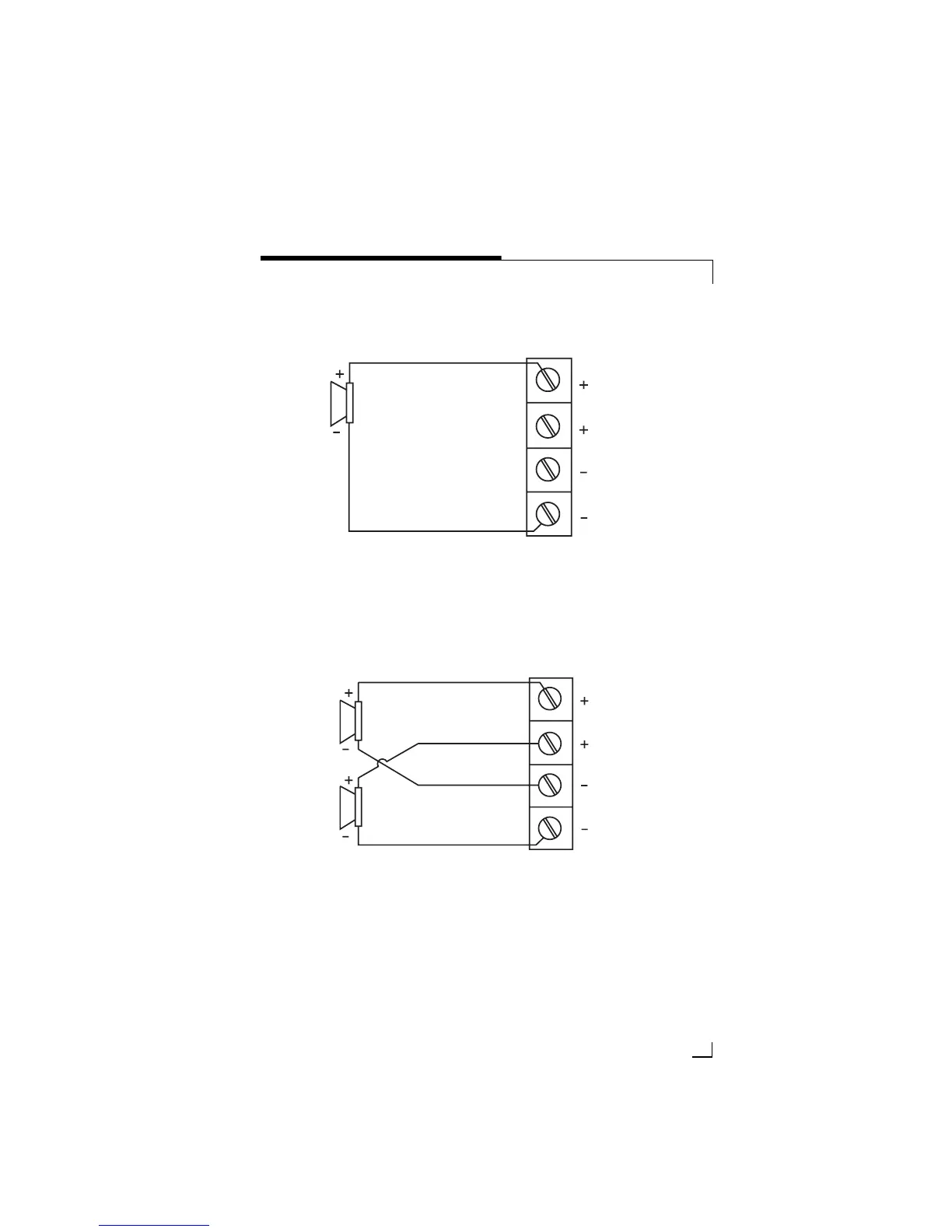

Single subwoofer connection (top view)
Two subwoofer connection (top view)
NNOOTTEE::
The dual + and -- sub-out terminals of the D600/D800/D1200/D2400 are paralleled internally and the combined load
impedance should be taken into consideration when connecting multiple subwoofers.
