CV1500

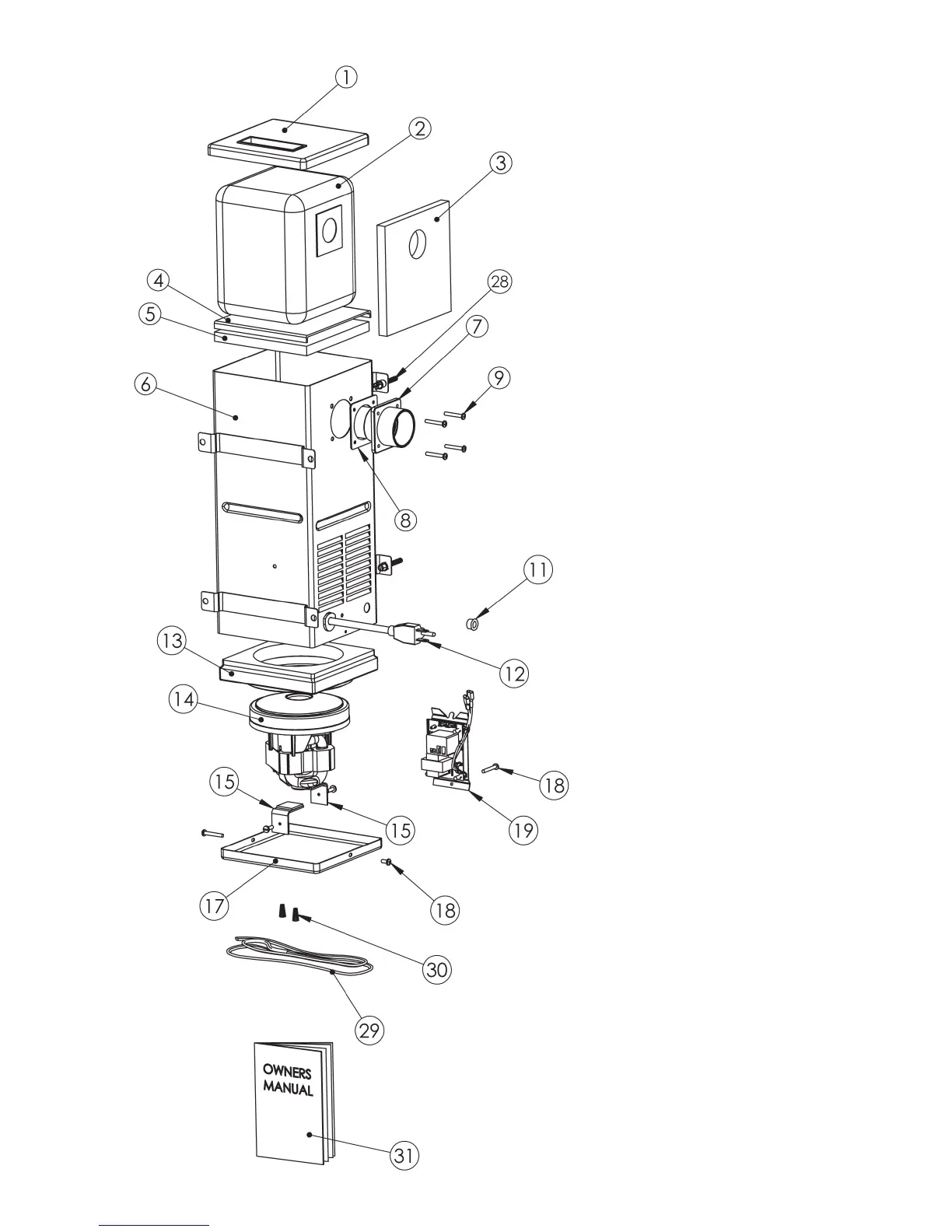

PARTS LIST
# Part # Name Qty.
1 7759 Top Cover 1
1a 7764-DD Product Label 1
1b Handle 1
1c Gasket 1
2 9597 Bags (3 pack)
3 4934 Support - Side 1
4 4929 Filter - Secondary 1
5 4928 Support - Bottom 1
6 8728 Canister 1
7 7464 Inlet Connector 1
8 7455 Gasket 1
9 7655-01 Screw 4
11 7599-01 Bushing L.Volt Wire 1
12 7110-01 Power Cord 1
13 7758 Gasket - Motor 1
14 9590 Motor 1
15 9591 Bracket - Motor 2
17 6678 Bottom Cover 1
18 7064-02 Screw 5
19 7090 Relay Assy 1
28 7775 Screw 4
29 5148-6 Low Volt Wire (6 ft)
30 5149 Wire Nut 2
31 9601 Owners Manual 1
32 7539-02 Ground Screw 1
33 5737-03 Ground Wire 1
34 7108 Hex Nuts 3
