Dirt Devil M082700 - BELT OR BRUSH ROLL REMOVAL AND REPLACEMENT; INSTALLATION AND REMOVAL OF CONVENIENT SHOULDER STRAP

Diagram 2 Diagram 3
-ift and remove brush roil.
Loop belt around motor shaft.
Diagram 4 Diagram 5
Insert brush roll lnto holder #I
Replace nozzle guard.
then
#2.

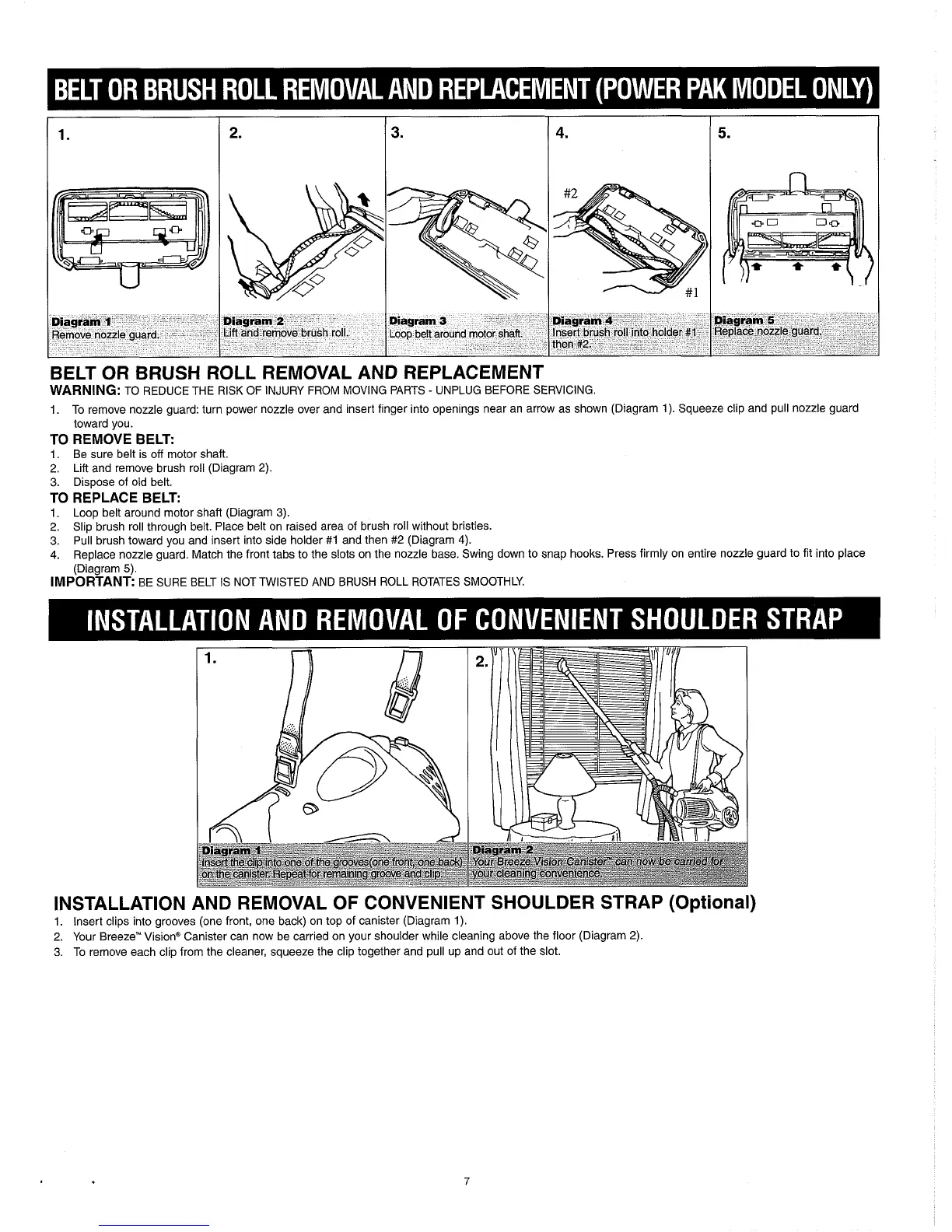

BELT OR BRUSH ROLL REMOVAL AND REPLACEMENT
WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE SERVICING.
1.
To remove nozzle guard: turn power nozzle over and insert finger into openings near an arrow as shown (Diagram
1). Squeeze clip and pull nozzle guard
toward you.
TO REMOVE BELT:
1. Be sure belt is off motor shaft.
2.
Lift and remove brush roll (Diagram 2).
3. Dispose of old belt.
TO REPLACE BELT:
1.
Loop belt around motor shaft (Diagram 3).
2.
Slip brush roll through belt. Place belt on raised area of brush roll without bristles.
3.
Pull brush toward you and insert into side holder #I and then
#2 (Diagram 4).
4.
Replace nozzle guard. Match the front tabs to the slots on the nozzle base. Swing down to snap hooks. Press firmly on entire nozzle guard to fit into place
(Diagram
5).
IMPORTANT: BE SURE BELT IS NOTTWISTED AND BRUSH ROLL ROTATES SMOOTHLY.
INSTALLATION AND REMOVAL OF CONVENIENT SHOULDER STRAP (Optional)
1. Insert clips into grooves (one front, one back) on top of canister (Diagram 1).
2. Your ~reeze'" visiona canister can now be carried on your shoulder while cleaning above the floor (Diagram 2).
3. To remove each clip from the cleaner, squeeze the clip together and pull up and out of the slot.
