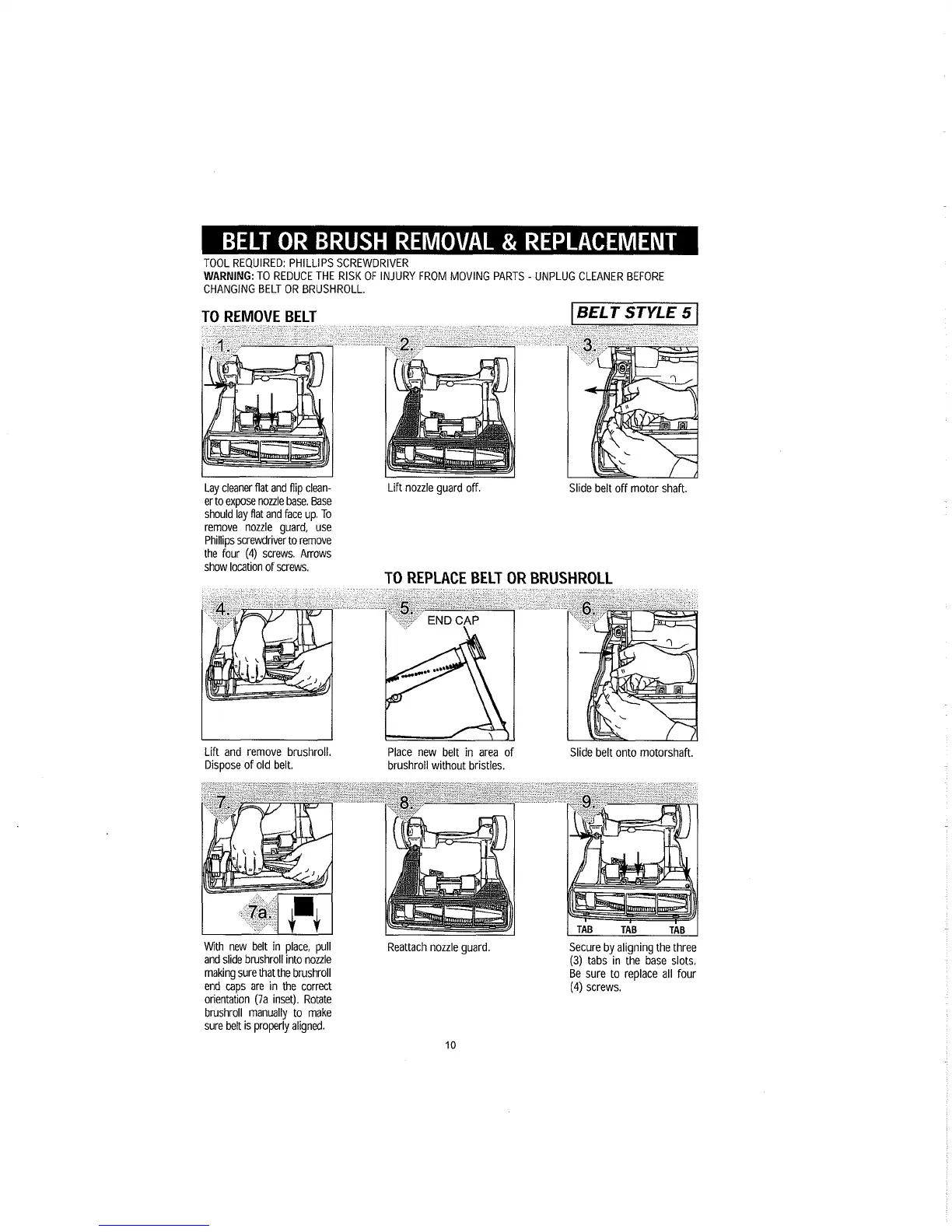

TOOL REQUIRED: PHILLIPS SCREWDRIVER
WARNING:
TO REDUCE THE RISK OF INJURY FROM MOVING PARTS
-
UNPLUG CLEANER BEFORE
CHANGING BELT OR BRUSHROLL.
Lay cleaner flat and flip clean-
Lift nozzle guard off.
er to expose nozzle base. Base
should lay flat and face up. To
remove nozzle guard, use
Phillips screwdriver to remove
the four (4) screws. Arrows
show location of screws.
TO REPLACE BELT
(
Slide belt off motor shaft.
8
BRUSHROLL
Lift and remove brushroll.
Place new belt in area of
Slide belt onto motorshaft.
Dispose of old belt.
brushroll without bristles.
With new belt in place, pull
Reattach nozzle guard.
and slide brushroll into nozzle
making sure that the brushroll
end caps are in the correct
orientation
(7a
inset). Rotate
brushroll manually to make
sure belt is properly aligned.
Secure by aligning the three
(3)
tabs in the base slots.
Be sure to replace all four
(4) screws.
