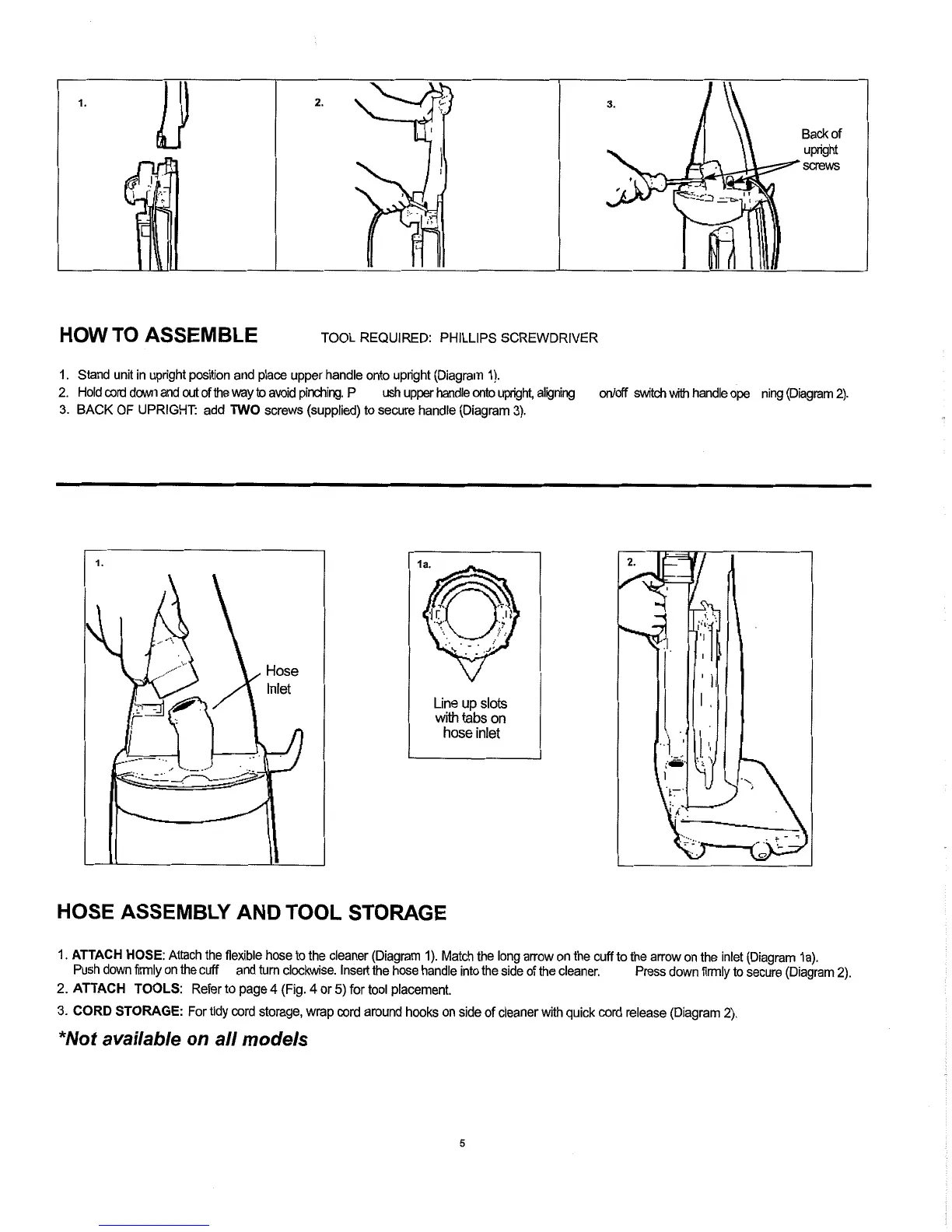

HOW TO ASSEMBLE
TOOL REQUIRED: PHILLIPS SCREWDRIVER
1.
Stand unit in upright position and place upper handle onto upright (Diagram 1).
2. Hold
mrd
down and
out
of the
way
to
avoid pinching. P
ush upper handle
ontD
uptight, aligning
onloff
switch
with
handle ope ning (Diagram
2).
3.
BACK
OF UPRIGHT add
TWO
screws (supplied) to secure handle (Diagram
3).
la.
Line
up
slots
with
tabs on
hose inlet
HOSE ASSEMBLY AND TOOL STORAGE
I.
ATTACH HOSE:
Attach the flexible hose to the cleaner (Diagram I). Match the long arrow on the cuff to the arrow on the inlet (Diagram la).
Push down firmly on the cuff
and
turn
clockwise. Insert the hose handle into the side of the cleaner.
Press down firmly to secure (Diagram
2).
2.
ATTACH TOOLS:
Refer to page
4
(Fig.
4
or
5)
for tool placement.
3.
CORD STORAGE:
For tidy cord storage, wrap cord around hwks on side of cleaner with quick cord release (Diagram 2).
*Not available
on
all models
