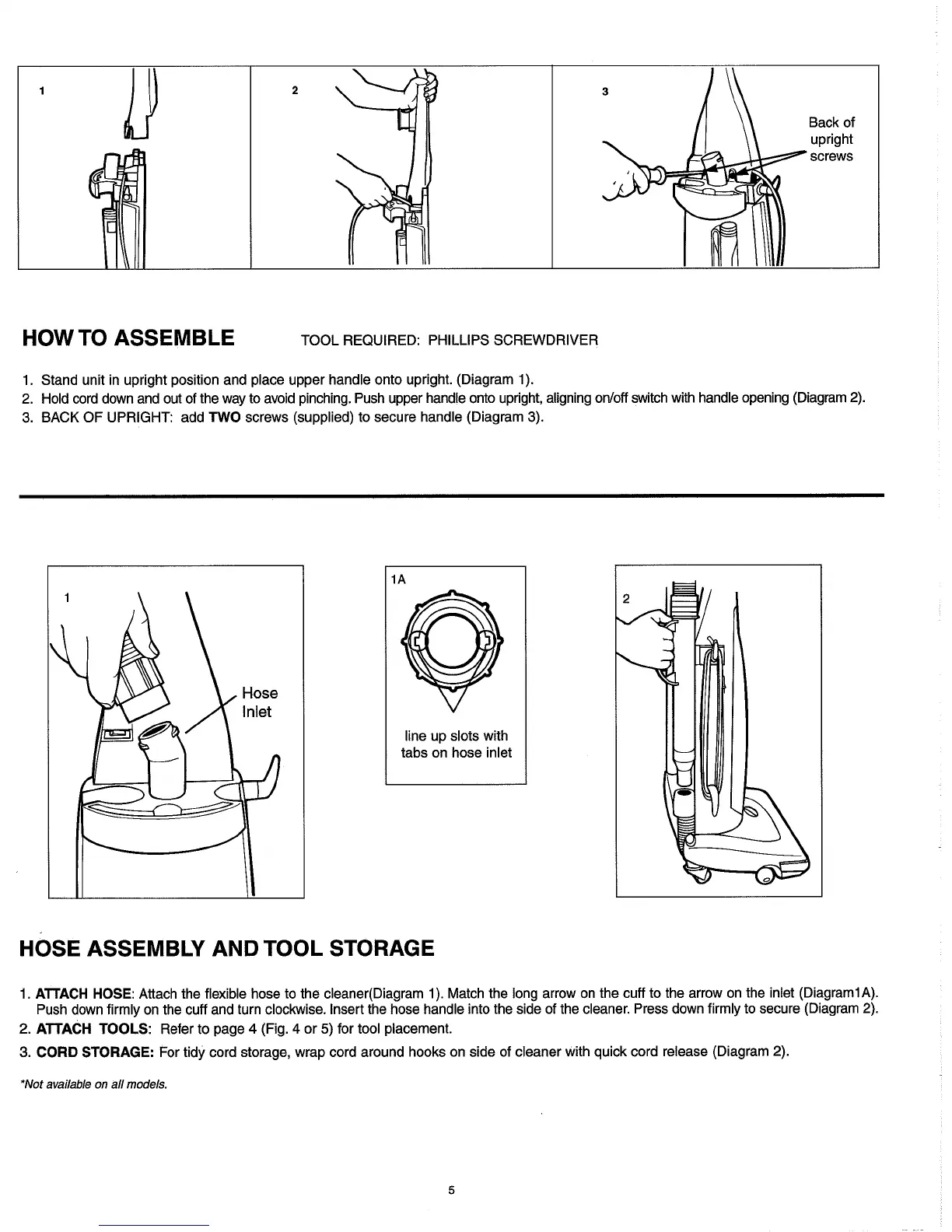

HOW TO ASSEMBLE
TOOL REQUIRED: PHILLIPS SCREWDRIVER
1. Stand unit in upright position and place upper handle onto upright. (Diagram 1).
2. Hold cord down and out of the way to avoid pinching. Push upper handle onto upright, aligning
onloff switch with handle opening (Diagram 2).
3. BACK OF UPRIGHT: add TWO screws (supplied) to secure handle (Diagram 3).
line up slots with
tabs on hose inlet
HOSE ASSEMBLY AND TOOL STORAGE
1. AlTACH HOSE: Attach the flexible hose to the cleaner(Diagram 1). Match the long arrow on the cuff to the arrow on the inlet (Diagram1 A).
Push down firmly on the cuff and turn clockwise. Insert the hose handle into the side of the cleaner. Press down firmly to secure (Diagram 2).
2.
ArrACH TOOLS: Refer to page
4
(Fig.
4
or
5)
for tool placement.
3. CORD STORAGE: For tidy cord storage, wrap cord around hooks on side of cleaner with quick cord release (Diagram 2).
*Not available on all models.
