Unpacking and Assembly
Your tiller comes partially assembled at the factory. e following
instructions will help you unpack your tiller, assemble and adjust the
depth regulator lever, cable tension and handlebar height. You will
need 2- 9/16” wrenches.
Unpacking
Open top of carton and remove handlebar assembly.
Find parts packet. Parts packet contains:
2 each - Flanged Hex Bolt, M12 x 50
2 each - Flanged Hex Bolt, M12 x 25
4 each - Nylock Hex Nut, M12
4 each - Hex Bolt, M6 x 35
4 each - Nylock Hex Nut, M6
2 each - Lynch Pin, 5/16” x 1-3/4”
1 each - Detent Pin, 5/16” x 2”
Do not attempt to lift the tiller from the carton. Cut open end of
carton and remove machine by putting wheels onto machine with
lock pin disengaged from wheel. en toll the tiller from carton.
DO NOT ADD ENGINE OIL TO THE
TRANSMISSION GEAR CASE
Only Liquid Grease should be used when needed.

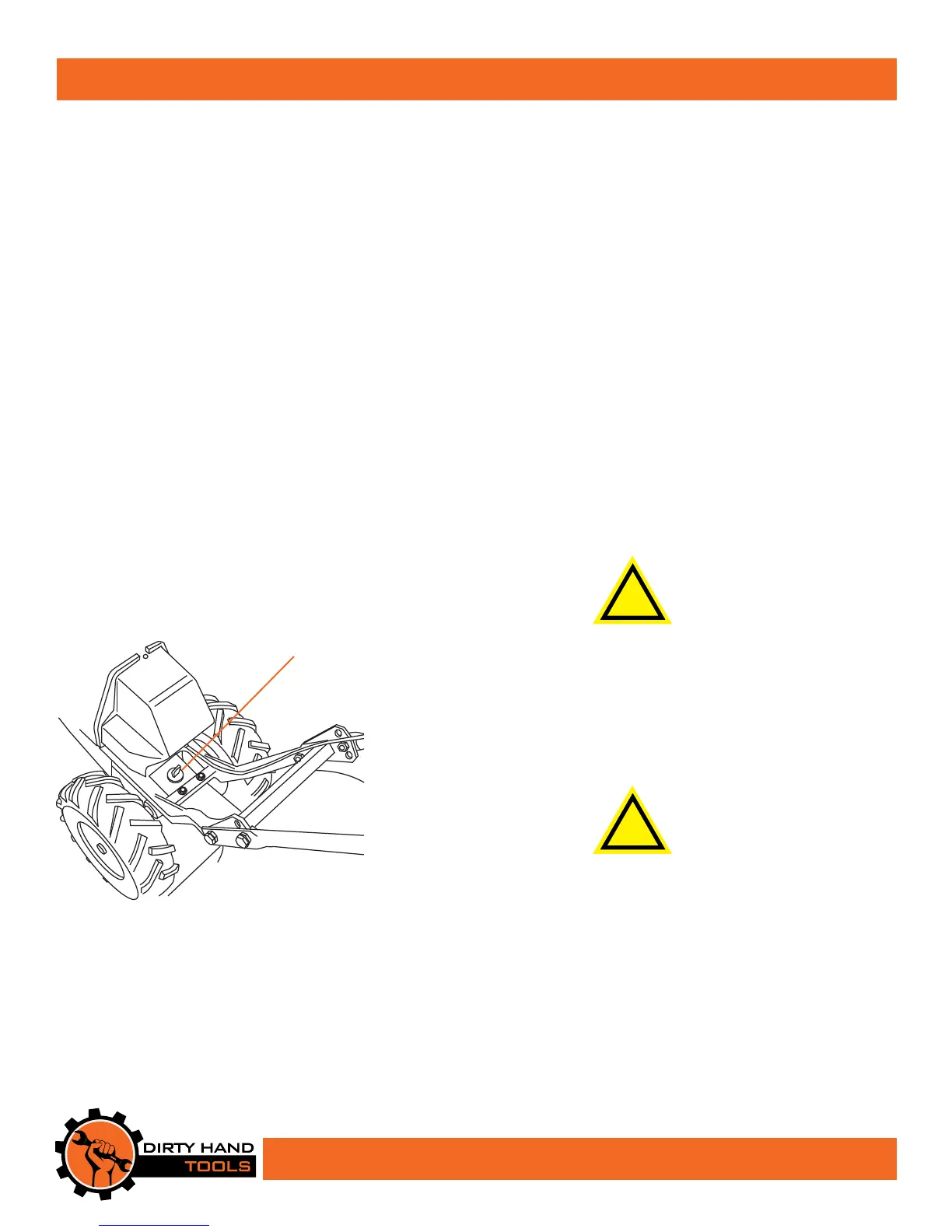

e tiller transmission is lled at the factory with the correct amount
of liquid grease (see Figure 1).
DO NOT ATTEMPT TO START ENGINE
BEFORE ADDING OIL TO ENGINE
e engine is shipped from the factory without oil. You must add
engine oil before starting the engine. Use only the recommended
weight of oil for a 4-cycle engine (See Engine Operation Manual).
7
Transmission Gear
Dip Stick
!
CAUTION
!
CAUTION
Figure 1
