External View [321/351/361]

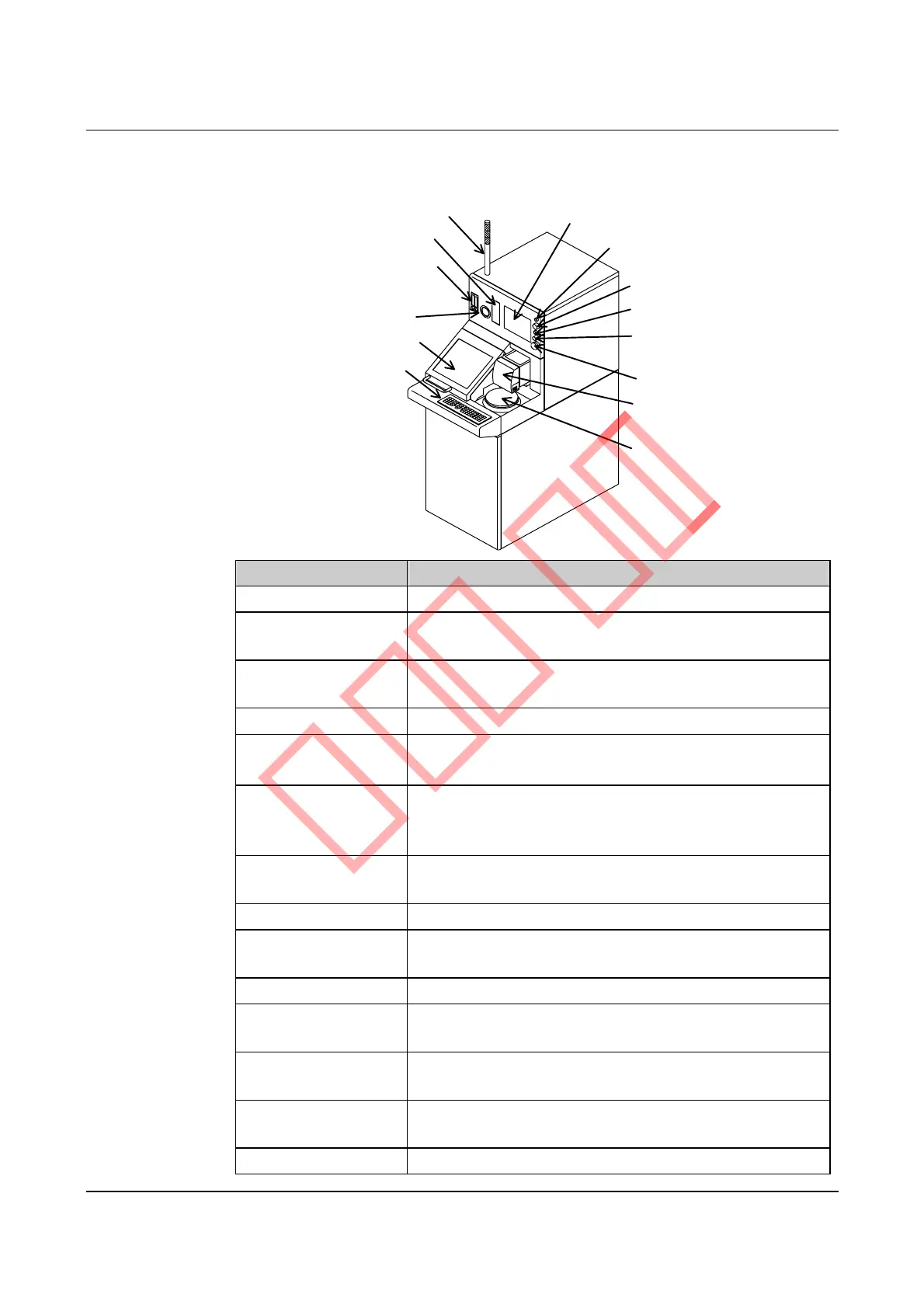

The diagram and the table below show the external view, names and functions
of main constituents.
Operation panel
Splash cover
Vacuum gauge
Flowmeter
Disk drive
Pilot lamp
Monitor
Key switch
POWER lamp
Maintenance switch
Light intensity
adjustment dial
EMO switch
Chuck table
Microscope
Name Function
Operation Panel Consists of operation control keys.
Splash Cover Prevents water from splashing around during spindle
rotation and functions as a safety device.
Vacuum Gauge Indicates the chuck table vacuum pressure to attract
the workpiece to the chuck table.
Flowmeter Indicates the flow rate of the wheel coolant water.
Disk Drive Functions as an external storage device.
[Option accessory]
Pilot Lamp Indicates the machine operating status with the green
and yellow lamps. If an error occurs, the red lamp
flashes on and off.
Monitor Displays operating information and microscope
images.
POWER Lamp Lights while the power is ON.
Key Switch Used to turn ON and OFF the machine by inserting
and rotating the key.
Maintenance Switch Used by the maintenance personnel.
Light Intensity
Adjustment Dial
Adjusts the microscope image light intensity.
EMO Switch Functions as the emergency stop switch. When
pressed, shuts off the electrical power supply.
Microscope Used to view workpieces for alignment and other
purposes.
Chuck Table Used to mount workpieces on it.
