Intro-5

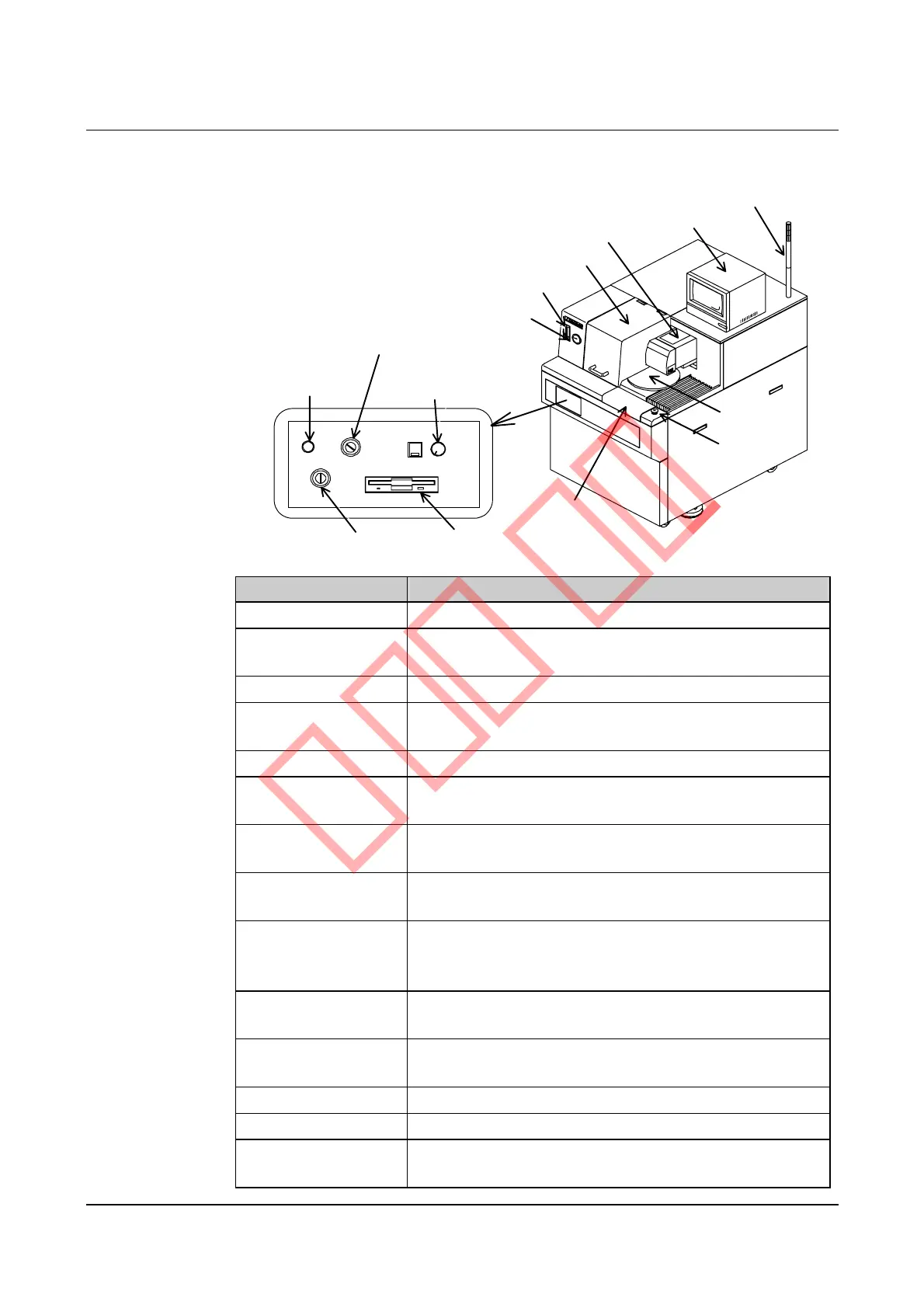

External View [341/381]
The diagram and the table below show the external view, names and functions
of main constituents.
POWER lamp
Disk drive
Key switch
Maintenance switch
Light intensity
adjustment dial
POWER
ON
OFF
START
AXIS
LOCK
AXIS
RELEASE
REMOTE
LAMP
VOLUME
MANUAL
Operation panel
Splash cover
Vacuum gauge
Flowmeter
Pilot lamp
Monitor
EMO switch
Chuck table
Microscope
Name Function
Chuck Table Used to mount workpieces on it.
EMO Switch Functions as the emergency stop switch. When
pressed, shuts off the electrical power supply.
Operation Panel Consists of operation control keys.
Vacuum Gauge Indicates the chuck table vacuum pressure to attract
the workpiece to the chuck table.
Flowmeter Indicates the flow rate of the wheel coolant water.
Splash Cover Prevents water from splashing around during spindle
rotation and functions as a safety device.
Microscope Used to view workpieces for alignment and other
purposes.
Monitor Displays operating information and microscope
images.
Pilot Lamp Indicates the machine operating status with the green
and yellow lamps. If an error occurs, the red lamp
flashes on and off.
Disk Drive Functions as an external storage device.
[341:Optional accessory/381:Standard part]
Key Switch Used to turn ON and OFF the machine by inserting
and rotating the key.
POWER Lamp Lights while the power is ON.
Maintenance Switch Used by the maintenance personnel.
Light Intensity
Adjustment Dial
Adjusts the microscope image light intensity.
To Next Page
