1030/1230 - CONTROLS 11

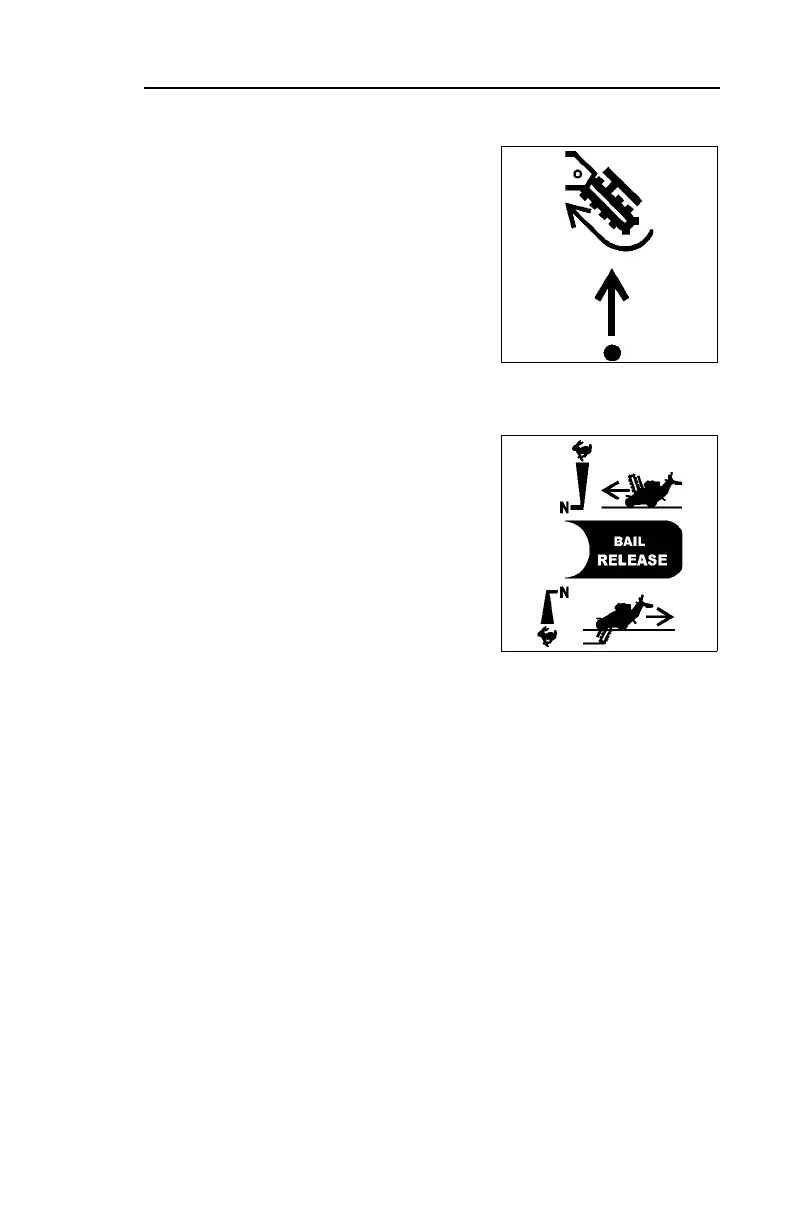

CONTROL CONSOLE DESCRIPTIONS
1030/1230 - CONTROLS 11
CONTROL CONSOLE DESCRIPTIONS
Digging Chain Control (Yellow)
This lever starts digging chain
when bail is engaged.
• Push to start digging chain.
• Returns to neutral and digging
chain stops when bail is
released.
Speed/Direction Control
(Orange)
This lever controls unit speed and
direction when bail is engaged.
• Ensure control is in BAIL
RELEASE (neutral) position,
and engage bail.
• Push to move forward.
• Pull to move backward.
• Move farther from center to go faster in either direction.
• Return to BAIL RELEASE (neutral) to stop.
ic0014c.tif
ic0013c.tif
Digging Chain Control (Yellow)
This lever starts digging chain
when bail is engaged.
• Push to start digging chain.
• Returns to neutral and digging
chain stops when bail is
released.
Speed/Direction Control
(Orange)
This lever controls unit speed and
direction when bail is engaged.
• Ensure control is in BAIL
RELEASE (neutral) position,
and engage bail.
• Push to move forward.
• Pull to move backward.
• Move farther from center to go faster in either direction.
• Return to BAIL RELEASE (neutral) to stop.
ic0014c.tif
ic0013c.tif
