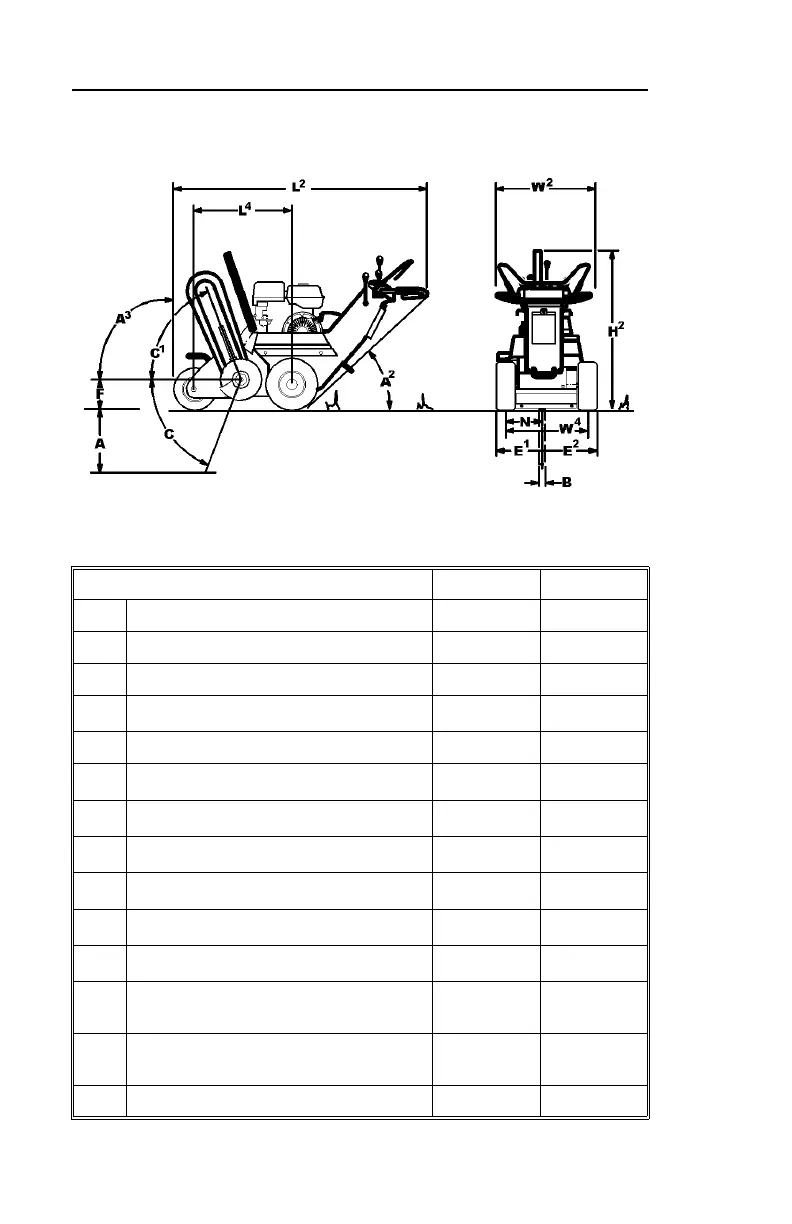

64 1030/1230 - SPECIFICATIONS
1230
64 1030/1230 - SPECIFICATIONS
1230
1230
DIMENSIONS U.S. METRIC
A Trench depth, maximum 36 in 915 mm
B Trench width 4.3-6 in 110-150 mm
C Boom travel down 60° 60°
C
1
Boom travel up 47° 47°
F Headshaft height--digging chain 8.60 in 220 mm
L
2
Length 88 in 2.2 m
W
2
Width 32 in 810 mm
H
2
Height 47 in 1.2 m
W
4
Tread 26 in 660 mm
A
3
Angle of departure 65° 65°
L
4
Wheelbase 32 in 810 mm
E
1
Centerline trench to outside edge of
machine, left
15 in 381 mm
E
2
Centerline trench to outside edge of
machine, right
17 in 432 mm
N Spoil discharge reach 10.6 in 270 mm
1230
DIMENSIONS U.S. METRIC
A Trench depth, maximum 36 in 915 mm
B Trench width 4.3-6 in 110-150 mm
C Boom travel down 60° 60°
C
1
Boom travel up 47° 47°
F Headshaft height--digging chain 8.60 in 220 mm
L
2
Length 88 in 2.2 m
W
2
Width 32 in 810 mm
H
2
Height 47 in 1.2 m
W
4
Tread 26 in 660 mm
A
3
Angle of departure 65° 65°
L
4
Wheelbase 32 in 810 mm
E
1
Centerline trench to outside edge of
machine, left
15 in 381 mm
E
2
Centerline trench to outside edge of
machine, right
17 in 432 mm
N Spoil discharge reach 10.6 in 270 mm
