76 410sx - DRILLING ATTACHMENT
Add Rod
76 410sx - DRILLING ATTACHMENT
Add Rod
Add Rod
1. Use control to stop drilling attachment rotation.
2. Use ground drive controls to back up unit 6” (150 mm) to
loosen drill rod in ground.
3. Disconnect drill rod in ground.
4. Use ground drive controls to move unit away from bore.
5. Add one drill rod to continue bore.
• Have a helper direct unit operator to align drilling
attachment with new rod and stop when drilling attachment
and rod are 1” (25 mm) apart.
• Have a helper lightly hold rod and direct unit operator to
move unit forward slowly.
• As soon as rod begins to engage drilling attachment, have
helper release rod and move hands and arms clear of
drilling attachment.
JOINT DISASSEMBLY

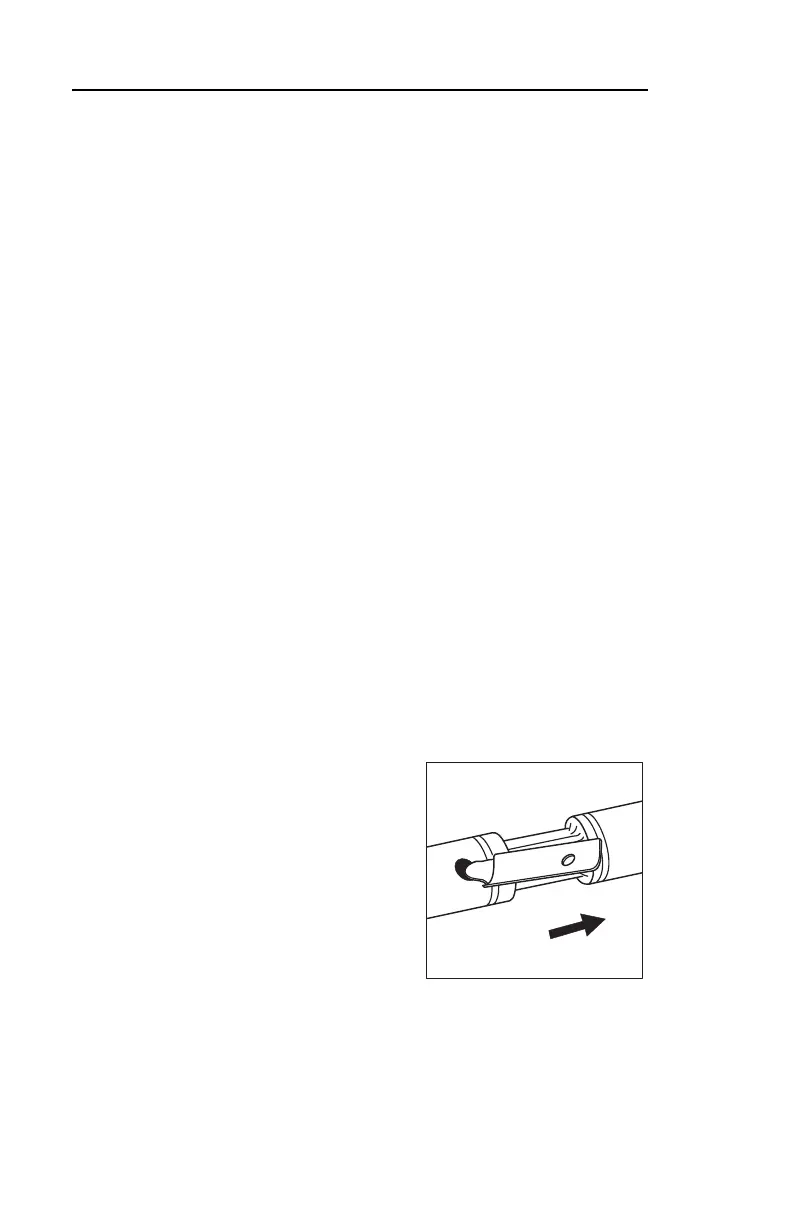

To separate slip-latch couplers, use
special tool to press tab through hole
in joint and then pull stems apart.
Add Rod
1. Use control to stop drilling attachment rotation.
2. Use ground drive controls to back up unit 6” (150 mm) to
loosen drill rod in ground.
3. Disconnect drill rod in ground.
4. Use ground drive controls to move unit away from bore.
5. Add one drill rod to continue bore.
• Have a helper direct unit operator to align drilling
attachment with new rod and stop when drilling attachment
and rod are 1” (25 mm) apart.
• Have a helper lightly hold rod and direct unit operator to
move unit forward slowly.
• As soon as rod begins to engage drilling attachment, have
helper release rod and move hands and arms clear of
drilling attachment.
JOINT DISASSEMBLY
To separate slip-latch couplers, use
special tool to press tab through hole
in joint and then pull stems apart.
